Drive Motor Monitoring
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Drive Motor Monitoring

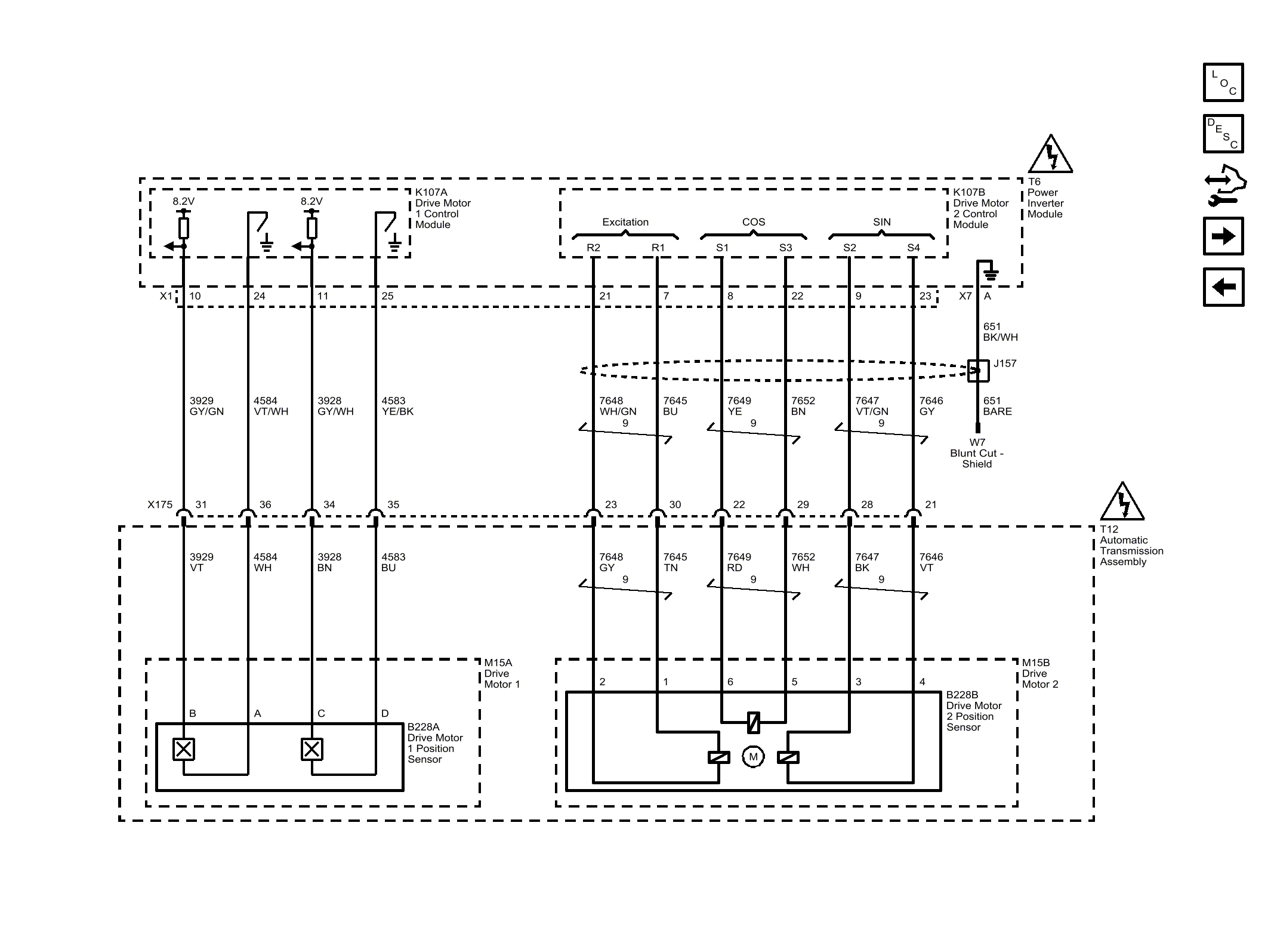

Fig 1: Drive Motor Monitoring
Courtesy of GENERAL MOTORS COMPANY
