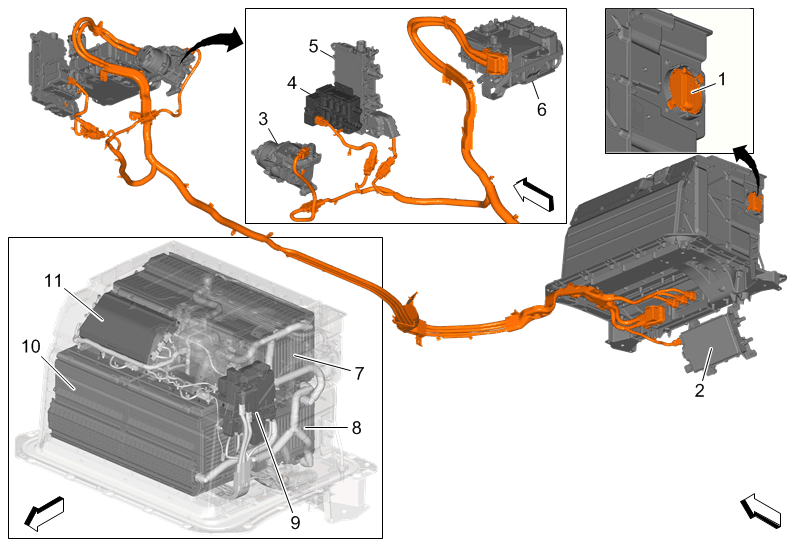

Hybrid Energy Storage Component Views
| Callout | Component Name |
|---|---|
| 1 | S15 Manual Service Disconnect |
| 2 | T18 Battery Charger |
| 3 | G1 A/C Compressor |
| 4 | K10 Coolant Heater |
| 5 | K1 14V Power Module |
| 6 | T6 Power Inverter Module |
| 7 | C4B Hybrid/EV Battery Section 2 |
| 8 | C4C Hybrid/EV Battery Section 3 |
| 9 | A28 Hybrid/EV Battery Contactor Assembly |
| 10 | C4A Hybrid/EV Battery Section 1 |
| 11 | K16 Battery Energy Control Module |
