Battery Negative Strap Replacement

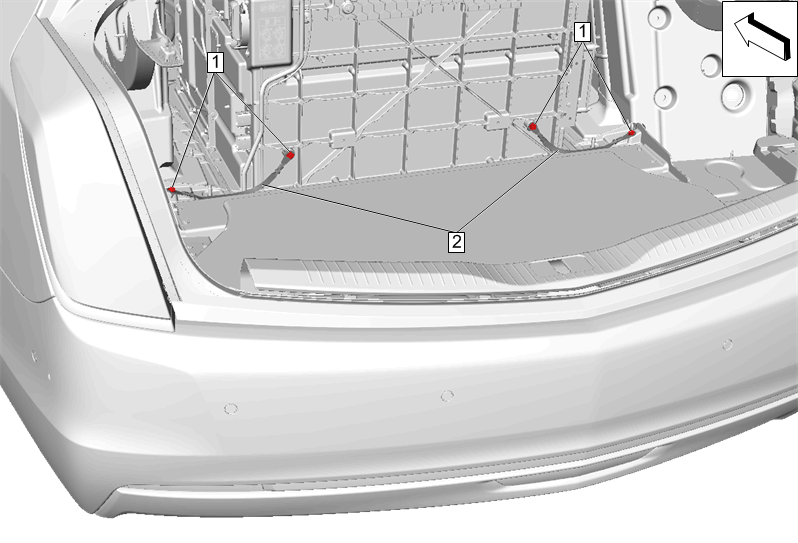

Fig 1: Battery Negative Strap
GM4481276Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Drive Motor Battery Cover Replacement (With HP9)
1 Body Ground Strap Bolt [4x]
CAUTION: Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)
2 Battery Negative Strap [2x]
