Mode Control Cam Alignment

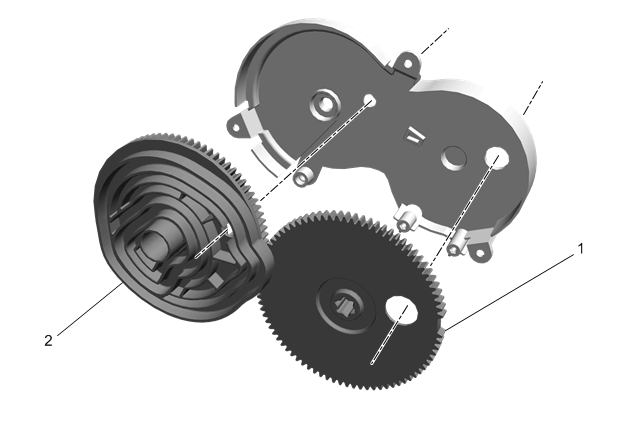

Fig 1: Mode Control Cam
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Mode Valve Actuator Gear
Procedure
Index the mode valve actuator gear window with the heater and air conditioning mode control cam cover window.
2
Mode Valve Cam
Procedure
Index the mode valve cam window with the heater and air conditioning mode control cam cover window.
