Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment

Ensure that the steering wheel is set in a straight ahead position.

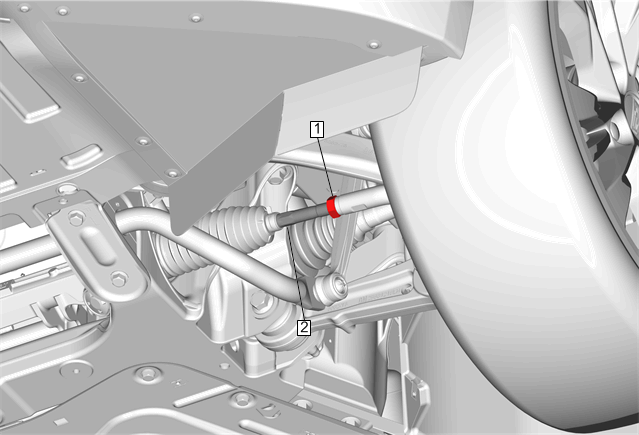

Fig 1: Steering Linkage Inner Tie Rod Nut
Courtesy of GENERAL MOTORS COMPANY
Loosen the steering linkage inner tie rod nut (1).
Adjust the toe to specification by turning the steering linkage inner tie rod (2). Refer to Wheel Alignment Specifications
Tighten the steering linkage inner tie rod nut (1) to 75 N.m (55 lb ft).
CAUTION: Refer to Fastener Caution .
The steering angle sensor must be re-centered. Refer to Steering Wheel Angle Sensor Centering
