Short Range Radar Sensor Replacement

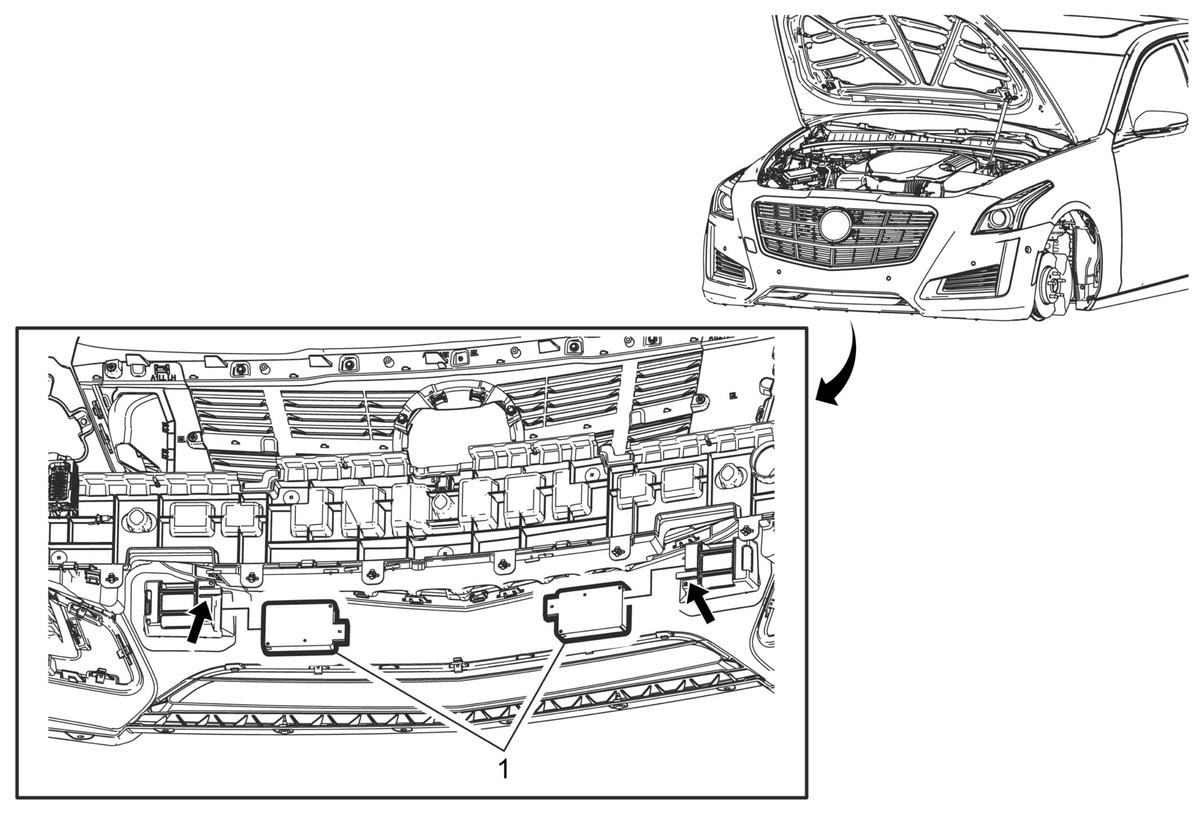

Fig 1: Short Range Radar Sensor

GM3618286

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (CTS)Front Bumper Fascia Replacement (CTS-V) .

1

Short Range Radar Sensor (Qty: 2)

Procedure

Place the front bumper fascia face down on a clean protected surface.
Disconnect the electrical connector.
Release the tab retainer (arrow) and slide the left hand side object sensor to the right or slide the right hand side object sensor the left and remove.
For programming and set up, refer to Control Module References .
