Video Processing Module Bracket Replacement

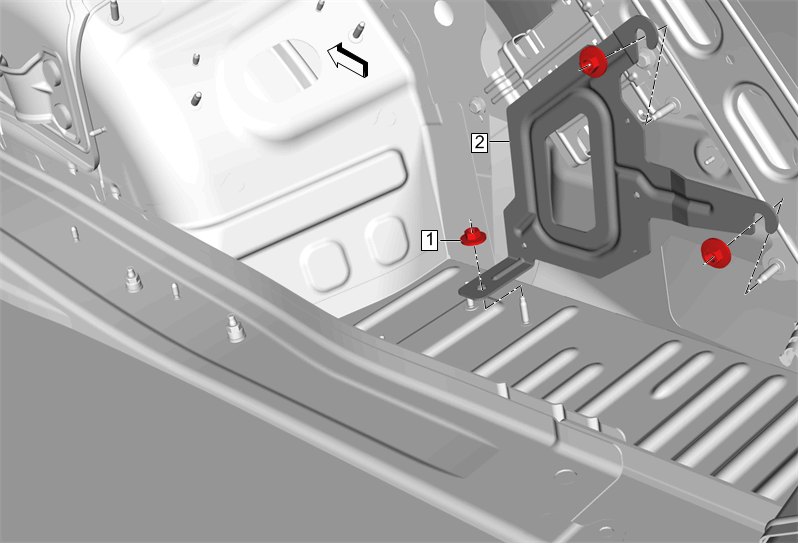

Fig 1: Video Processing Module Bracket
GM4176797Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Video Processing Module Replacement
1 Video Processing Module Bracket Nut (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Video Processing Module Bracket
