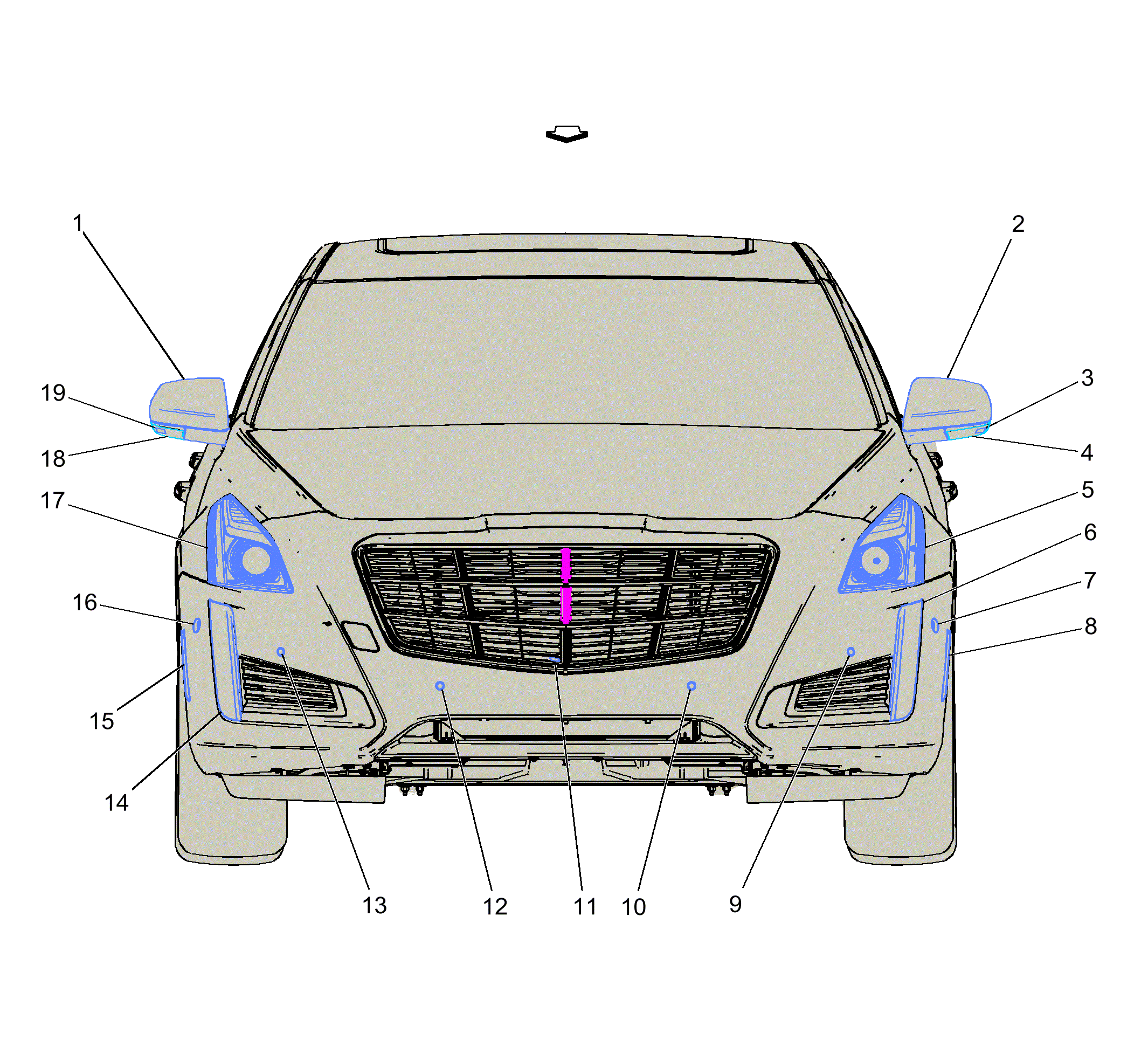

Front of Vehicle Components
Front of Vehicle Components
| Items |
|---|
| 1. A9B Outside Rearview Mirror - Passenger |
| 2. A9A Outside Rearview Mirror - Driver |
| 3. B225L Sideview Camera - Left (UVH) B225L Sideview Camera - Left (UVH) |
| 4. E4Y Turn Signal Repeater Lamp - Left (DR2/DR4) E4Y Turn Signal Repeater Lamp - Left (DR2 or DR4) |
| 5. E13LA Headlamp Assembly - Left |
| 6. E69L Multifunction Lamp Assembly - Front Fascia Left |
| 7. B306K Parking Assist Sensor - Side Left Front (UFQ) B166LF Advanced Parking Assist Side Object Sensor - Left Front |
| 8. E2LF Side Marker Lamp - Left Front (TUJ) E2LF Side Marker Lamp - Left Front (TUJ+LT4)E2LF Side Marker Lamp - Left Front (TUJ-LT4) |
| 9. B306A Parking Assist Sensor - Front Left Outer (UFQ) B306A Parking Assist Sensor - Front Left Outer |
| 10. B306B Parking Assist Sensor - Front Left Middle (UFQ) B306B Parking Assist Sensor - Front Left Middle |
| 11. B174G Frontview Camera - Grille (UVH) B174G Frontview Camera - Grille |
| 12. B306C Parking Assist Sensor - Front Right Middle (UFQ) B306C Parking Assist Sensor - Front Right Middle |
| 13. B306D Parking Assist Sensor - Front Right Outer (UFQ) B306D Parking Assist Sensor - Front Right Outer |
| 14. E69R Multifunction Lamp Assembly - Front Fascia Right |
| 15. E2RF Side Marker Lamp - Right Front (TUJ) E2RF Side Marker Lamp - Right Front (TUJ+LT4)E2RF Side Marker Lamp - Right Front (TUJ-LT4) |
| 16. B306L Parking Assist Sensor - Side Right Front (UFQ) B166RF Advanced Parking Assist Side Object Sensor - Right Front |
| 17. E13RA Headlamp Assembly - Right |
| 18. E4Z Turn Signal Repeater Lamp - Right (DR2/DR4) E4Z Turn Signal Repeater Lamp - Right (DR2 or DR4) |
| 19. B225R Sideview Camera - Right (UVH) B225R Sideview Camera - Right (UVH) |
