Engine Components - Front (LF3)

Items
1. B23A Camshaft Position Sensor - Bank 1 Exhaust (LF3/LGX) B23A Camshaft Position Sensor - Bank 1 Exhaust (LF3)B23A Camshaft Position Sensor - Bank 1 Exhaust (LGX)
2. Q6A Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust (LF3/LGX) Q6A Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust (LF3)Q6A Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust (LGX)
3. Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake (LF3/LGX) Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake (LF3)Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake (LGX)
4. B23B Camshaft Position Sensor - Bank 1 Intake (LF3/LGX) B23B Camshaft Position Sensor - Bank 1 Intake (LF3)B23B Camshaft Position Sensor - Bank 1 Intake (LGX)
5. B23D Camshaft Position Sensor - Bank 2 Intake (LF3/LGX) B23D Camshaft Position Sensor - Bank 2 Intake (LF3)B23D Camshaft Position Sensor - Bank 2 Intake (LGX)
6. Q6D Camshaft Position Actuator Solenoid Valve - Bank 2 Intake (LF3/LGX) Q6D Camshaft Position Actuator Solenoid Valve - Bank 2 Intake (LF3)Q6D Camshaft Position Actuator Solenoid Valve - Bank 2 Intake (LGX)
7. B23C Camshaft Position Sensor - Bank 2 Exhaust (LF3/LGX) B23C Camshaft Position Sensor - Bank 2 Exhaust (LF3)B23C Camshaft Position Sensor - Bank 2 Exhaust (LGX)
8. Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust (LF3/LGX) Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust (LF3)Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust (LGX)
9. M9 Brake Booster Pump Motor M9 Brake Booster Pump Motor (LF3)M9 Brake Booster Pump Motor (LT4)

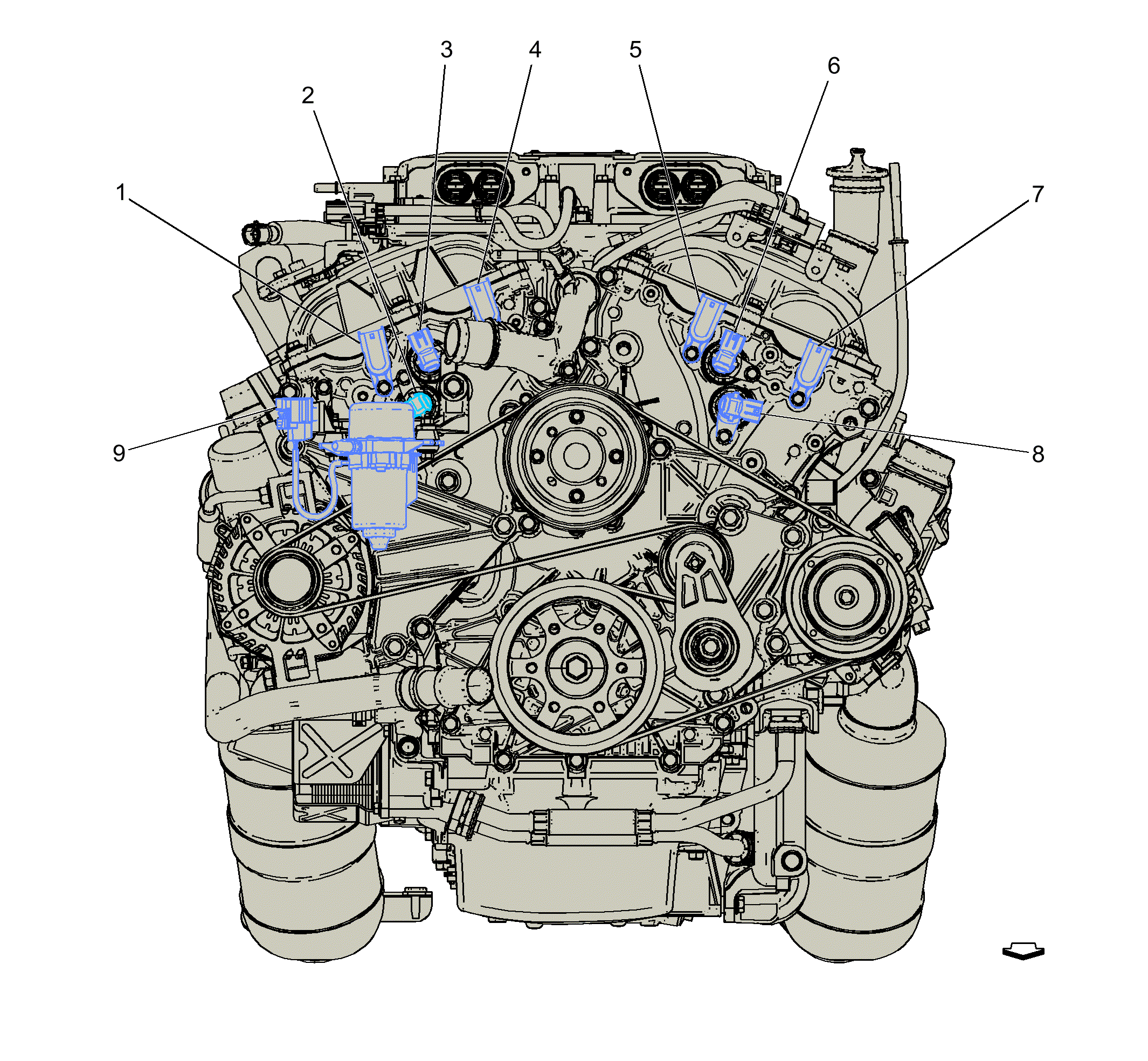

Fig 1: Engine Components - Front (LF3)

Courtesy of GENERAL MOTORS COMPANY
