Collision Avoidance - Serial Data Modules and Long Range Radar (UGN)

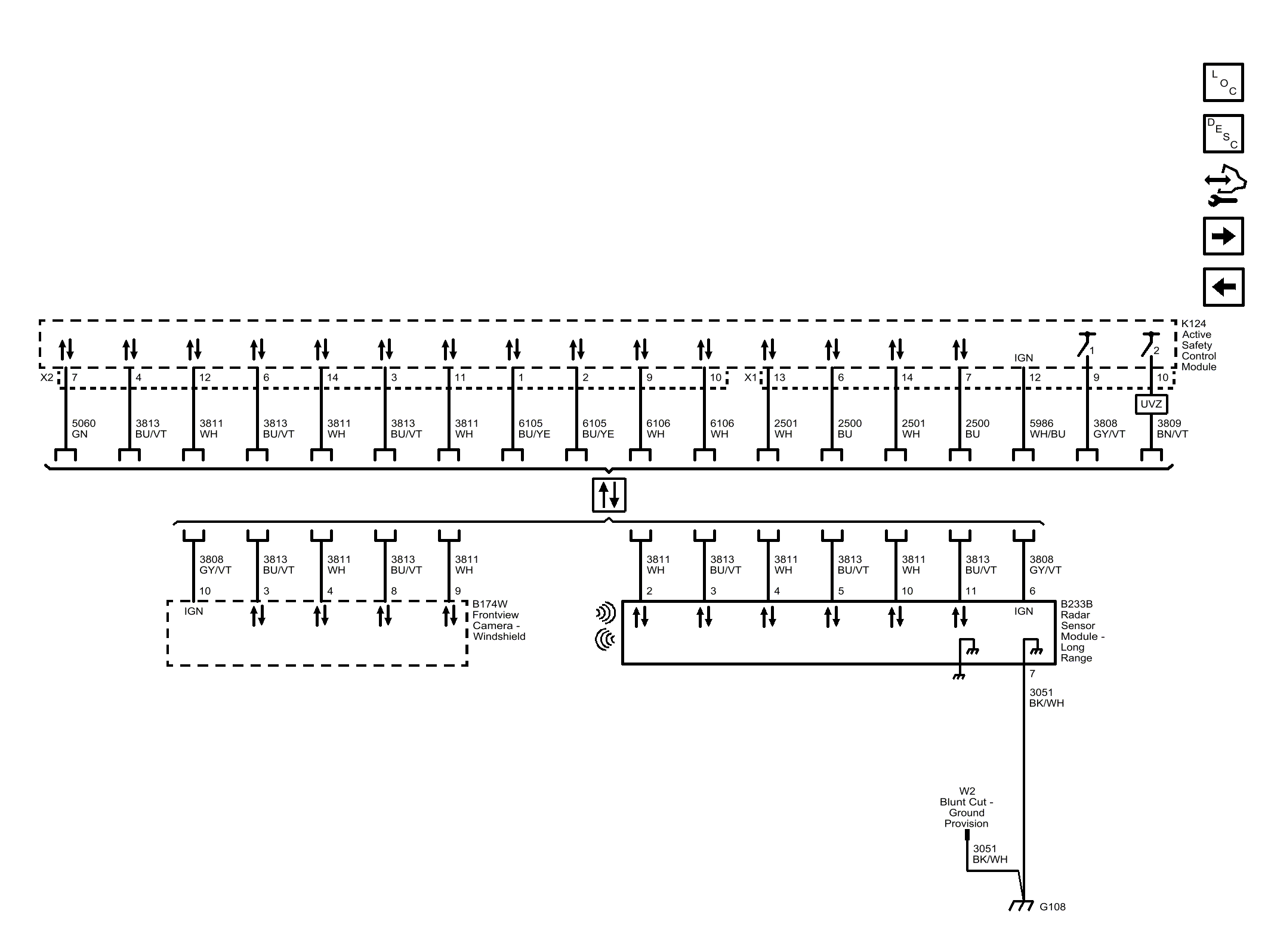

Fig 1: Collision Avoidance - Serial Data Modules and Long Range Radar (UGN)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
