Collision Avoidance - Serial Data Short Range Radars (UVZ)

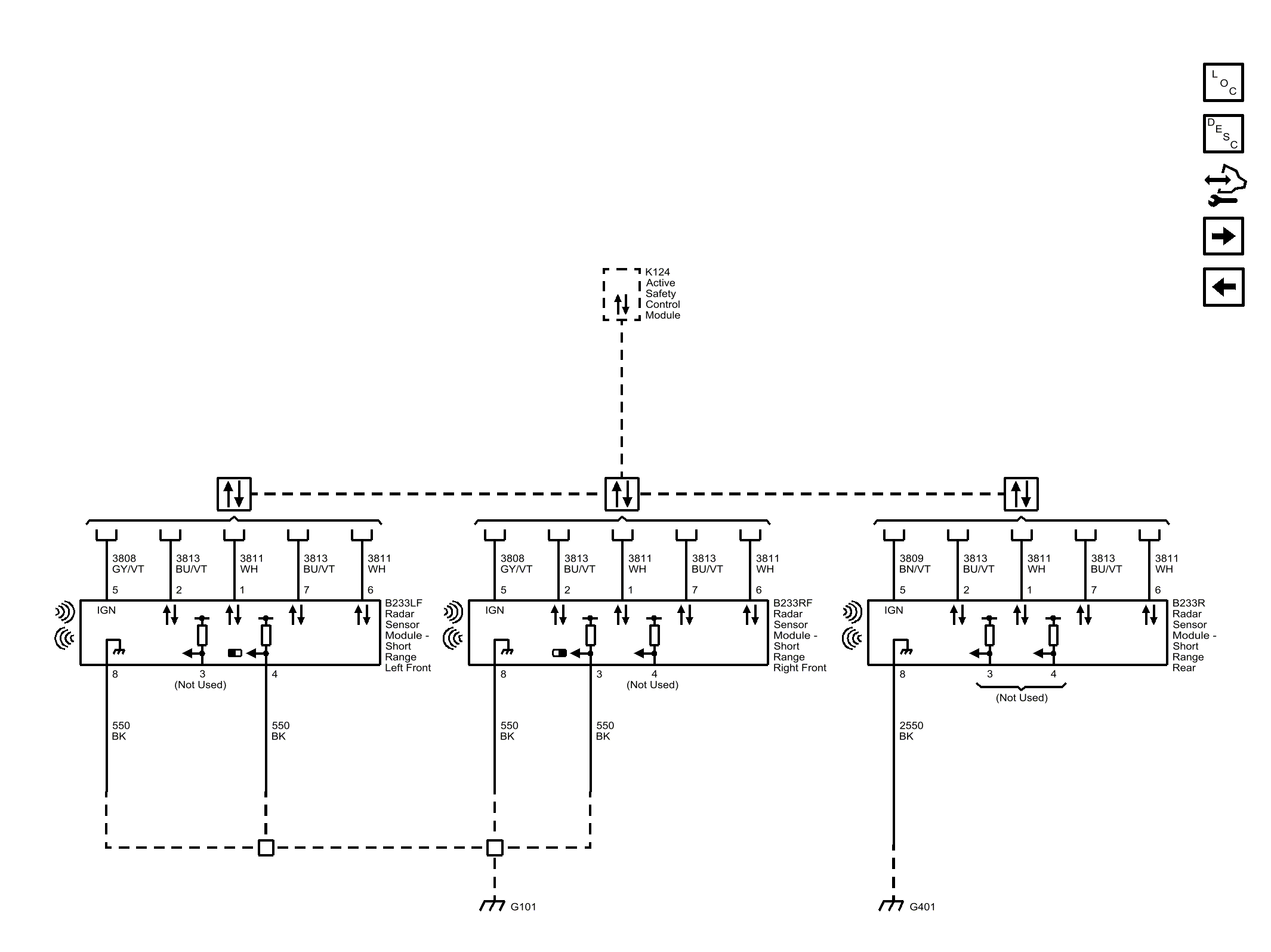

Fig 1: Collision Avoidance - Serial Data Short Range Radars (UVZ)
GM4493559Courtesy of GENERAL MOTORS COMPANY
