Park Assist - Power, Ground, Serial Data and Control

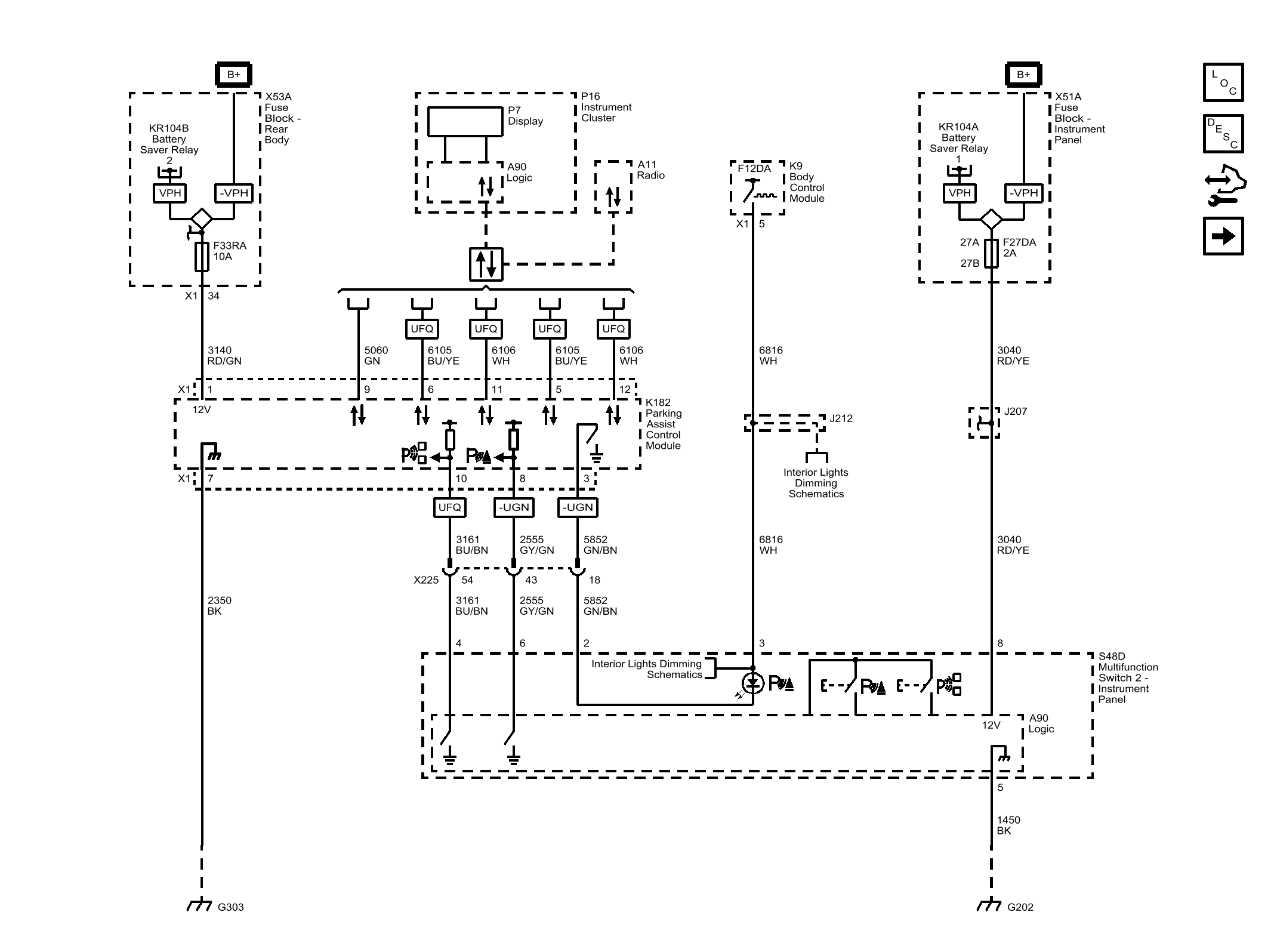

Fig 1: Park Assist - Power, Ground, Serial Data and Control
GM4493545Courtesy of GENERAL MOTORS COMPANY
