Installation Procedure

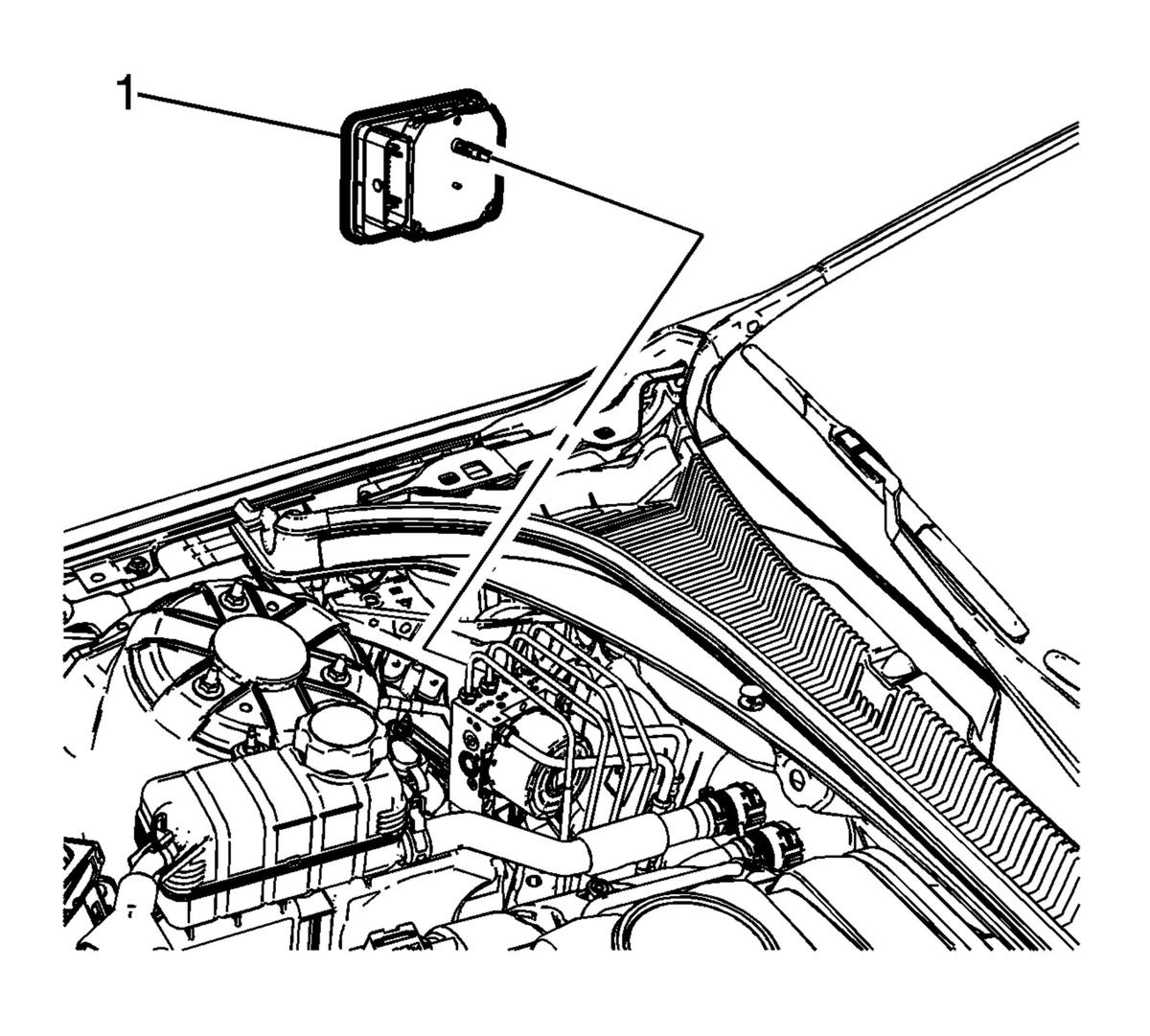

    Fig 1: EBCM
    GM3425145Courtesy of GENERAL MOTORS COMPANY
  1. Install the EBCM (1) to the BPMV.

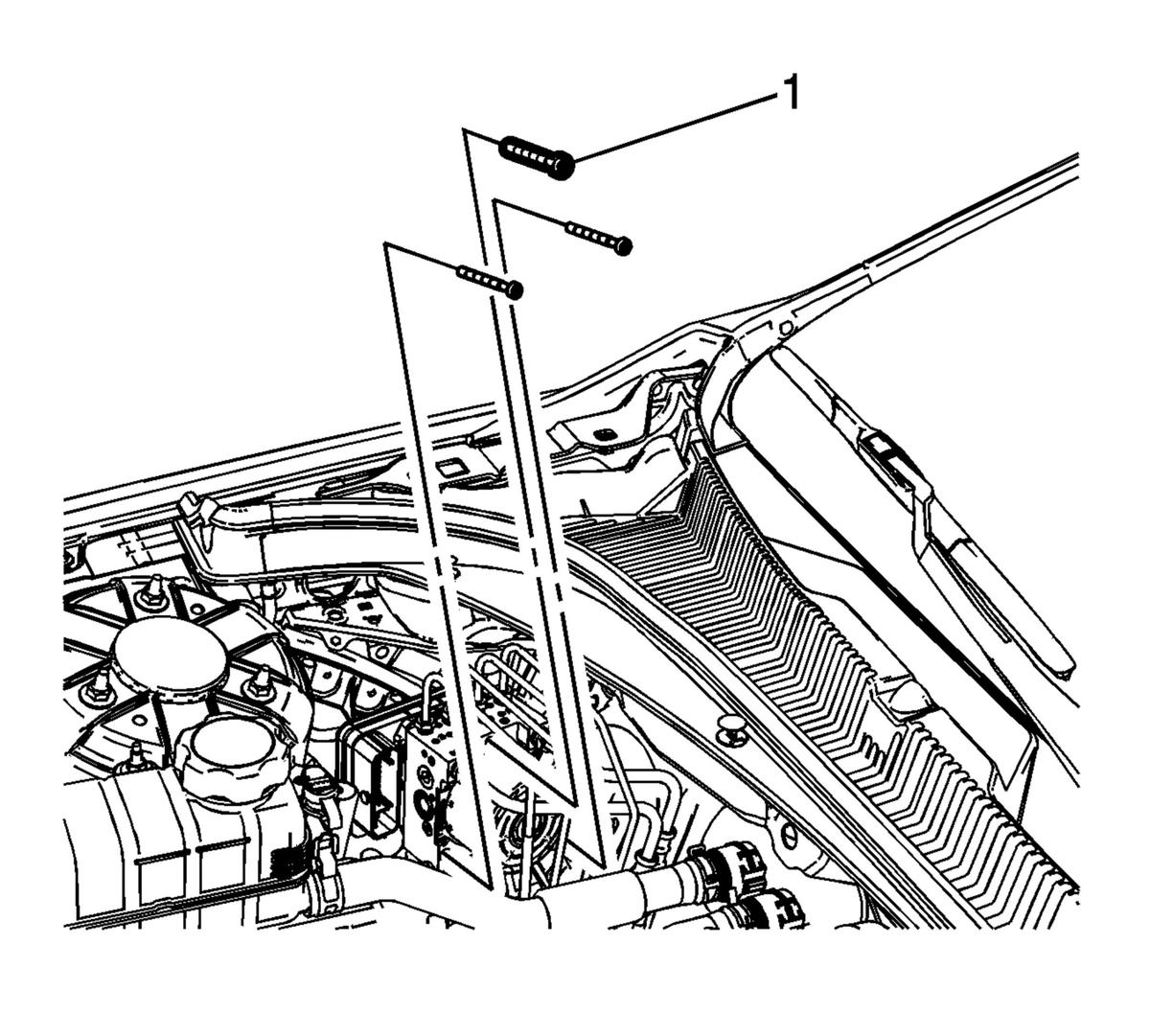

    2. Fig 2: EBCM Bolts
    GM3425144Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the EBCM bolts (1) and tighten to 6 N.m (53 lb in).
  3. Connect the EBCM electrical connector.

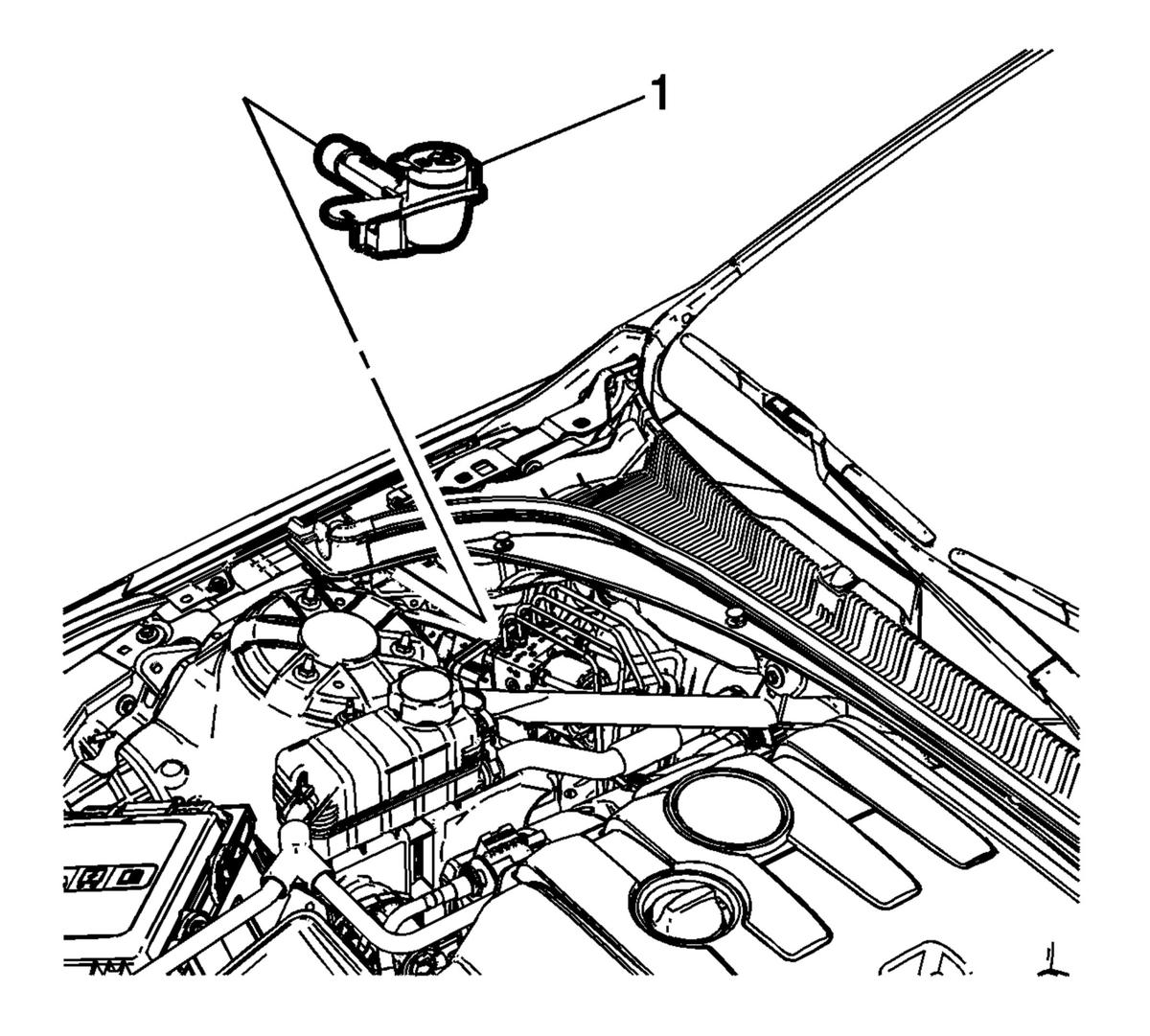

    4. Fig 3: Windshield Washer Solvent Container Filler Tube
    GM3425143Courtesy of GENERAL MOTORS COMPANY
  4. Install the windshield washer solvent container filler tube (1). Windshield Washer Solvent Container Filler Tube Replacement
  5. Program the EBCM. Control Module References
