Installation Procedure

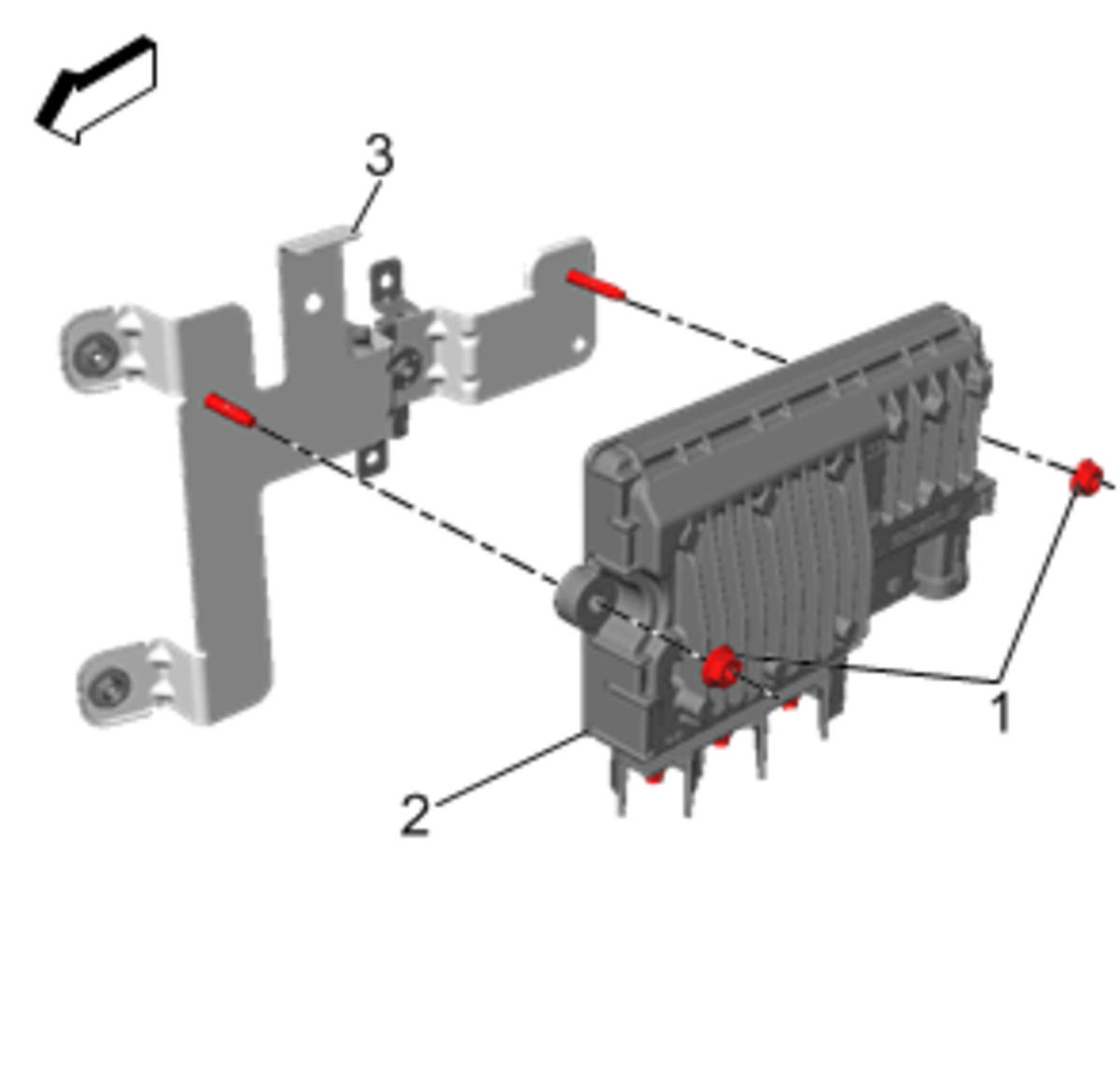

- Install Multifunction Energy Storage Capacitor Control Module (2)
- Install Multifunction Energy Storage Capacitor Control Module Nut (1) (Qty: 2) and tighten to 9 N.m (80 lb in)

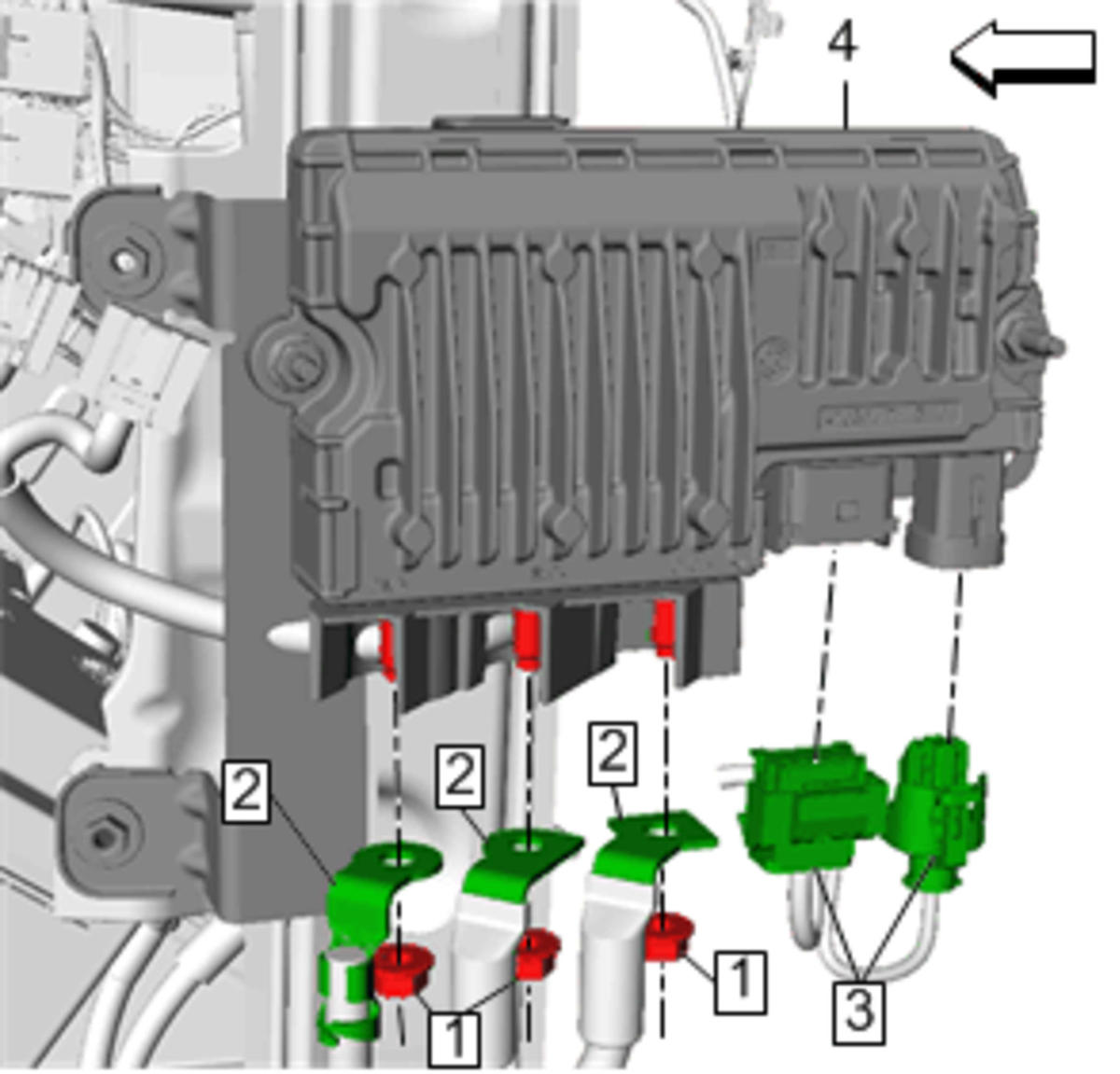

- Install Auxiliary Generator Battery Jumper Cable (2) (Qty: 3)
- Install Auxiliary Generator Battery Jumper Cable Nut (1) (Qty: 3) and tighten to 12 N.m (106 lb in)
- Connect the electrical connectors (3)

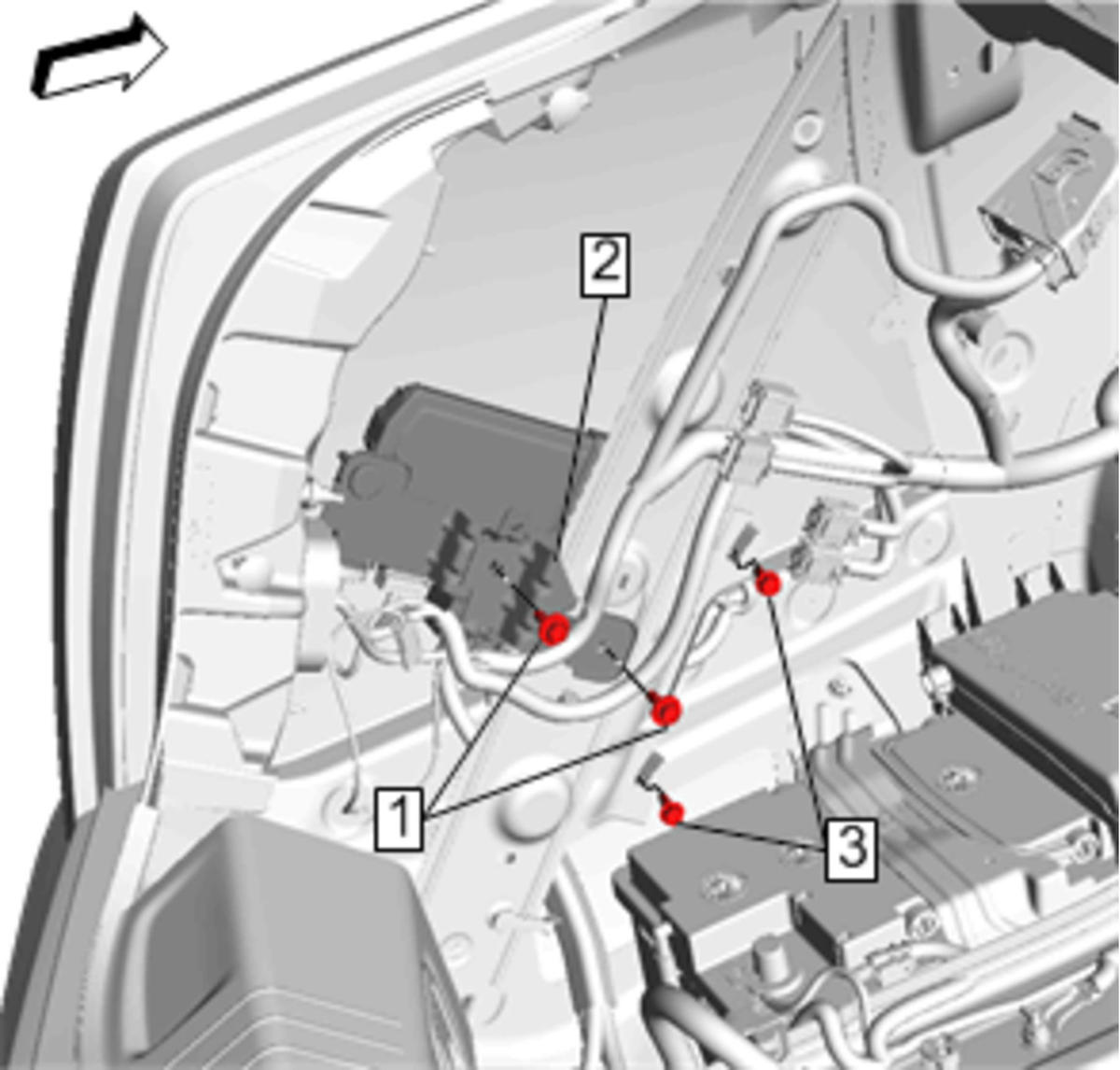

- Install Multifunction Energy Storage Capacitor Control Module Bracket (2)
- Install Multifunction Energy Storage Capacitor Control Module Bracket Bolt (1) (Qty: 2) and tighten to 9 N.m (80 lb in)
- Install Multifunction Energy Storage Capacitor Control Module Bracket Bolt (3) (Qty: 2) and tighten to 9 N.m

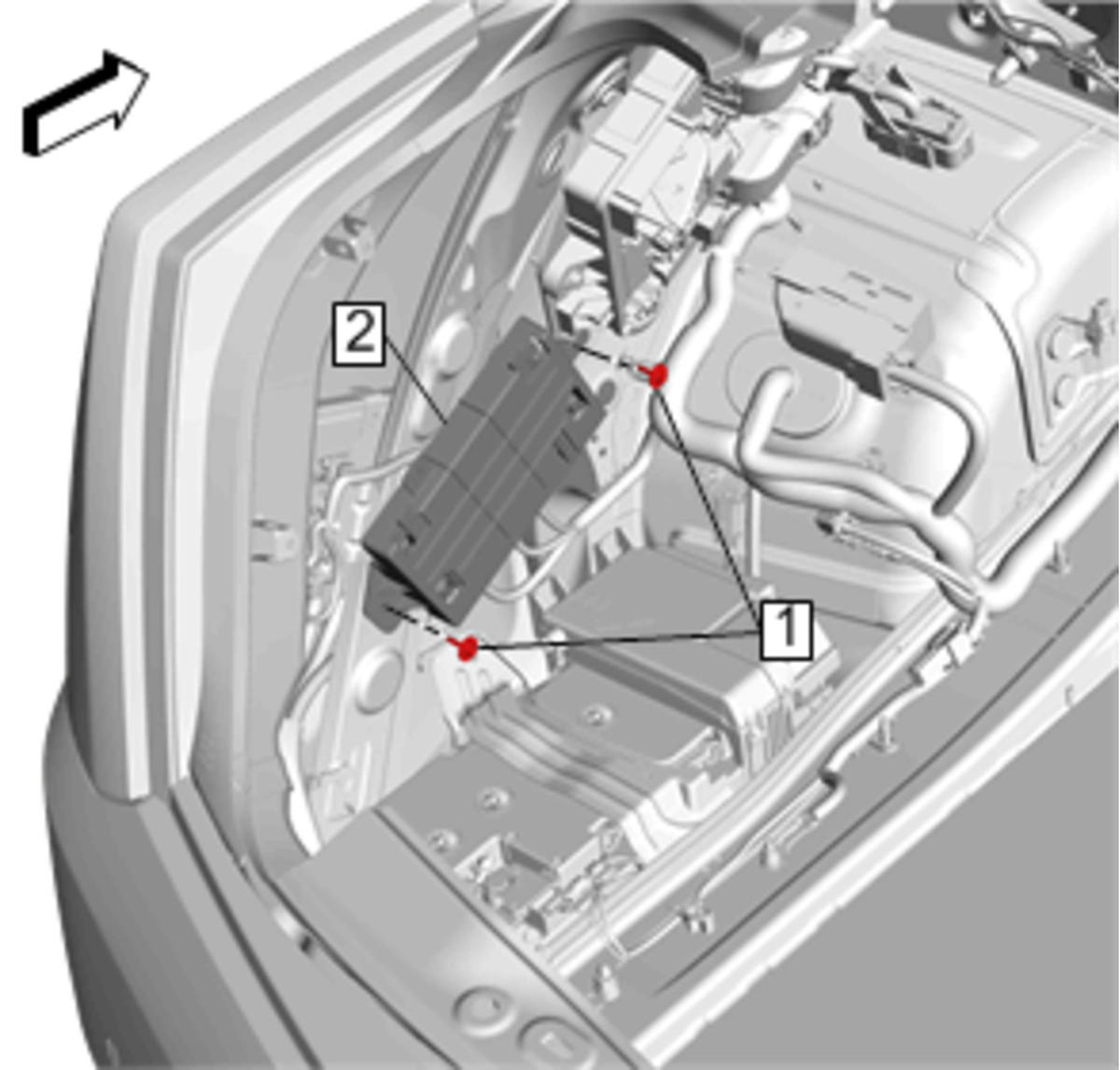

- { If equipped } Install Active Safety Control Module Bracket (2)
- { If equipped } Install Active Safety Control Module Bracket Bolt (1) and tighten to 2.5 N.m (22 lb in)
- Install Rear Compartment Side Trim Replacement - Left Side
- Connect the negative battery cable. Battery Negative Cable Disconnection and Connection (with KL9) .
- Perform Stop/Start Capacitor Control State Health Reset. Stop/Start Capacitor Control State of Health Reset
CAUTION:
Refer to Fastener Caution .
