Air Cleaner Element Replacement

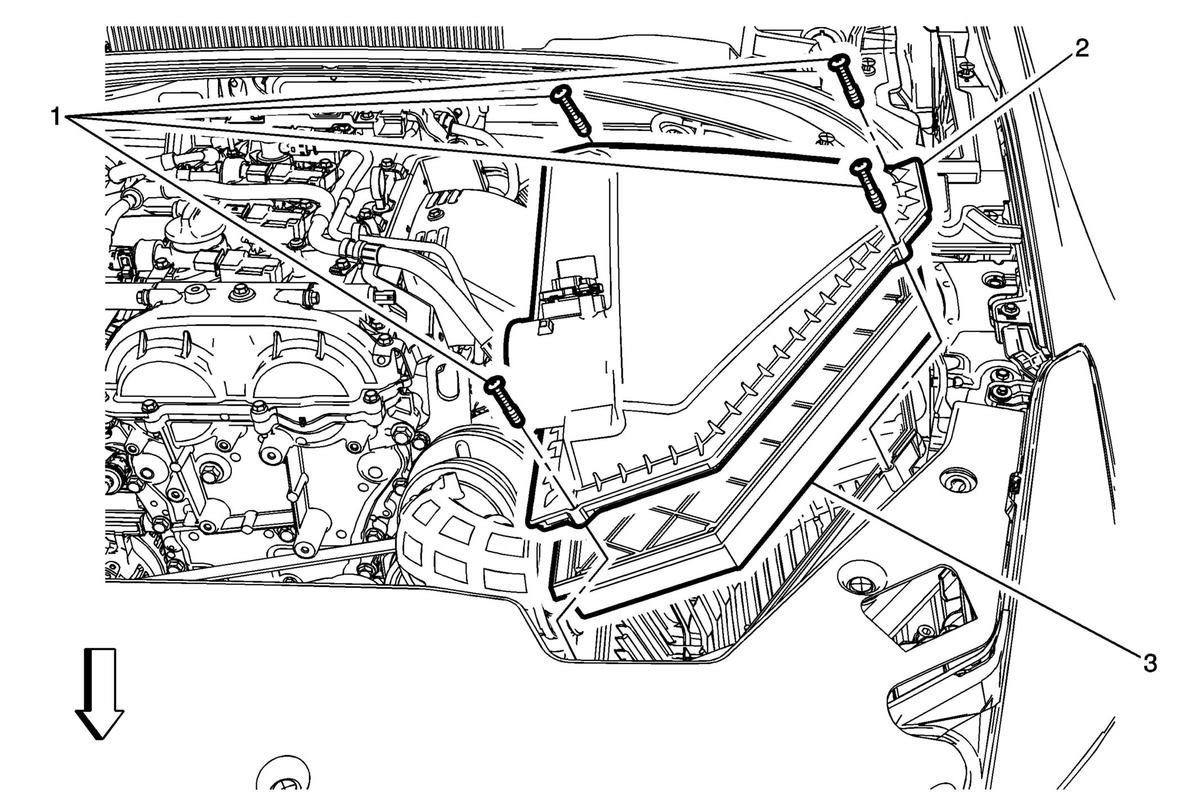

Fig 1: Air Cleaner Element
GM2834568Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Air Cleaner Assembly Fasteners (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
2.3 N.m (20.4 lb in)
2 Air Cleaner Upper Cover
3 Air Cleaner Element
