Installation Procedure

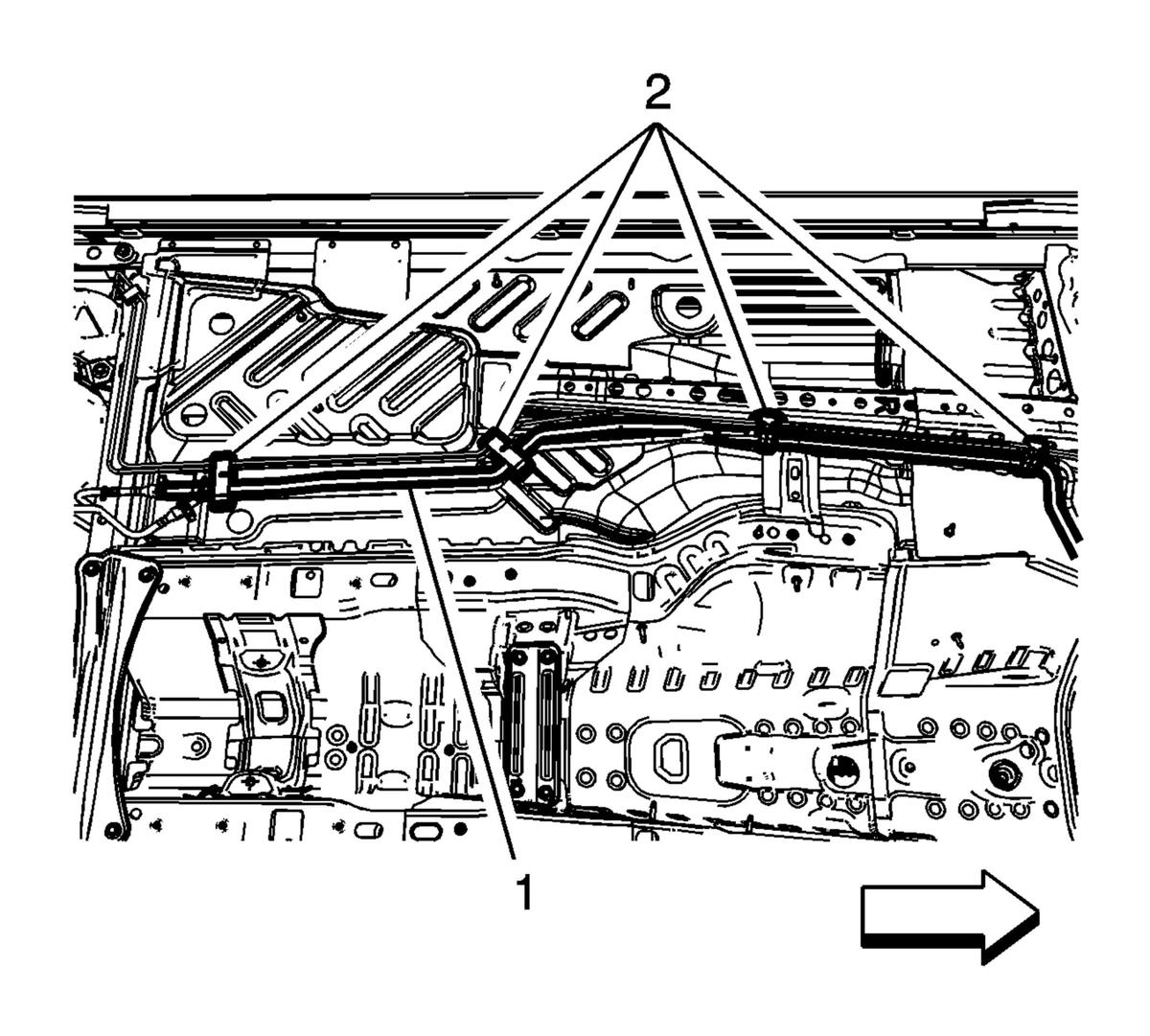

- Install the fuel feed pipe (1) to the vehicle.
- Connect the fuel feed pipe (1) and install to the retainers (2). Refer to Plastic Collar Quick Connect Fitting Service .
- Install the front body exhaust heat shield right side. Refer to Front Body Exhaust Heat Shield Replacement (Right)Front Body Exhaust Heat Shield Replacement (Left) .
- Install the underbody front air deflector right side. Refer to Underbody Front Air Deflector Replacement - Right Side .
- Lower the vehicle.

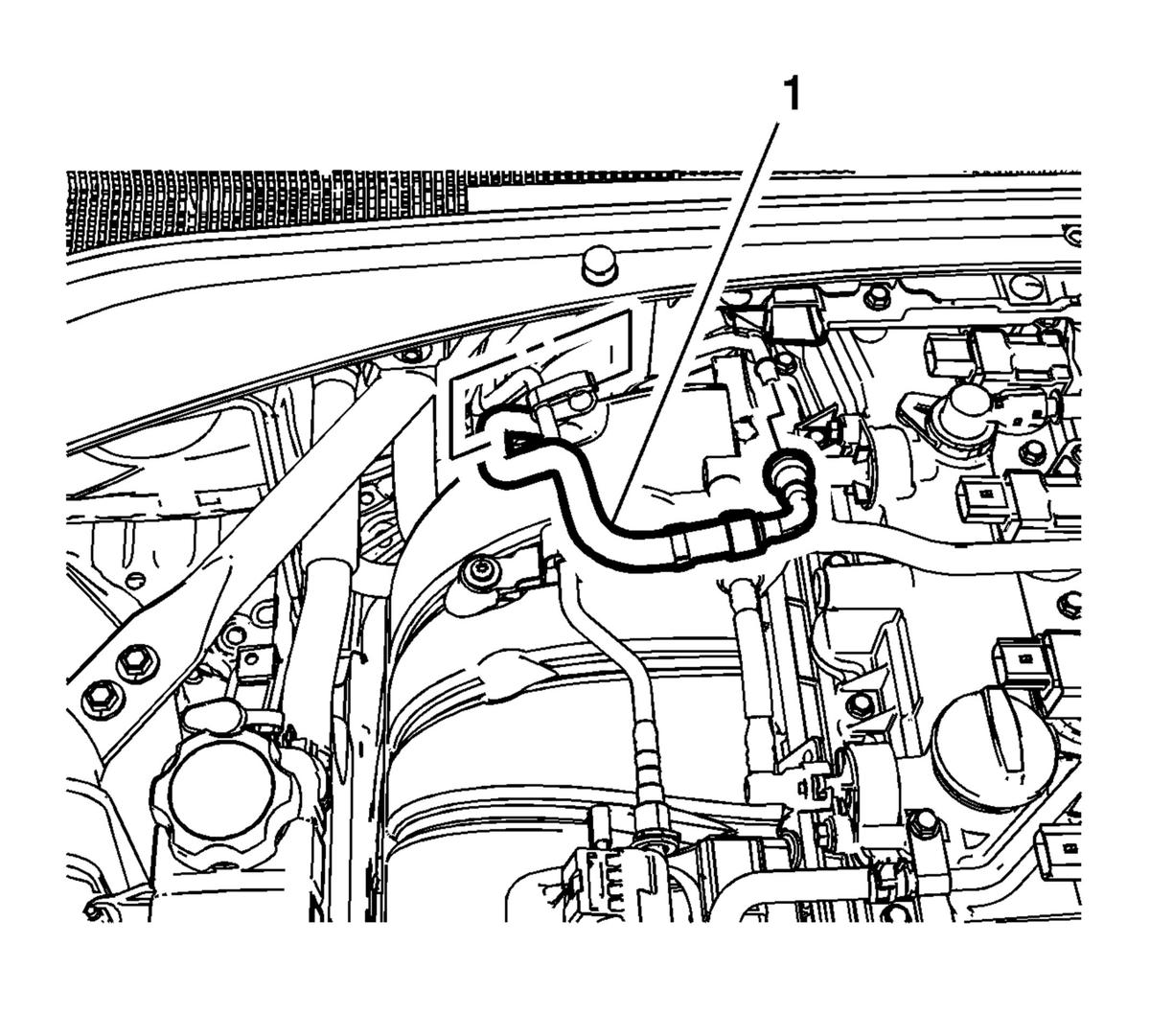

- Install the fuel feed pipe (1) to the engine and retainers. Refer to Metal Collar Quick Connect Fitting Service .
- Install the intake manifold cover. Refer to Intake Manifold Cover Replacement .
