Fuel Pump Cover Replacement

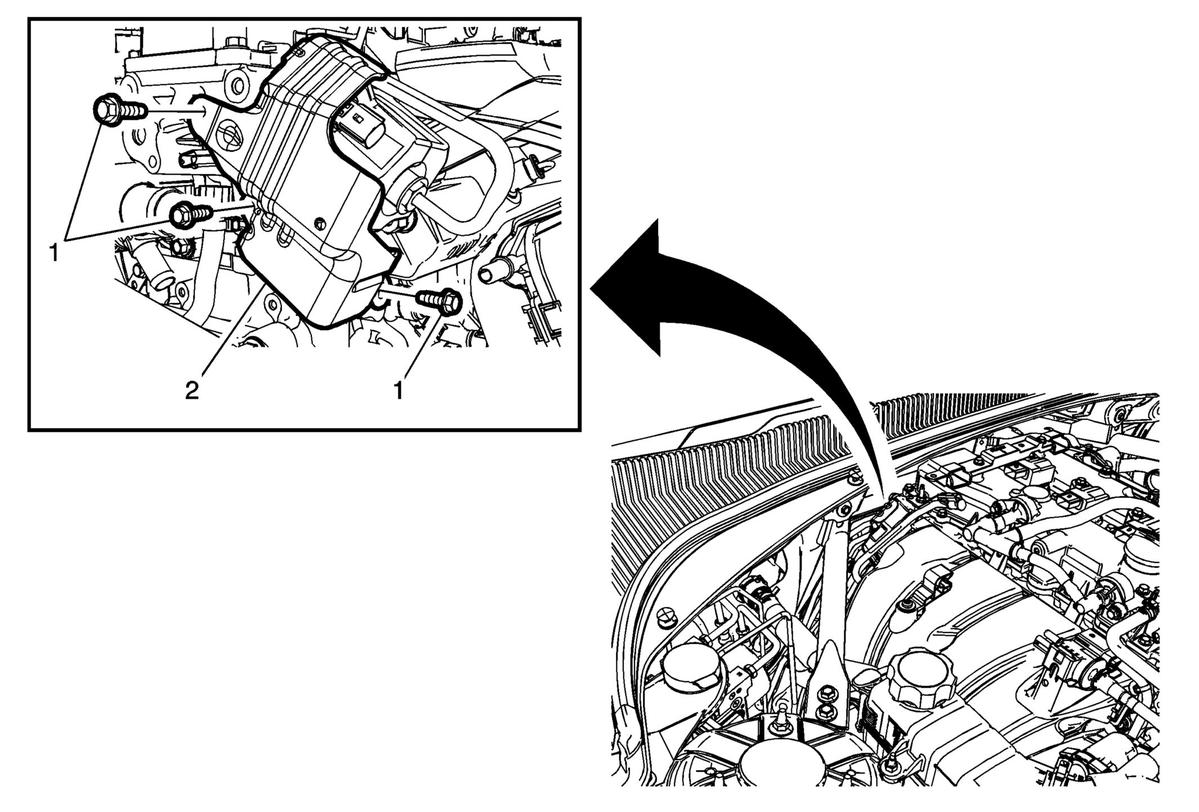

Fig 1: Fuel Pump Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement . Remove the plenum front panel. Refer to Plenum Front Panel Replacement . Remove the front end sheet metal diagonal brace. Refer to Front End Sheet Metal Diagonal Brace Replacement - Right Side (CTS)Front End Sheet Metal Diagonal Brace Replacement - Right Side (CTS-V) . Remove the outer fuel pump insulator. Refer to Fuel Pump Insulator Replacement (Inner) Fuel Pump Insulator Replacement (Outer) . Disconnect the radiator inlet pipe from the water outlet. Refer to Radiator Inlet Pipe Replacement (LTG) .
1	Fuel Pump Cover Fasteners (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Fuel Pump Cover Procedure Disconnect the electrical wiring harness connector from the fuel pump.

Callout

Component Name

Preliminary Procedure

Fuel Pump Cover Fasteners (Qty: 3)

CAUTION:

Tighten
10 N.m (89 lb in)

Fuel Pump Cover
Procedure
Disconnect the electrical wiring harness connector from the fuel pump.
