Removal Procedure

    WARNING:

    Refer to Gasoline/Gasoline Vapors Warning .

    WARNING:

    Refer to Safety Glasses Warning .

  1. Remove the fuel tank. Refer to Fuel Tank Replacement .
  2. Disconnect the fuel sender assembly electrical connector.

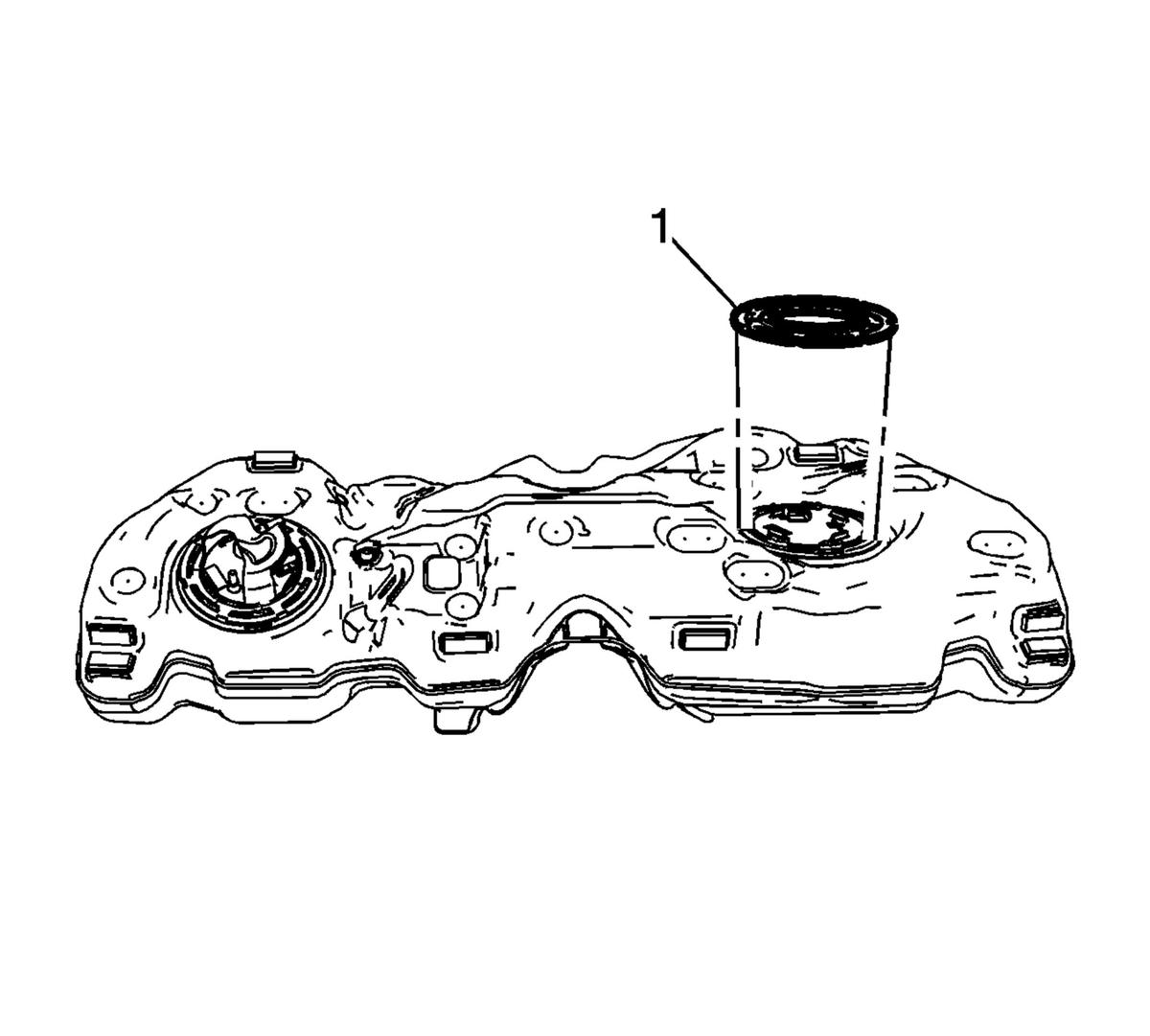

    3. Fig 1: Fuel Sender Assembly Lock Ring
    GM2811776Courtesy of GENERAL MOTORS COMPANY
  3. Use the CH 45722  wrench by turning counter clockwise and remove the lock ring (1).

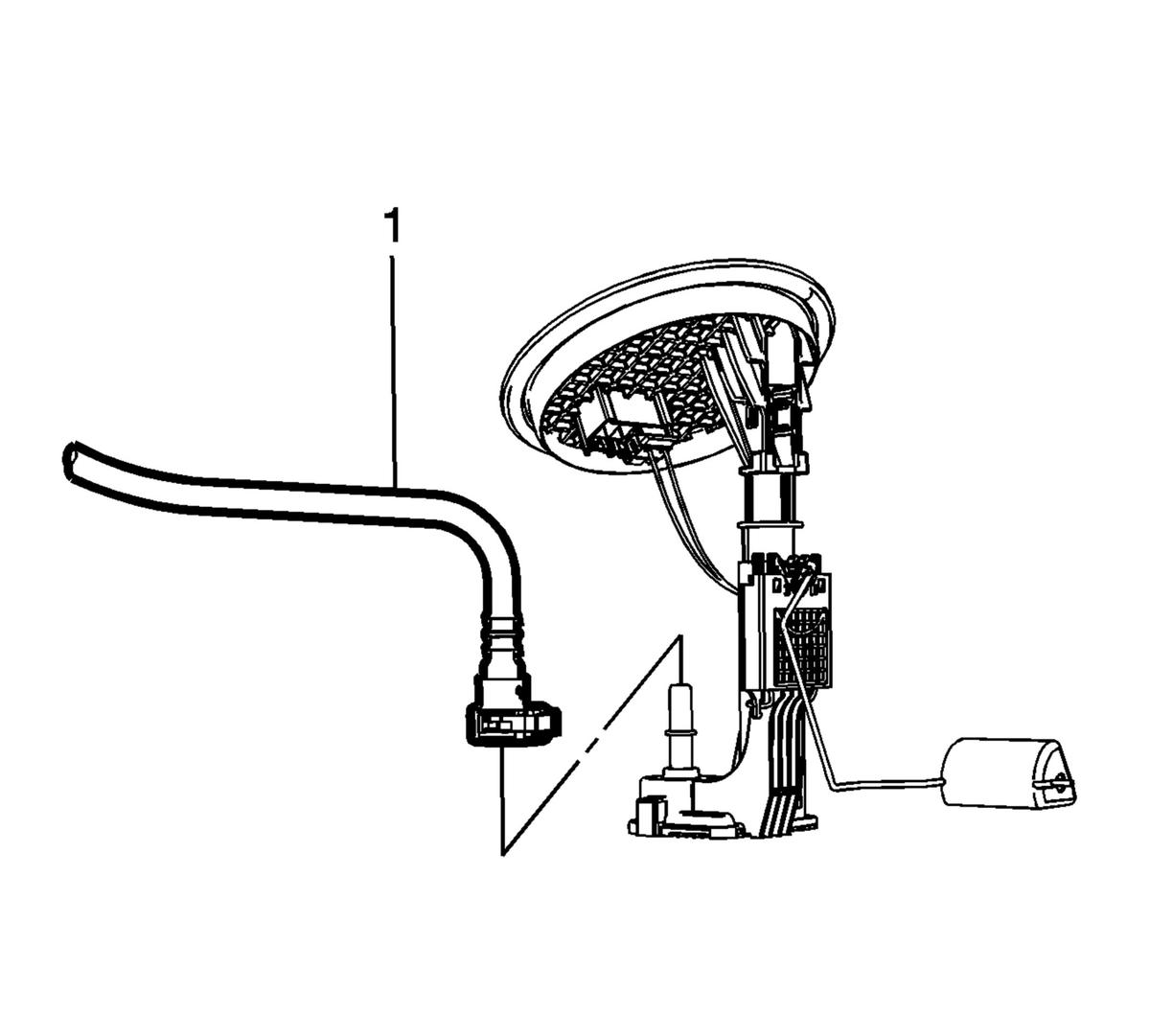

    4. Fig 2: Fuel Sender Assembly Transfer Hose
    GM2811762Courtesy of GENERAL MOTORS COMPANY
  4. Disconnect the fuel sender assembly transfer hose (1). Refer to Plastic Collar Quick Connect Fitting Service .

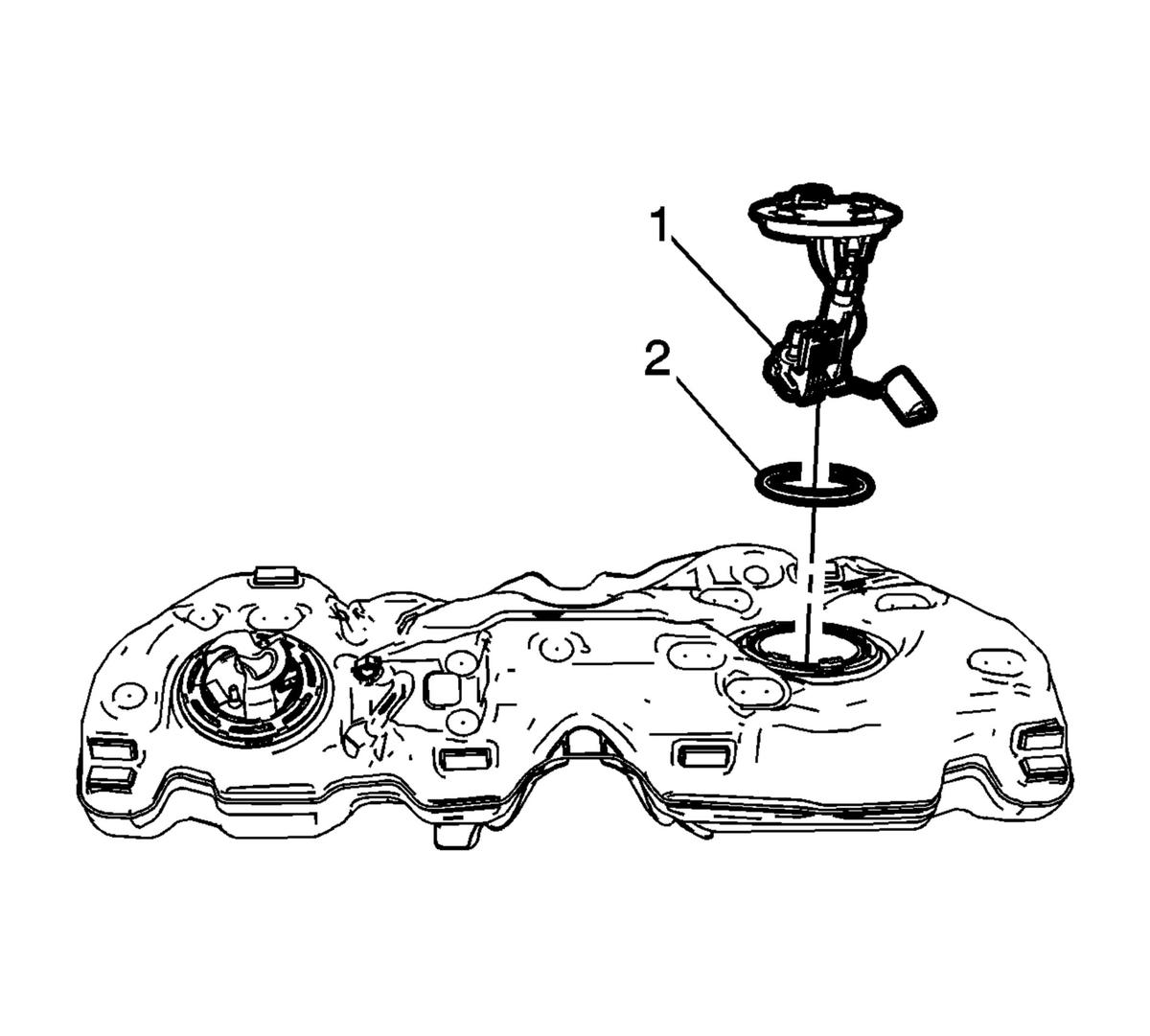

    5. Fig 3: Fuel Sender Assembly
    GM2811766Courtesy of GENERAL MOTORS COMPANY
  5. Remove the fuel sender assembly (1) and the O-ring (2).
