Fuel Tank Pressure Sensor Replacement

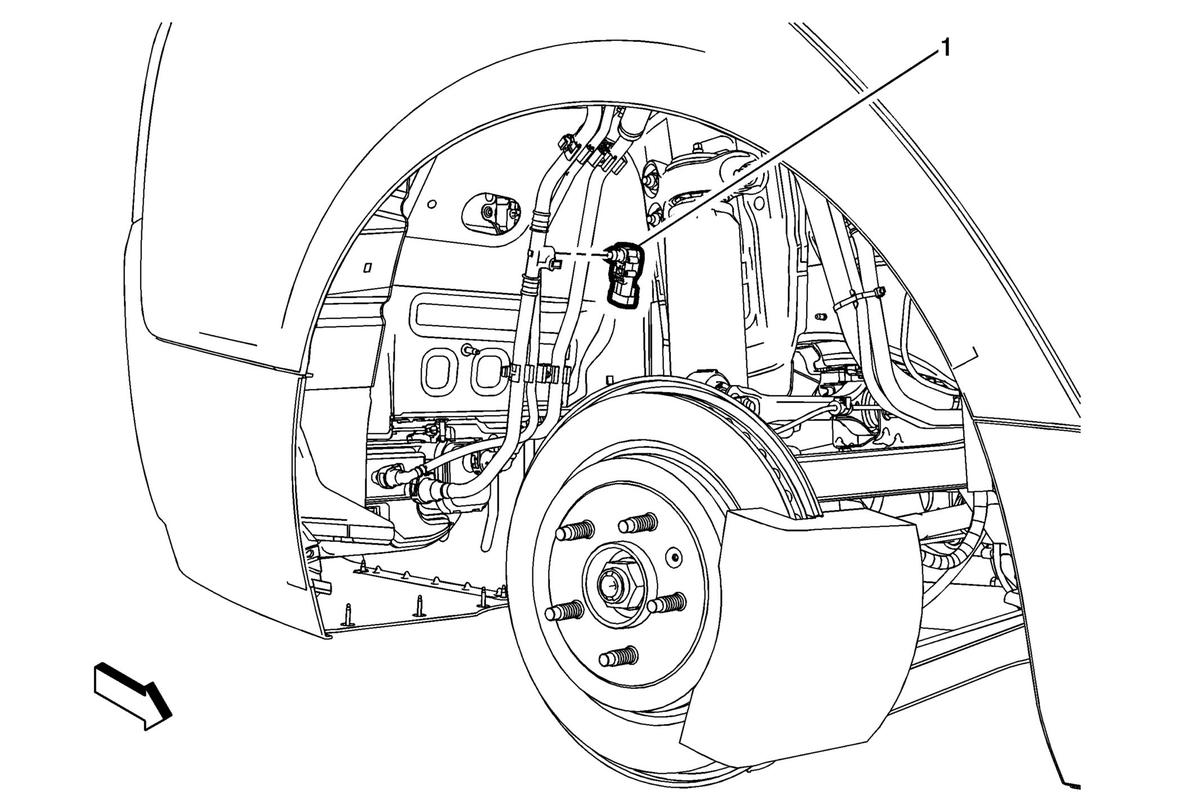

Fig 1: Fuel Tank Pressure Sensor
GM2817626Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the right rear wheelhouse panel liner. Refer to Rear Wheelhouse Liner Replacement .
1 Fuel Tank Pressure Sensor
Procedure
Disconnect the FTP sensor electrical connector.
