Intake Air Splash Shield Replacement

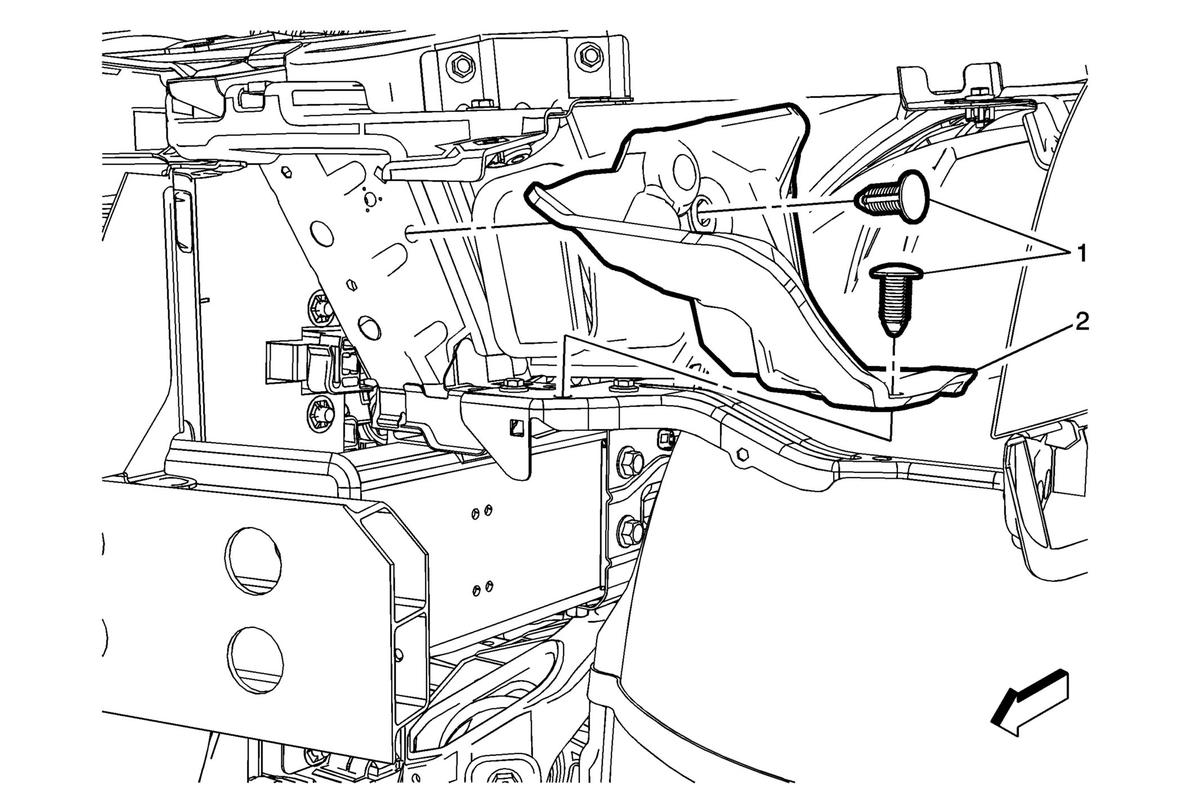

Fig 1: Intake Air Splash Shield
GM2834487Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
1 Intake Air Splash Shield Retainers (Qty: 2)
2 Intake Air Splash Shield
