Windshield Washer Solvent Container Level Sensor Replacement

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

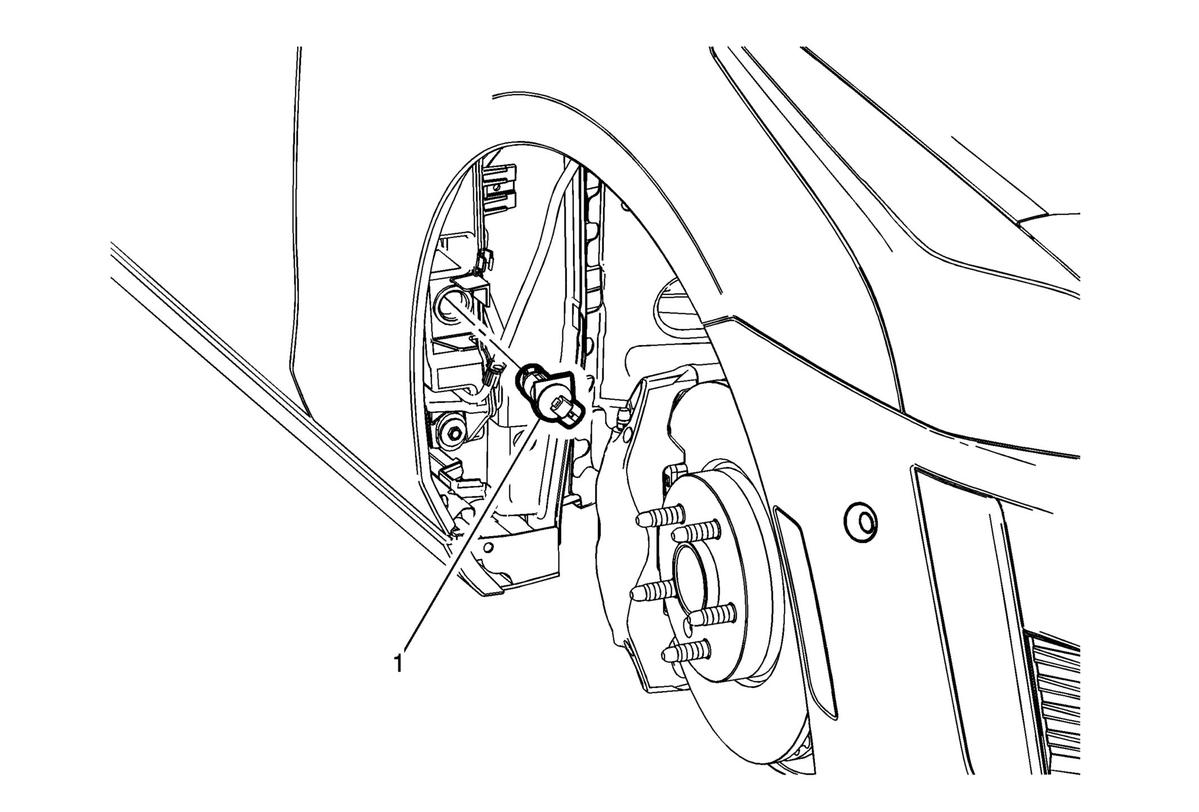

Fig 1: Windshield Washer Solvent Level Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Non V-Series) and Front Wheelhouse Liner Replacement (V-Series) .
1	Windshield Washer Solvent Level Sensor Procedure Disconnect the electrical connector. Place a clean suitable drain pan under the windshield washer solvent container to secure the windshield washer solvent when the level sensor and seal are removed. Using two flat-bladed tools, place the ends under each side of the windshield washer solvent level sensor grommet. Twisting in opposite directions, pry outward, the level sensor from the washer solvent container. Remove and discard the windshield washer level sensor grommet and replace with new.

Callout

Component Name

Preliminary Procedure
Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Non V-Series) and Front Wheelhouse Liner Replacement (V-Series) .

Windshield Washer Solvent Level Sensor

Procedure

Disconnect the electrical connector.
Place a clean suitable drain pan under the windshield washer solvent container to secure the windshield washer solvent when the level sensor and seal are removed.
Using two flat-bladed tools, place the ends under each side of the windshield washer solvent level sensor grommet.
Twisting in opposite directions, pry outward, the level sensor from the washer solvent container.
Remove and discard the windshield washer level sensor grommet and replace with new.
