Front End Inflatable Restraint Discriminating Sensor Replacement

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

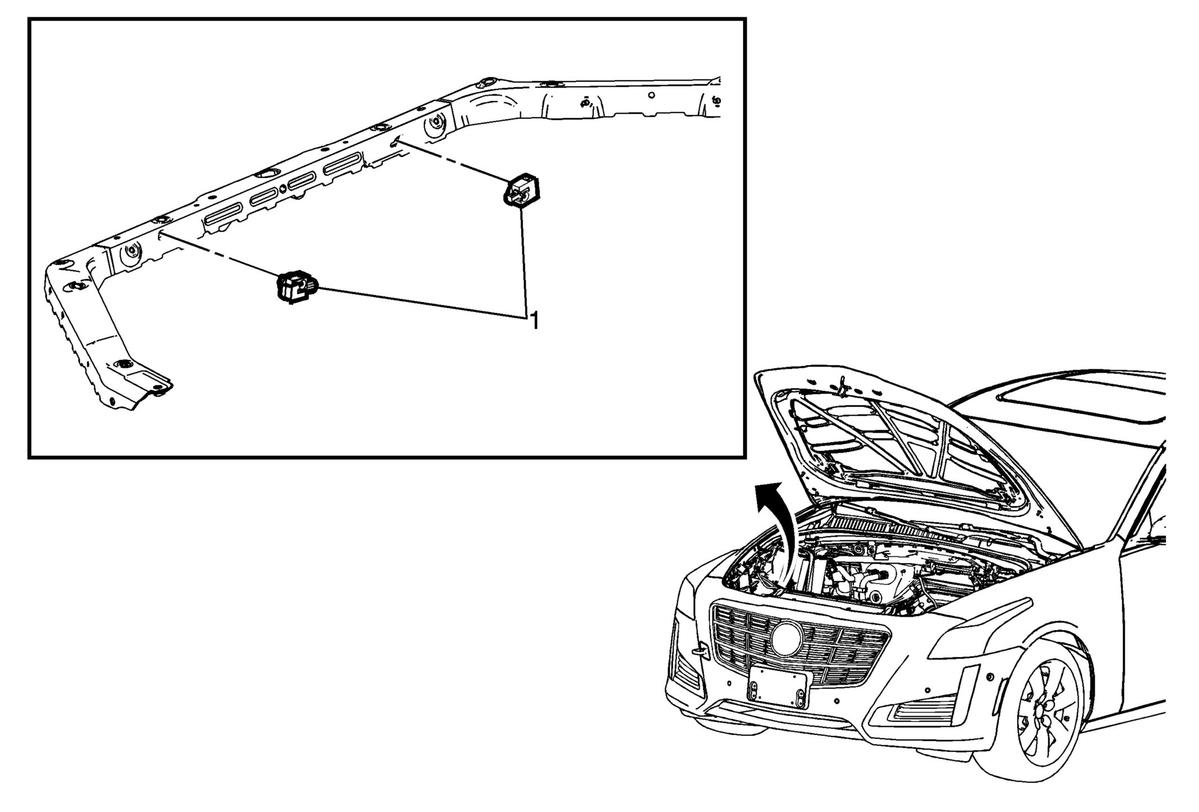

Fig 1: Front End Inflatable Restraint Discriminating Sensor
GM3458014Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING: Refer to SIR Warning .
WARNING: Refer to SIR Inflator Module Handling and Storage Warning .
WARNING: Following the deployment of a side impact air bag, inspect the following parts for damage. Replace these parts if necessary:
  • The seat cushion frame
  • The seat recliner, if equipped
  • The seat adjuster
  • The seat back frame

Failure to do so may cause future personal injury.

Preliminary Procedures

  1. Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .
  2. Remove the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement .
1 Airbag Front End Discriminating Sensor Assembly (Qty: 2)
CAUTION: Refer to Fastener Caution .

Procedure

  1. Disconnect electrical connector.
  2. Loosen the bolts and slide the sensor out of the keyhole slots.
  3. The bolts are integral to the sensor assembly and DO NOT remove separately.

Tighten
7.5 N.m (66 lb in)
