Front View Camera Replacement (With UGN)

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

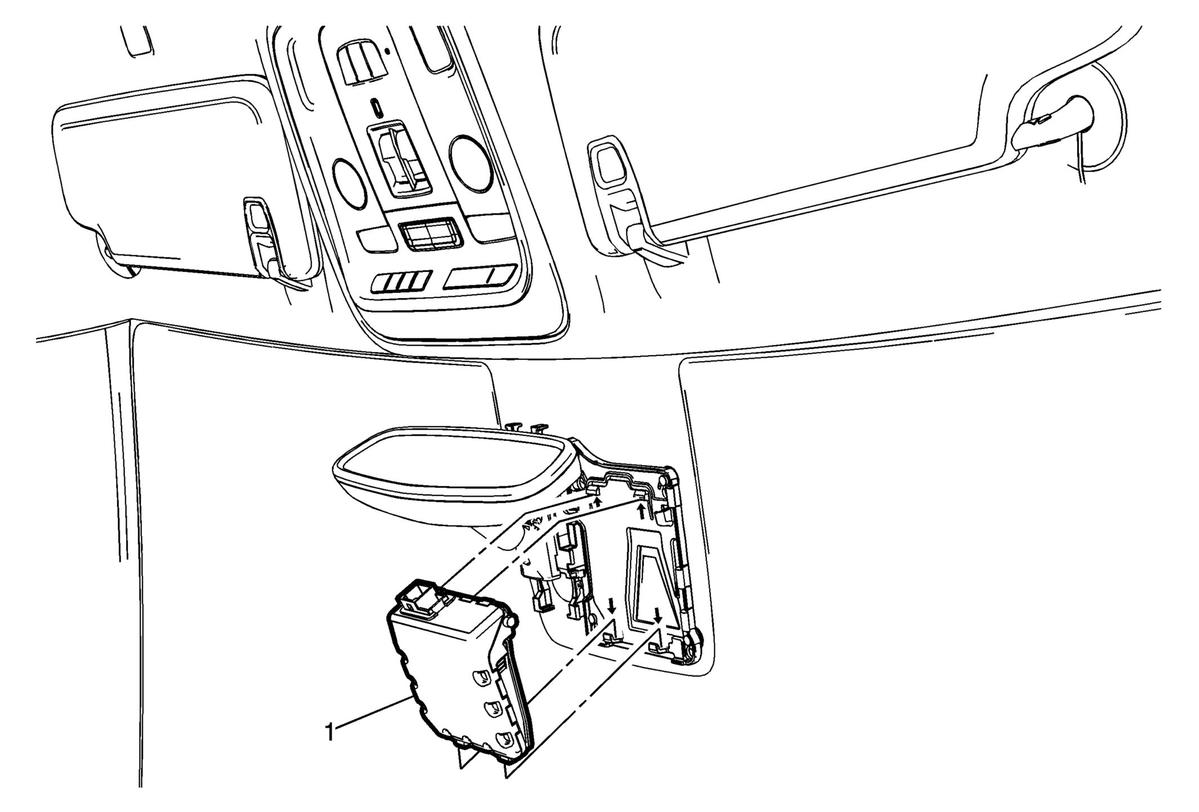

Fig 1: Front View Camera (With UGN)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the windshield multifunction sensor mounting bracket cover Refer to Windshield Multifunction Sensor Mount Bracket Cover Replacement (With UEU, UFL) and Windshield Multifunction Sensor Mount Bracket Cover Replacement (Without UEU, UFL) .
1	Front View Camera Procedure Gently depress top center tab on bracket to release camera. Disconnect the electrical connector. After replacement of the front view camera, program the front view camera. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the windshield multifunction sensor mounting bracket cover Refer to Windshield Multifunction Sensor Mount Bracket Cover Replacement (With UEU, UFL) and Windshield Multifunction Sensor Mount Bracket Cover Replacement (Without UEU, UFL) .

Front View Camera

Procedure

Gently depress top center tab on bracket to release camera.
Disconnect the electrical connector.
After replacement of the front view camera, program the front view camera. Refer to Control Module References .
