Front View Camera Replacement (With UQT)

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

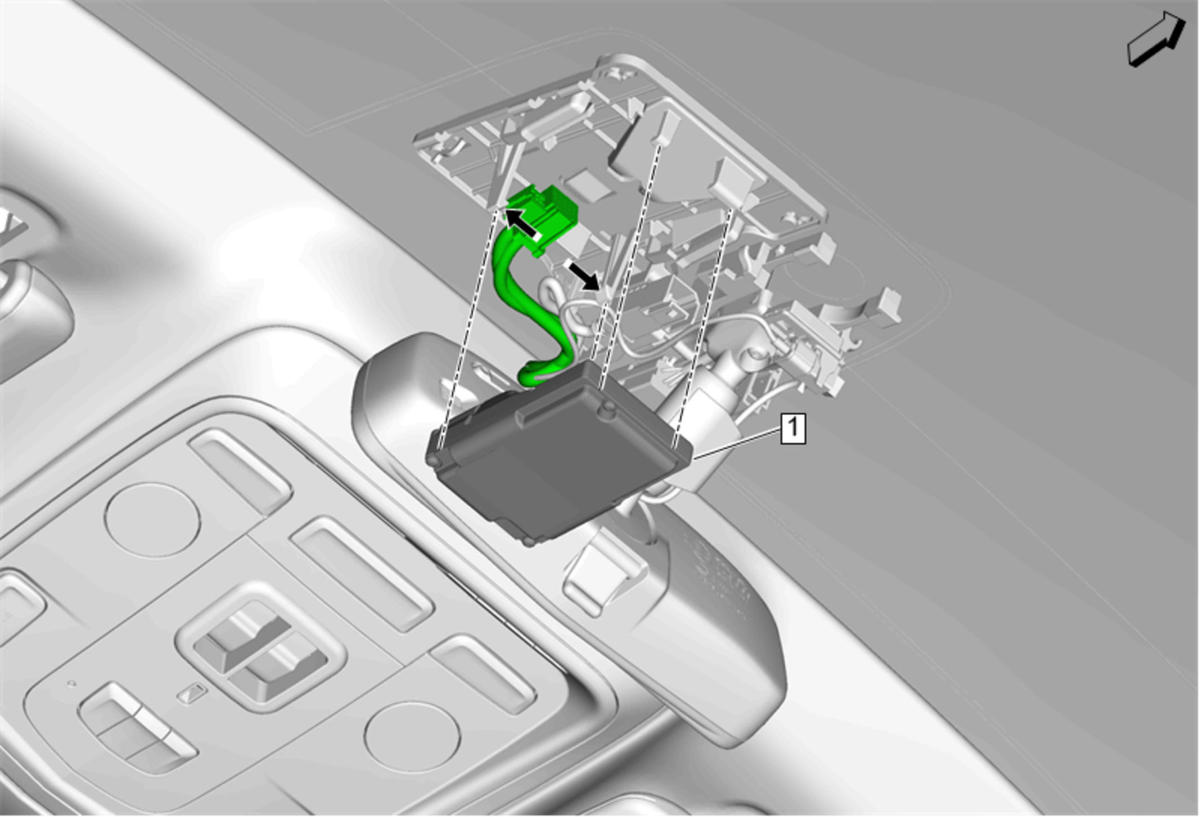

Fig 1: Front View Camera (With UQT)
GM4588168Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Vehicle Performance Camera Bracket Replacement
1 Front View Camera

Procedure

  1. Release the retaining tabs.
  2. Disconnect the electrical connector.
  3. After replacement of the front view camera, program the front view camera. Refer to Control Module References .
