Front View Driver Information Camera Replacement (CTS-V)
WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

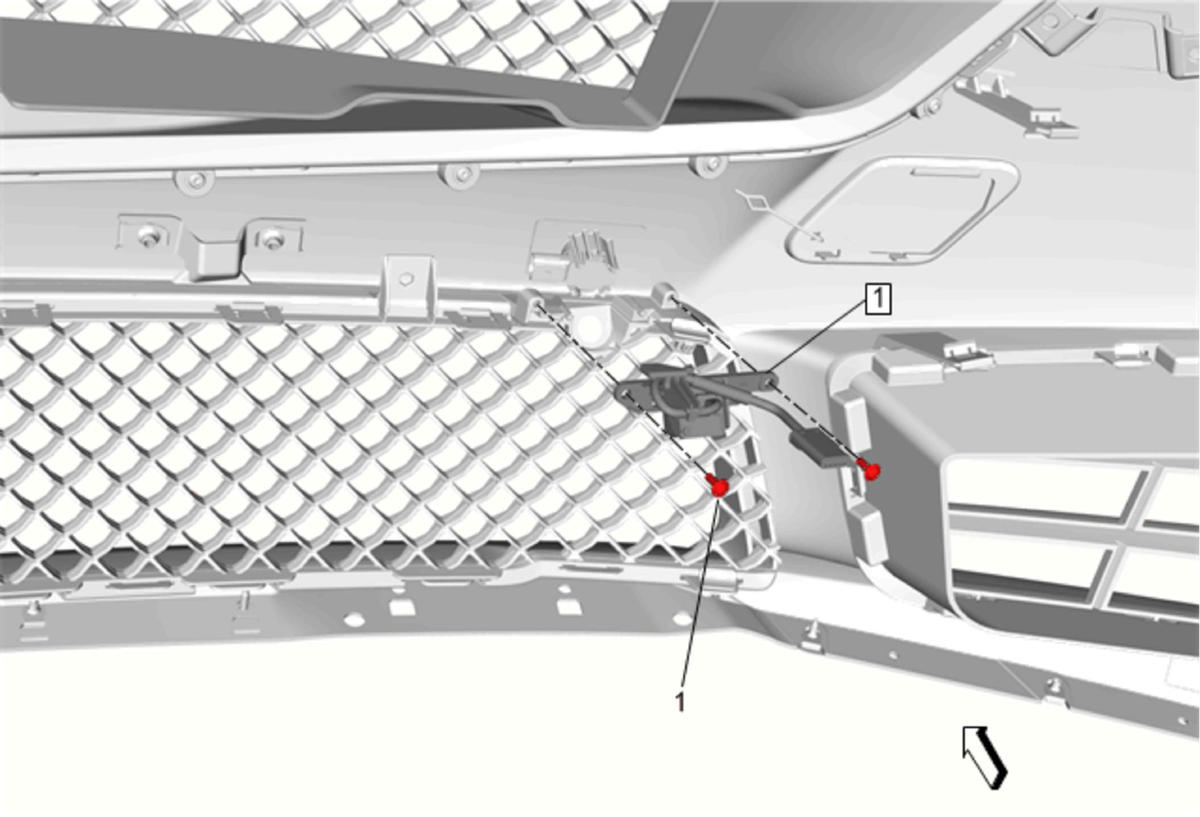

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Bumper Fascia Replacement (CTS-V) |
|
| 1 | Front View Driver Information Camera Retainer [2x]
CAUTION:
Fastener Caution
. Tighten 1 N.m (9 lb in) |
| 2 | Front View Driver Information Camera Procedure Disconnect the electrical connector. |
