Pedestrian Impact Detection Sensor Replacement - Front Upper Beam
WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
|
Preliminary Procedures
- Disable the pedestrian impact detection system. Refer to Pedestrian Impact Detection System Disabling and Enabling
.
- Remove the front bumper fascia energy absorber. Refer to Front Bumper Fascia Energy Absorber Replacement (CTS)
and Front Bumper Fascia Energy Absorber Replacement (CTS-V)
.
- Separate the two halves of the front bumper fascia energy absorber.
|

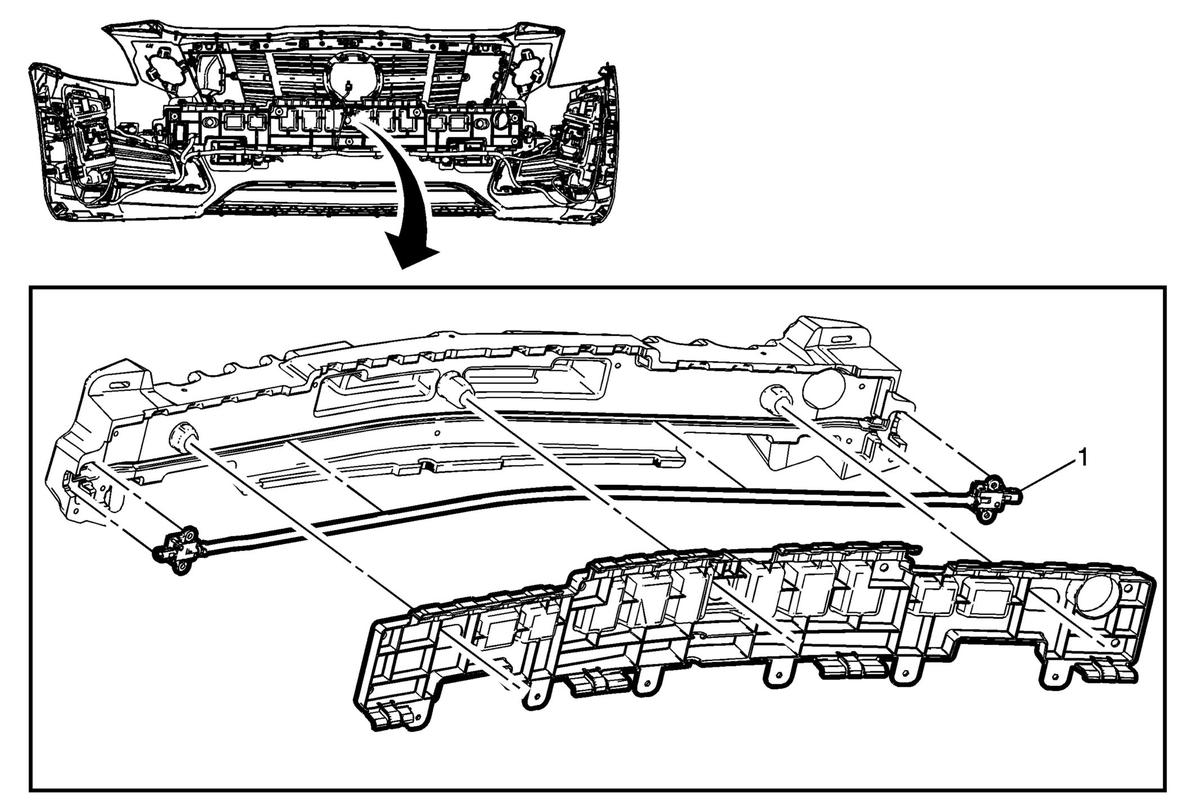

| 1 |
Pedestrian Impact Detection Sensor
Procedure
Carefully remove the pedestrian impact detection sensor from the front half of the front bumper fascia energy absorber.
NOTE:
- Inspect the absorber / EA foam for any cracks or damage and inspect pedestrian sensor tube for any cuts or puncture holes.
- Replace absorber or sensor system if any damage is found. This can cause faulty readings with the pedestrian impact sensor.
- The pedestrian sensor is a press fit into the front half of the absorber.
|
