Vehicle Performance Camera Replacement

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

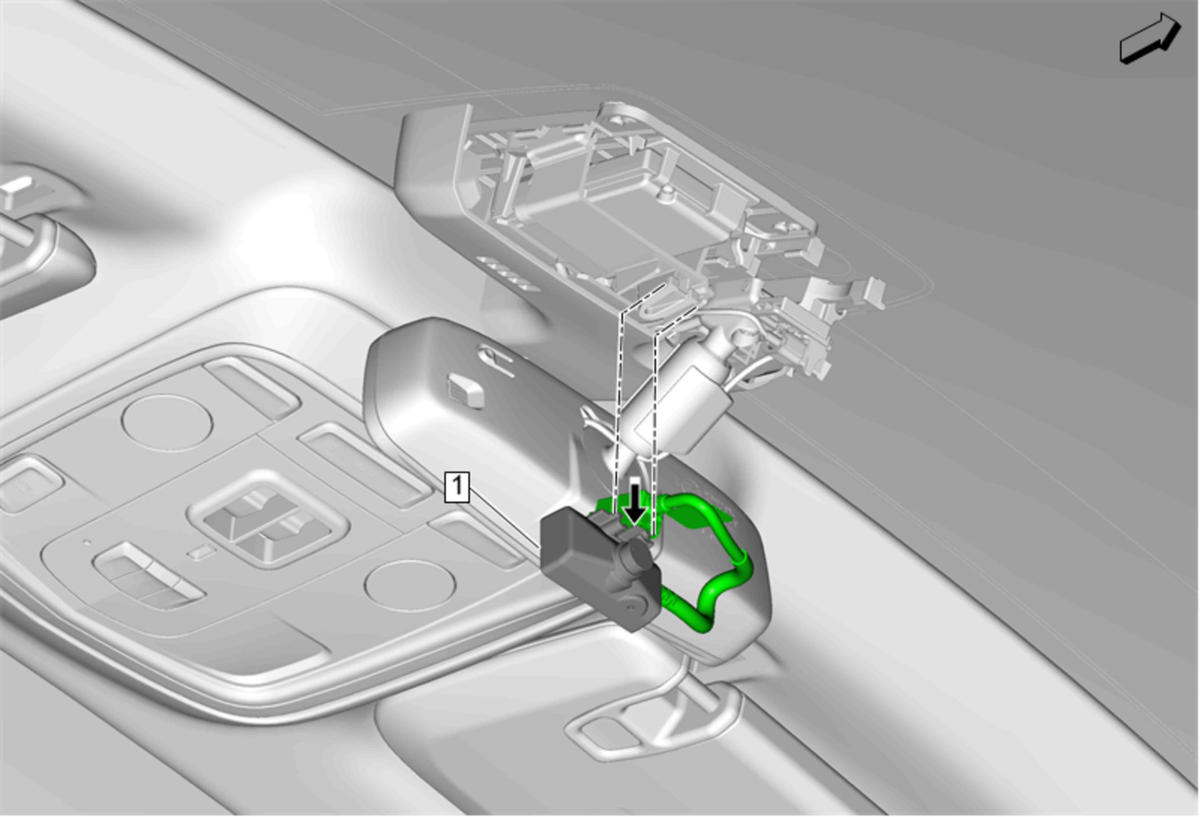

Fig 1: Vehicle Performance Camera

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Vehicle Performance Camera Procedure Release the center retaining tab on the camera and slide the camera up off the bracket. Windshield Multifunction Sensor Mount Bracket Lower Cover Replacement (With UEU, UFL)Windshield Multifunction Sensor Mount Bracket Lower Cover Replacement (Without UEU, UFL) Disconnect the electrical connector.
