Rearview Driver Information Camera Replacement

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

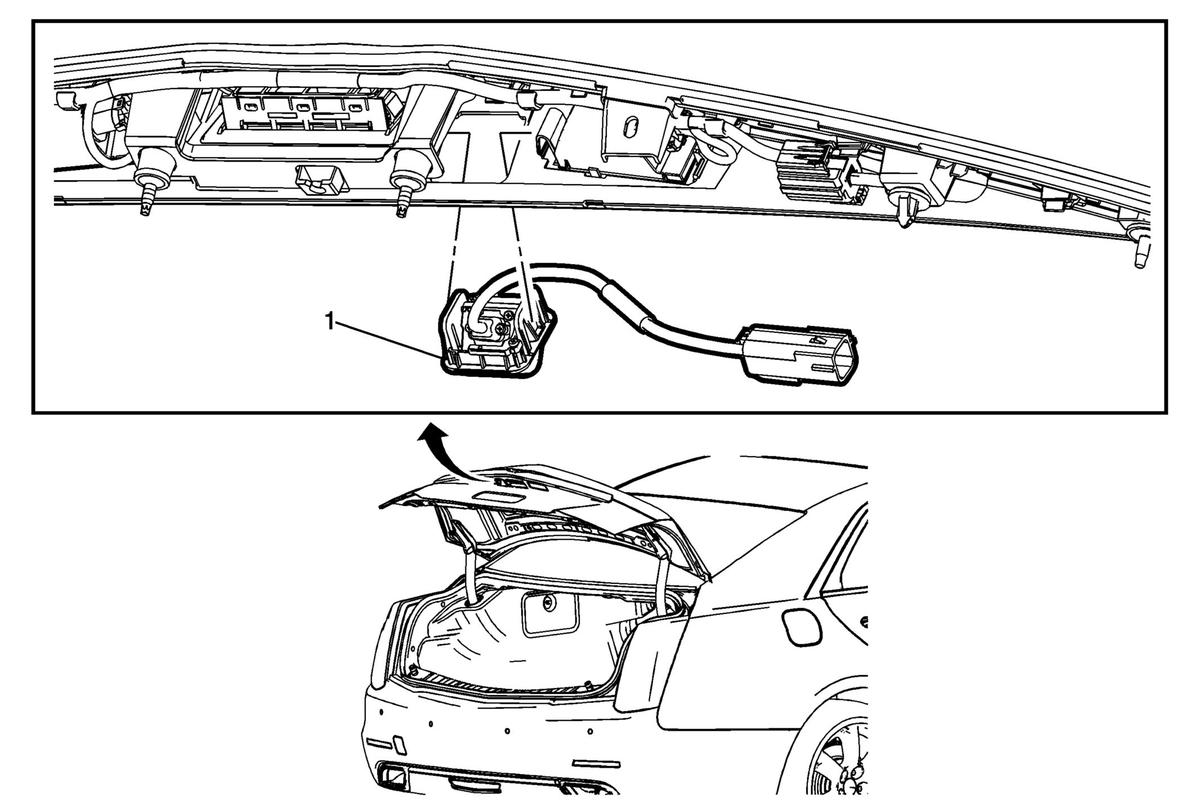

Fig 1: Rearview Driver Information Camera

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear closure center applique. Refer to Rear Closure Center Applique Replacement .
1	Rearview Camera Procedure Disconnect the electrical connector. Depress the clip fingers and push outward to remove the rearview camera from the applique.

Callout

Component Name

Preliminary Procedure
Remove the rear closure center applique. Refer to Rear Closure Center Applique Replacement .

Rearview Camera

Procedure

Disconnect the electrical connector.
Depress the clip fingers and push outward to remove the rearview camera from the applique.
