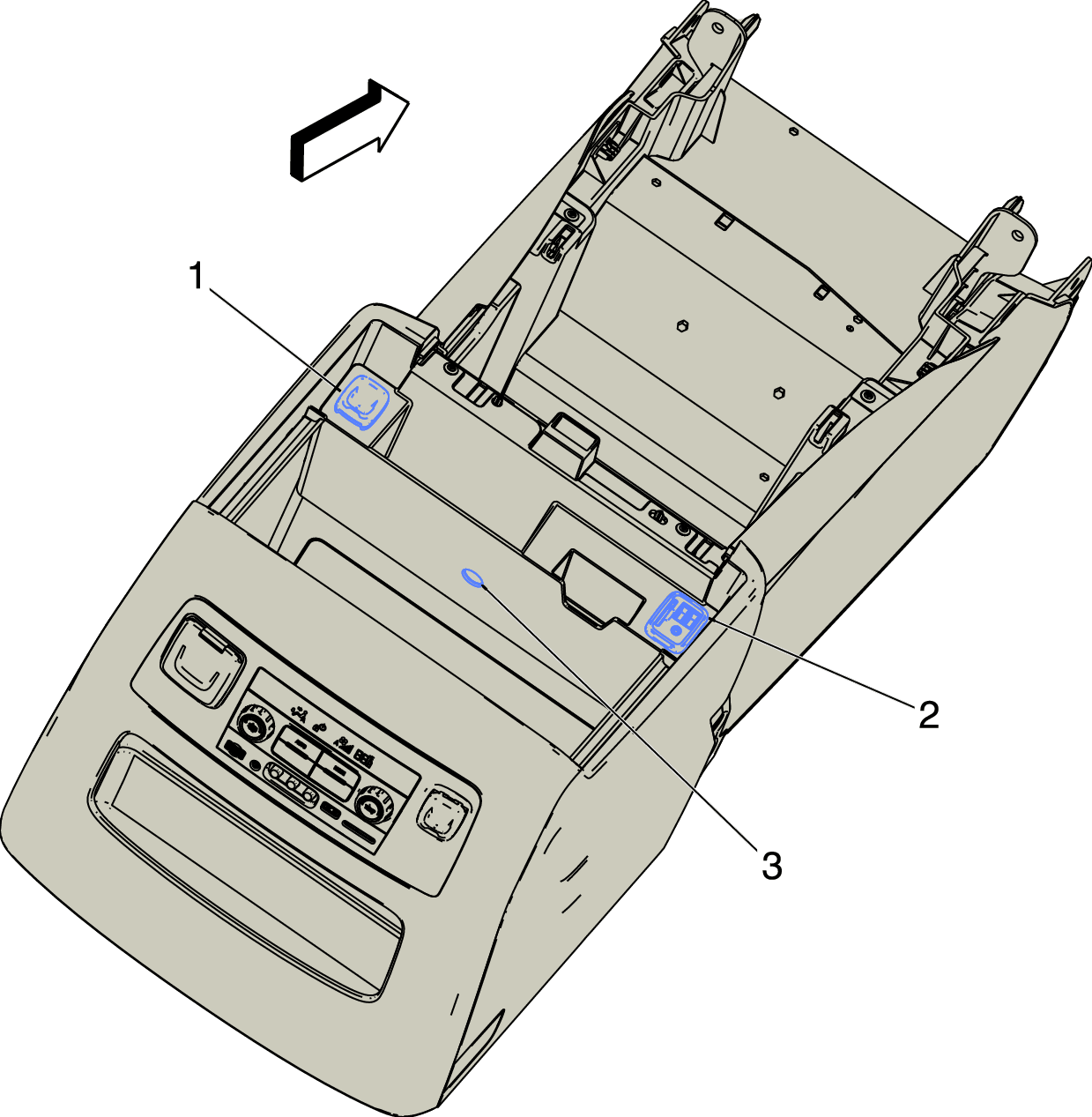

Center Console Internal Component Views (X88/Z88)
Center Console Internal Component Views (X88/Z88)
| Items |
|---|
| 1. X80D Accessory Power Receptacle - Center Console Compartment X80D Accessory Power Receptacle - Center Console Compartment ((X88/Z88)+D07)X80D Accessory Power Receptacle - Center Console Compartment (DCK/D07)X80D Accessory Power Receptacle - Center Console Compartment (AZ3) |
| 2. X83 Auxiliary Audio Input X83 Auxiliary Audio Input X1 (D07+X88/Z88)X83 Auxiliary Audio Input X1 (DCK+X88/Z88)X83 Auxiliary Audio Input X1 (AZ3) |
| 3. E28 Center Console Compartment Lamp (D07 without DCK) E28 Center Console Compartment Lamp |
