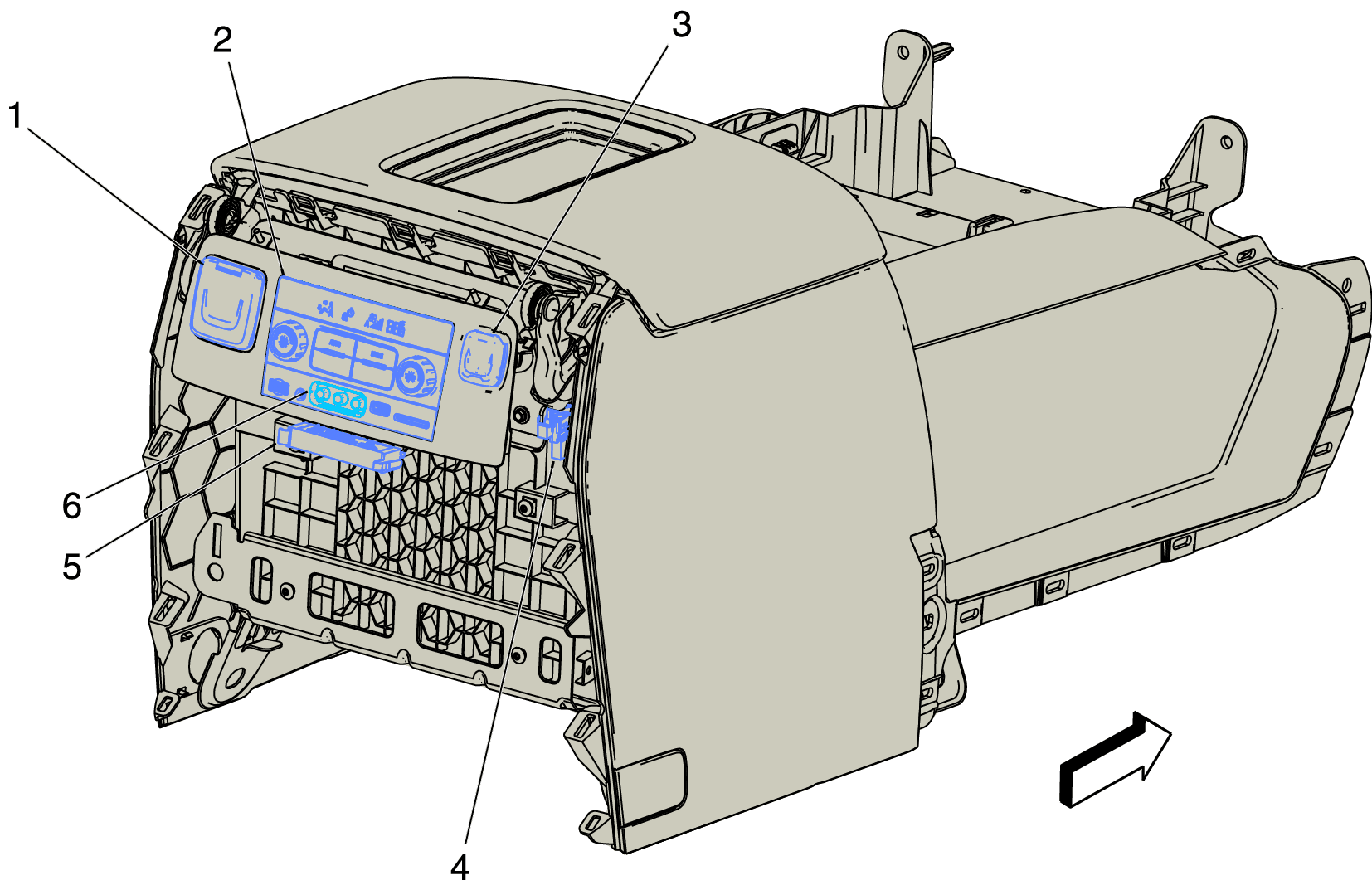

Center Console Rear Component Views (X88/Z88)
Center Console Rear Component Views (X88/Z88)
| Items |
|---|
| 1. X81 Accessory Power Receptacle - 110V AC X81 Accessory Power Receptacle - 110V AC X1 (D07+X88/Z88)X81 Accessory Power Receptacle - 110V AC X1 (DCK+X88/Z88)X81 Accessory Power Receptacle - 110V AC X1 (AZ3)X81 Accessory Power Receptacle - 110V AC X2 (D07+X88/Z88)X81 Accessory Power Receptacle - 110V AC X2 (DCK+X88/Z88)X81 Accessory Power Receptacle - 110V AC X2 (AZ3) |
| 2. A34 HVAC Controls - Auxiliary (AZ3/D07/DCK) A34 HVAC Controls - Auxiliary (AZ3)A34 HVAC Controls - Auxiliary (X88/Z88+D07)A34 HVAC Controls - Auxiliary (X88/Z88+DCK) |
| 3. X80L Accessory Power Receptacle - Center Console Rear (D07) X80L Accessory Power Receptacle - Center Console Rear |
| 4. S5 Center Console Compartment Lamp Switch (D07) S5 Center Console Compartment Lamp Switch |
| 5. T10K Keyless Entry Antenna - Center Console Rear (ATH or BTM) T10K Keyless Entry Antenna - Center Console Rear |
| 6. X82 Audio/Video Input Adapter (U42 with D07) X82 Audio/Video Input Adapter X1X82 Audio/Video Input Adapter X2 (U42) |
