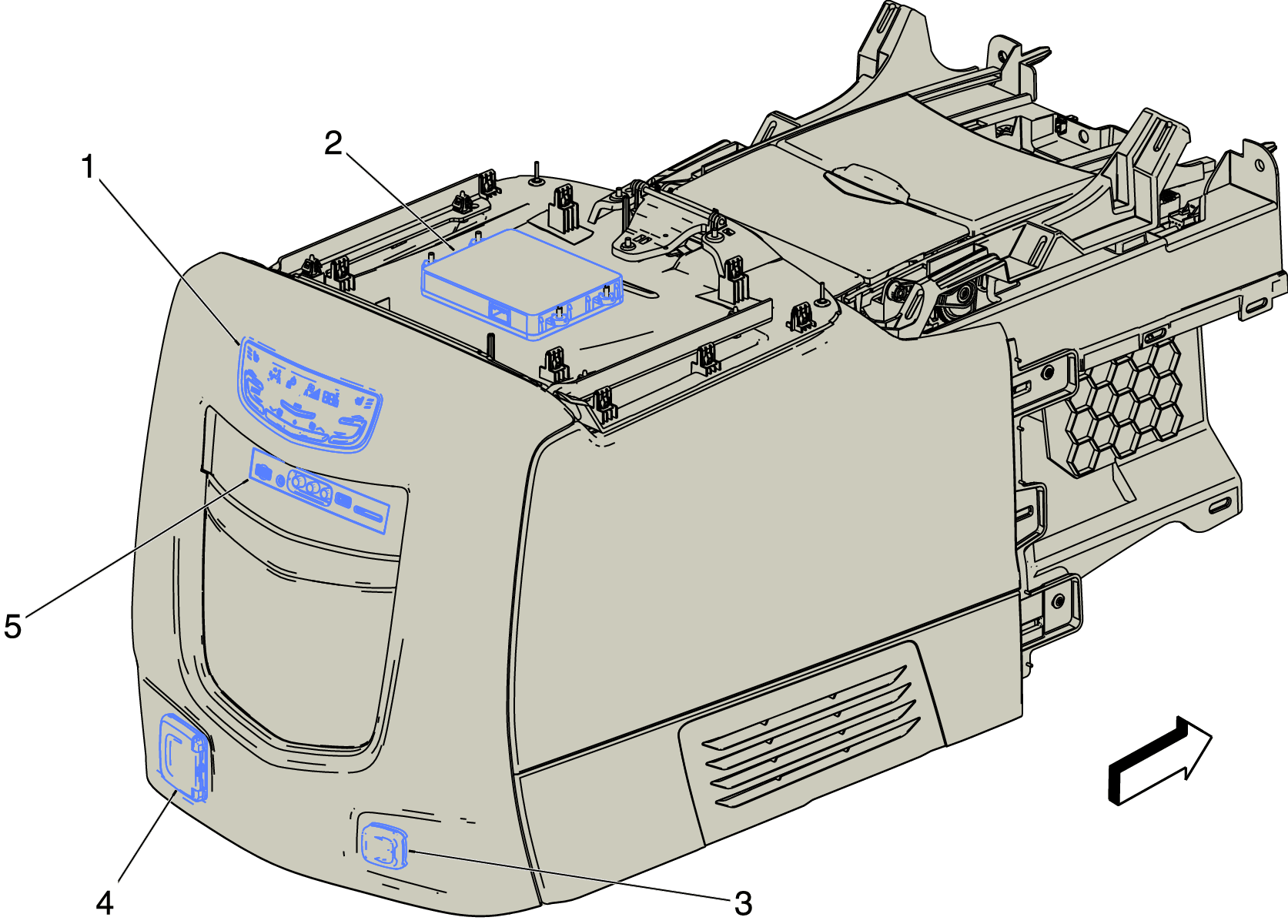

Center Console Rear Component Views (Z75)
Center Console Rear Component Views (Z75)
| Items |
|---|
| 1. A34 HVAC Controls - Auxiliary (AZ3/D07/DCK) A34 HVAC Controls - Auxiliary (AZ3)A34 HVAC Controls - Auxiliary (Z75+D07)A34 HVAC Controls - Auxiliary (Z75+DCK) |
| 2. T22 Mobile Device Wireless Charger Module (K4C) T22 Mobile Device Wireless Charger Module |
| 3. X80L Accessory Power Receptacle - Center Console Rear (D07) X80L Accessory Power Receptacle - Center Console Rear |
| 4. X81 Accessory Power Receptacle - 110V AC X81 Accessory Power Receptacle - 110V AC X1 (AZ3)X81 Accessory Power Receptacle - 110V AC X1 (D07+Z75)X81 Accessory Power Receptacle - 110V AC X1 (DCK+Z75)X81 Accessory Power Receptacle - 110V AC X2 (AZ3)X81 Accessory Power Receptacle - 110V AC X2 (D07+Z75)X81 Accessory Power Receptacle - 110V AC X2 (DCK+Z75) |
| 5. X82 Audio/Video Input Adapter (U42 with D07) X82 Audio/Video Input Adapter X1X82 Audio/Video Input Adapter X2 (U42) |
