Center Console Top Component Views (X88/Z88)

Center Console Top Component Views (X88/Z88)

Items
1. T22 Mobile Device Wireless Charger Module (K4C) T22 Mobile Device Wireless Charger Module
2. S145 Center Console Compartment Cooler Switch (DCK) S145 Center Console Compartment Cooler Switch (X88/Z88)
3. S31D Seat Heating and Cooling Switch - Driver (KA1 or KB6, without Z75) S31D Seat Heating and Cooling Switch - Driver
4. S31P Seat Heating and Cooling Switch - Passenger (KA1 or KB6, without Z75) S31P Seat Heating and Cooling Switch - Passenger
5. X92 USB Receptacle (D07 with IO5 or IO6) X92 USB Receptacle X1 (X88/Z88)X92 USB Receptacle X2 (X88/Z88)X92 USB Receptacle X3 (X88/Z88)
6. X80G Accessory Power Receptacle - Instrument Panel X80G Accessory Power Receptacle - Instrument Panel (D07+X88/Z88)X80G Accessory Power Receptacle - Instrument Panel (DCK+X88/Z88)X80G Accessory Power Receptacle - Instrument Panel (AZ3)

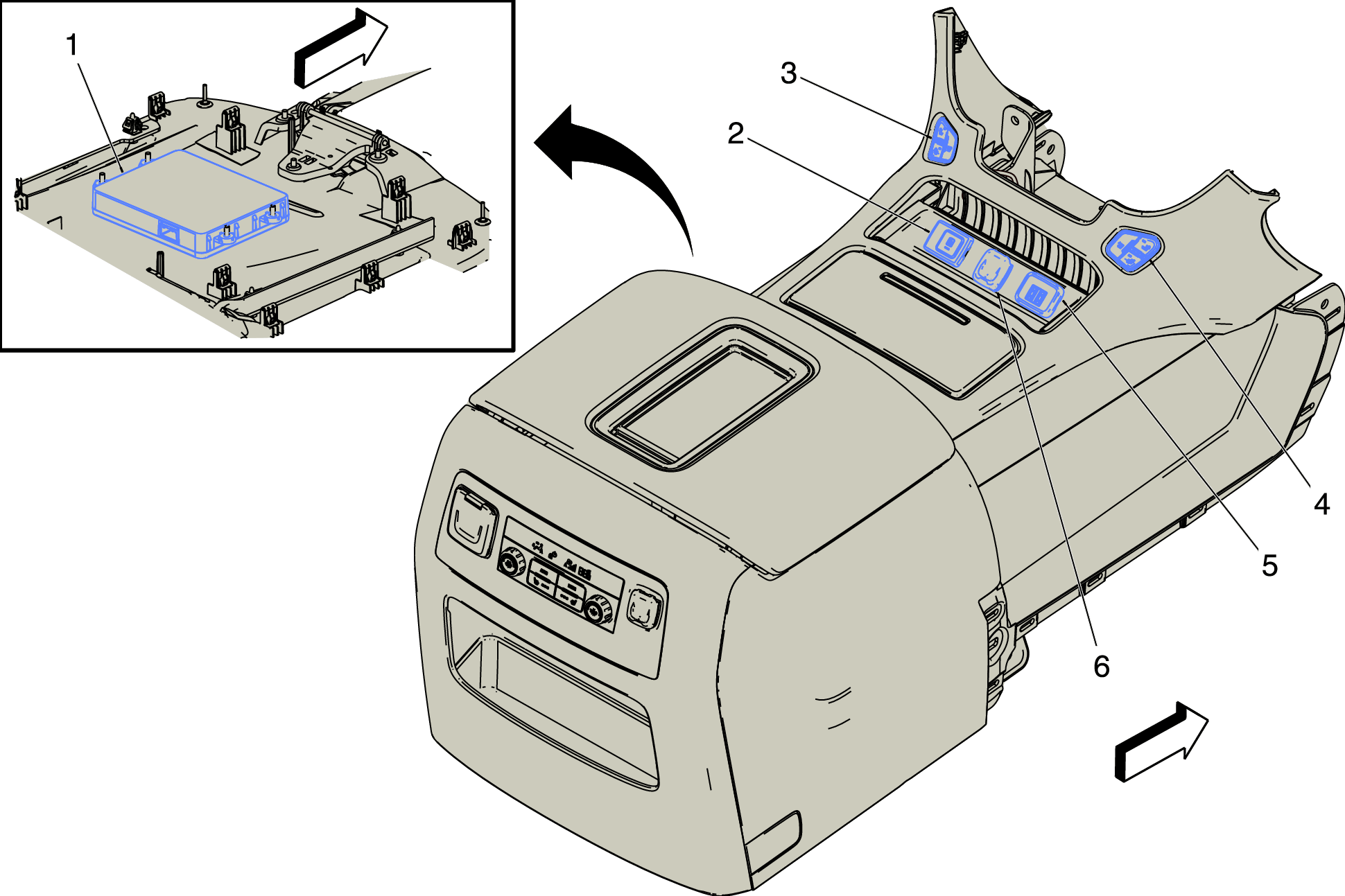

Fig 1: Center Console Top Component Views (X88/Z88)
GM3819845Courtesy of GENERAL MOTORS COMPANY
