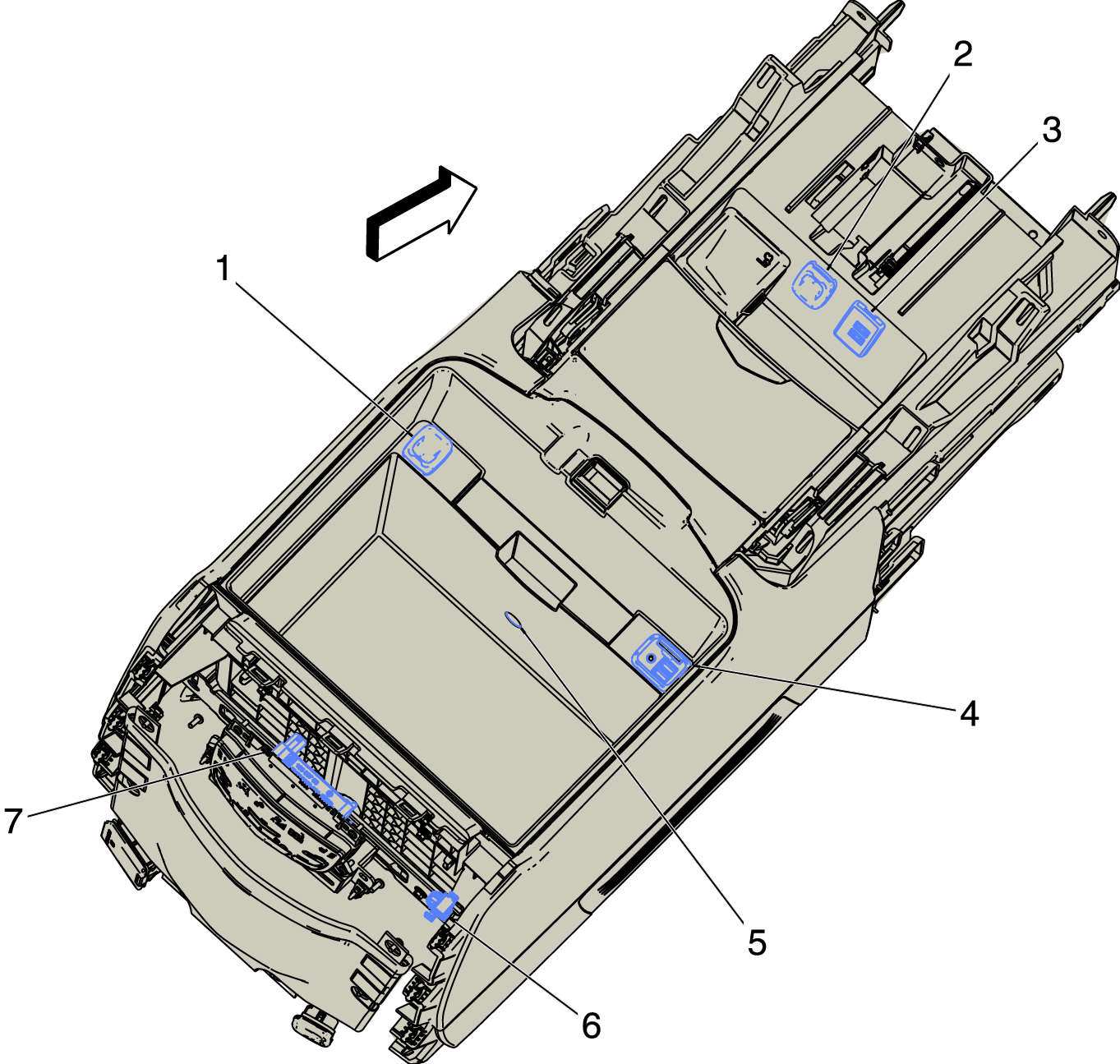

Center Console Top Component Views (Z75)
Center Console Top Component Views (Z75)
| Items |
|---|
| 1. X80D Accessory Power Receptacle - Center Console Compartment X80D Accessory Power Receptacle - Center Console Compartment (Z75+D07)X80D Accessory Power Receptacle - Center Console Compartment (Z75+DCK) |
| 2. X80G Accessory Power Receptacle - Instrument Panel X80G Accessory Power Receptacle - Instrument Panel (Z75) |
| 3. X92 USB Receptacle (D07 with IO5 or IO6) X92 USB Receptacle X1 (Z75)X92 USB Receptacle X2 (Z75)X92 USB Receptacle X3 (Z75) |
| 4. X83 Auxiliary Audio Input X83 Auxiliary Audio Input X1 (D07+Z75)X83 Auxiliary Audio Input X1 (DCK+Z75) |
| 5. E28 Center Console Compartment Lamp (D07 without DCK) E28 Center Console Compartment Lamp |
| 6. S5 Center Console Compartment Lamp Switch (D07) S5 Center Console Compartment Lamp Switch |
| 7. T10K Keyless Entry Antenna - Center Console Rear (ATH or BTM) T10K Keyless Entry Antenna - Center Console Rear |
