Front of Instrument Panel Components (Z75)

Items
1. S27 Head-Up Display Switch (UV6) S27 Head-Up Display Switch
2. P16 Instrument Cluster P16 Instrument Cluster P16 Instrument Cluster X2 (UV6)
3. P29 Head-Up Display (UV6) P29 Head-Up Display X1 P29 Head-Up Display X2
4. S48C Multifunction Switch 1 - Instrument Panel (Z75) S48C Multifunction Switch 1 - Instrument Panel
5. P17 Info Display Module P17 Info Display Module X1 (Z75)P17 Info Display Module X3 (IO3)P17 Info Display Module X3 (IO5/IO6+U42-Z75)P17 Info Display Module X3 (IO5/IO6-U42/Z75)
6. B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor
7. S48D Multifunction Switch 2 - Instrument Panel (Z75) S48D Multifunction Switch 2 - Instrument Panel
8. F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag X1 F101 Passenger Instrument Panel Air Bag X2
9. A26 HVAC Controls (X88 or Z88)
10. S140 Media Disc Eject Switch (Z75) S140 Media Disc Eject Switch
11. A33 Media Disc Player (TG5 or U42) A33 Media Disc Player X1 (TG5)A33 Media Disc Player X1 (U42)A33 Media Disc Player X2 A33 Media Disc Player X3 (U42)A33 Media Disc Player X4 (U42)A33 Media Disc Player X5 (U42)
12. S38 Ignition Mode Switch (BTM) S38 Ignition Mode Switch
13. X84 Data Link Connector X84 Data Link Connector
14. S77 Transfer Case Shift Control Switch (NP0 or NQH) S77 Transfer Case Shift Control Switch
15. S91 Park Brake Control Switch (J71) S91 Park Brake Control Switch
16. S30 Headlamp Switch S30 Headlamp Switch

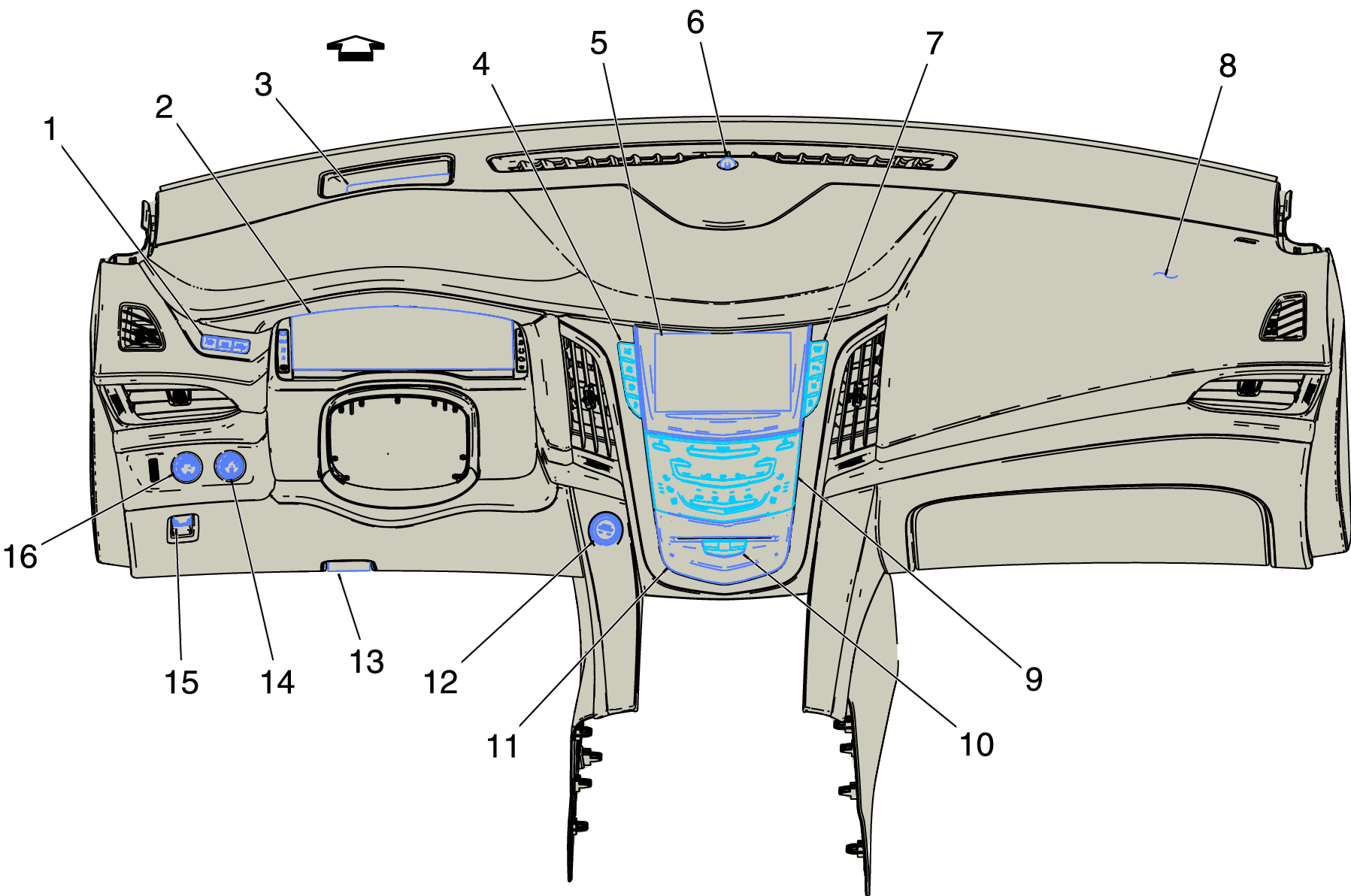

Fig 1: Front of Instrument Panel Components (Z75)

Courtesy of GENERAL MOTORS COMPANY
