Front of Instrument Panel Components (X88/Z88 without D07/DCK)

Front of Instrument Panel Components (X88/Z88 without D07/DCK)

Items
1. P19J Speaker - Left Instrument Panel P19J Speaker - Left Instrument Panel (UQ3)P19J Speaker - Left Instrument Panel (UQA/UQH/UQS)
2. P29 Head-Up Display (UV6) P29 Head-Up Display X1P29 Head-Up Display X2
3. P16 Instrument Cluster P16 Instrument ClusterP16 Instrument Cluster X2 (UV6)
4. B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor
5. P17 Info Display Module P17 Info Display Module X1 (X88/Z88)P17 Info Display Module X2 (X88/Z88)P17 Info Display Module X3 (IO3)P17 Info Display Module X3 (IO5/IO6+U42-Z75)P17 Info Display Module X3 (IO5/IO6-U42/Z75)
6. P19W Speaker - Right Instrument Panel P19W Speaker - Right Instrument Panel (UQ3)P19W Speaker - Right Instrument Panel (UQA/UQH/UQS)
7. A11 Radio A11 Radio X1A11 Radio X2A11 Radio X3A11 Radio X4A11 Radio X6A11 Radio X7A11 Radio X8
8. A33 Media Disc Player (TG5 or U42) A33 Media Disc Player X1 (TG5)A33 Media Disc Player X1 (U42)A33 Media Disc Player X2A33 Media Disc Player X3 (U42)A33 Media Disc Player X4 (U42)A33 Media Disc Player X5 (U42)
9. S135 Rollover Protection Disable Switch (C9I) S135 Rollover Protection Disable Switch
10. A26 HVAC Controls (X88 or Z88)
11. X81 Accessory Power Receptacle - 110V AC X81 Accessory Power Receptacle - 110V AC X1 (D07+X88/Z88)X81 Accessory Power Receptacle - 110V AC X1 (DCK+X88/Z88)X81 Accessory Power Receptacle - 110V AC X1 (AZ3)X81 Accessory Power Receptacle - 110V AC X2 (D07+X88/Z88)X81 Accessory Power Receptacle - 110V AC X2 (DCK+X88/Z88)X81 Accessory Power Receptacle - 110V AC X2 (AZ3)
12. X80G Accessory Power Receptacle - Instrument Panel X80G Accessory Power Receptacle - Instrument Panel (D07+X88/Z88)X80G Accessory Power Receptacle - Instrument Panel (DCK+X88/Z88)X80G Accessory Power Receptacle - Instrument Panel (AZ3)
13. S48A Multifunction Switch - Instrument Panel (X88 or Z88) S48A Multifunction Switch - Instrument Panel
14. S76 Trailer Brake Control Switch (JL1) S76 Trailer Brake Control Switch
15. S30 Headlamp Switch S30 Headlamp Switch
16. S77 Transfer Case Shift Control Switch (NP0 or NQH) S77 Transfer Case Shift Control Switch

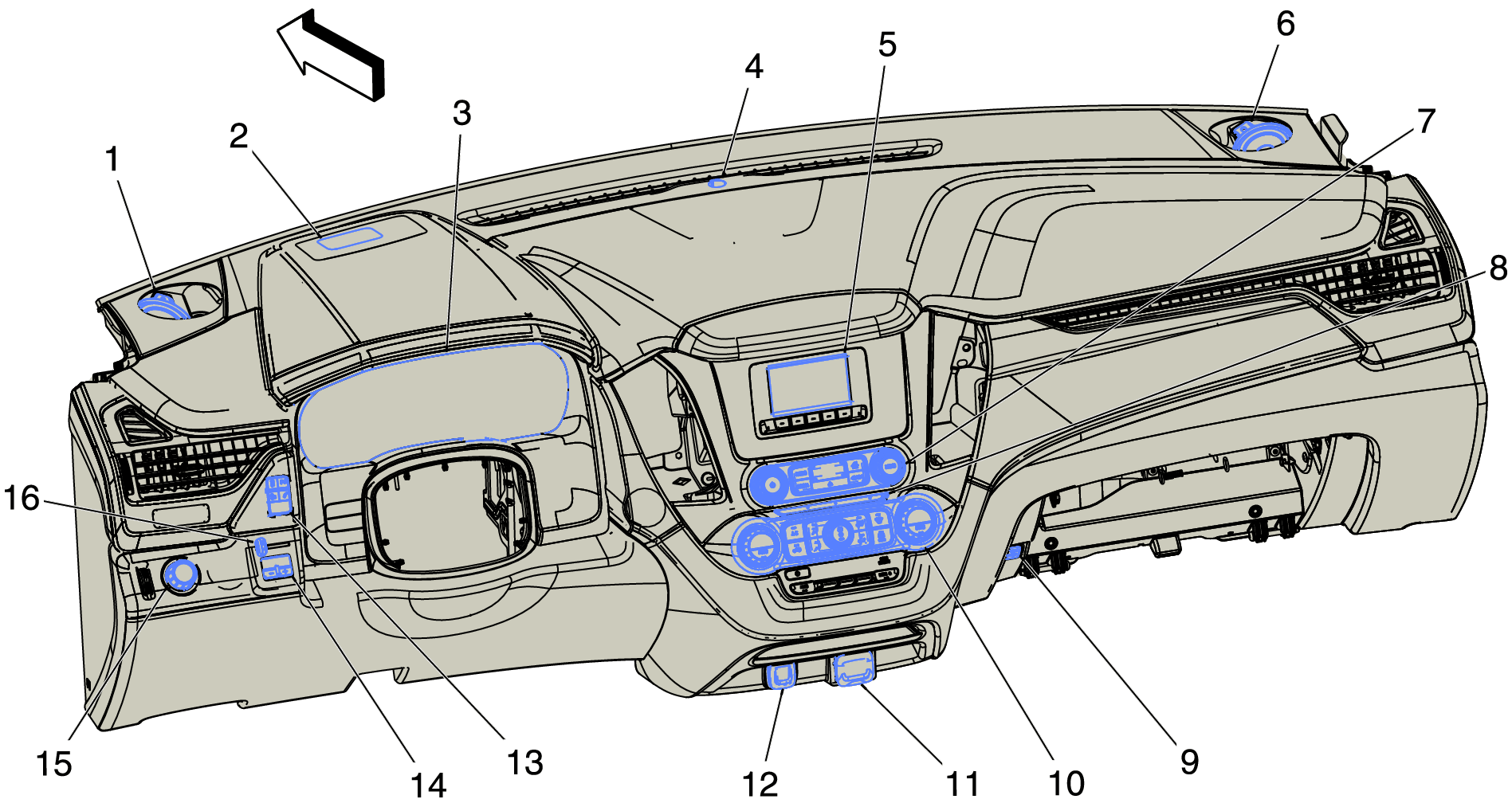

Fig 1: Front of Instrument Panel Components (X88/Z88 without D07/DCK)

Courtesy of GENERAL MOTORS COMPANY
