Removal Procedure

  1. Disconnect Battery Negative Cable. Refer to Battery Negative Cable Disconnection and Connection t

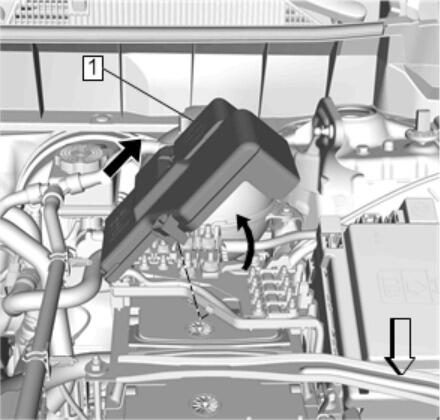

    2. Fig 1: Battery Fuse Block Cover
    GM4296726Courtesy of GENERAL MOTORS COMPANY
  2. Remove Fuse Block Cover (1)

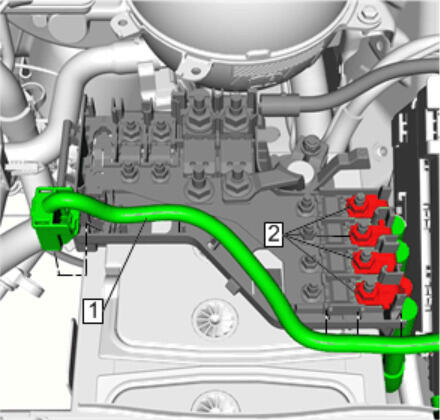

    3. Fig 2: Body Wiring Harness Terminal Nuts And Body Wiring Harness Connector
    GM4296729Courtesy of GENERAL MOTORS COMPANY
  3. Remove Body Wiring Harness Connector (1)
  4. Remove Body Wiring Harness Terminal Nuts (2) (Qty: 4)

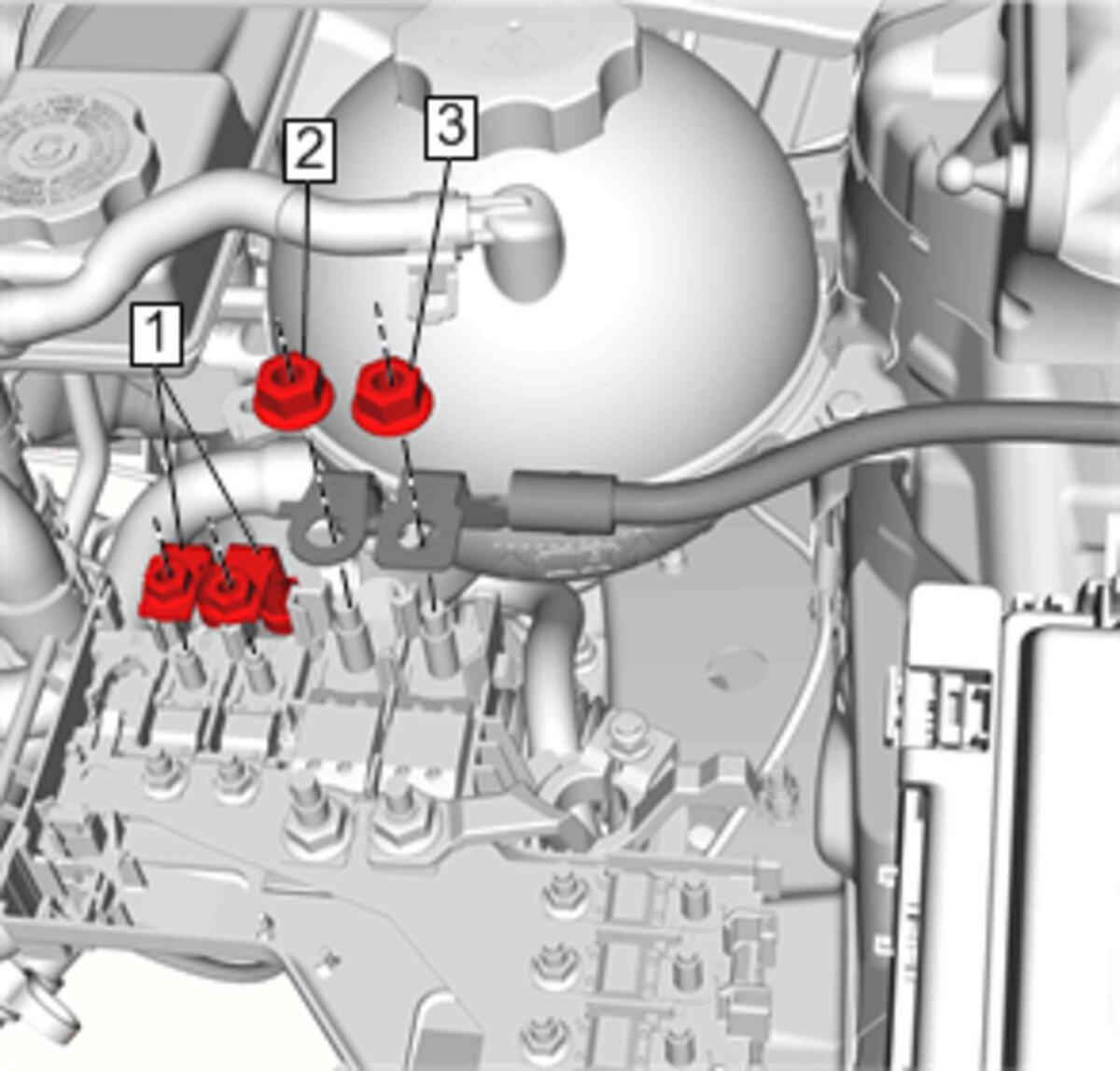

    5. Fig 3: Battery Positive Junction Block Cable Nut And Positive Battery Cable Terminal Nuts
    GM4296731Courtesy of GENERAL MOTORS COMPANY
  5. Remove Positive Battery Cable Terminal Nuts-Small (1) (Qty: 2)
  6. Remove Positive Battery Cable Terminal Nut-Large (2)
  7. Remove Battery Positive Junction Block Cable Nut (3)

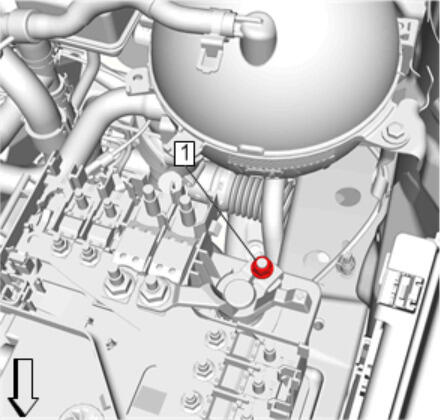

    8. Fig 4: Battery Positive Post Clamp Nut
    GM4296733Courtesy of GENERAL MOTORS COMPANY
  8. Loosen Positive Battery Clamp Nut (1)

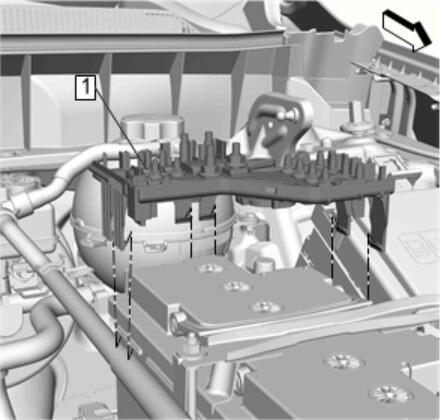

    9. Fig 5: Fuse Block And Retaining Tabs
    GM4296734Courtesy of GENERAL MOTORS COMPANY
  9. Release the 6 fuse block retaining tabs and remove. (1)
