Removal Procedure

    Fig 1: Battery Negative Cable
    GM4285190Courtesy of GENERAL MOTORS COMPANY
  1. Use an open ended wrench to hold the battery sensor ground tab, while loosening the battery negative cable nut.(2)
  2. Remove Battery Negative Cable Nut (1)
  3. Remove Battery Negative Cable (3)

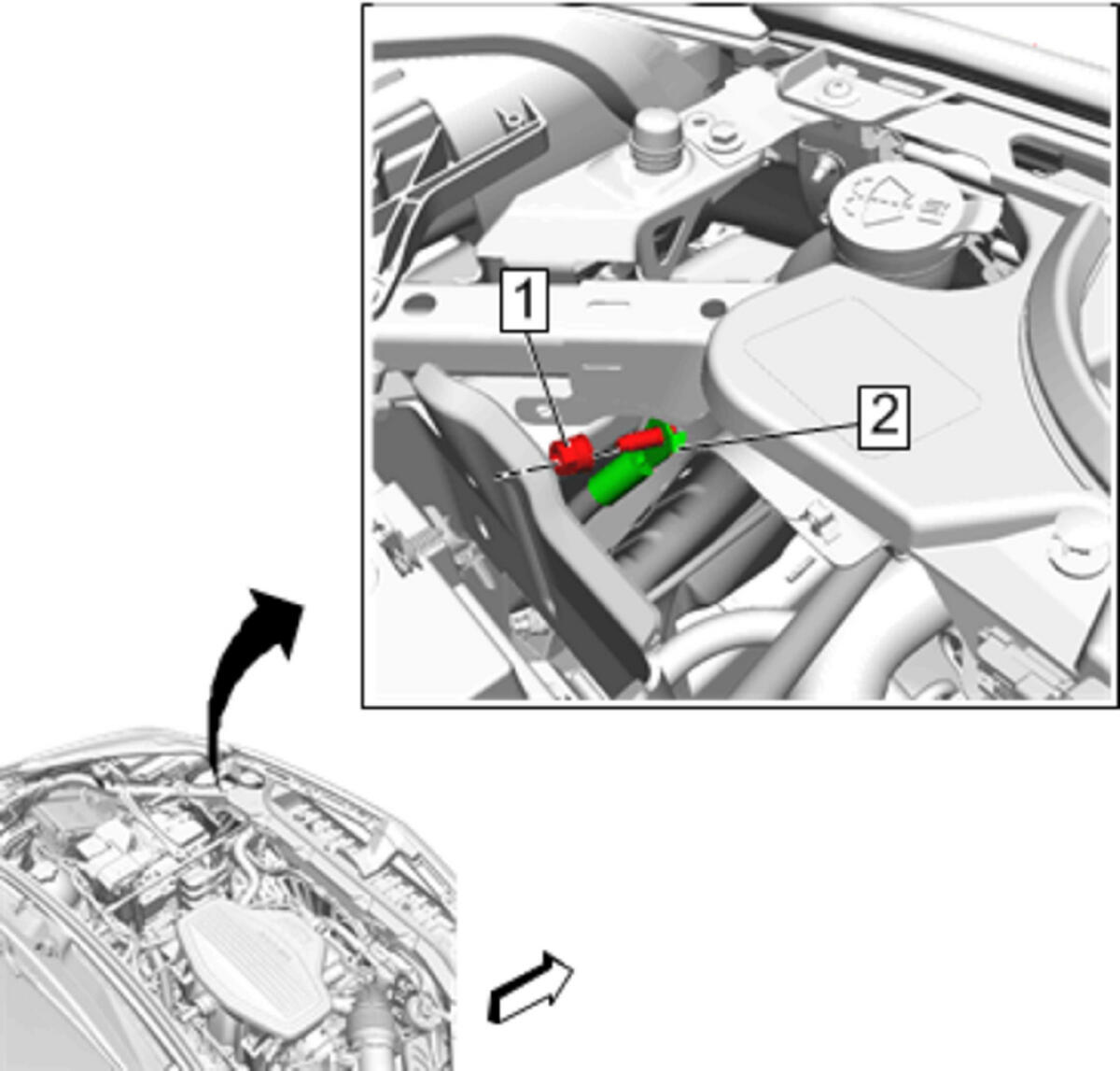

    4. Fig 2: Battery Negative Cable And Battery Negative Cable Frame Ground Fastener
    GM4285808Courtesy of GENERAL MOTORS COMPANY
  4. Remove Battery Negative Cable Frame Ground Fastener (1)
  5. Remove Battery Negative Cable (2)

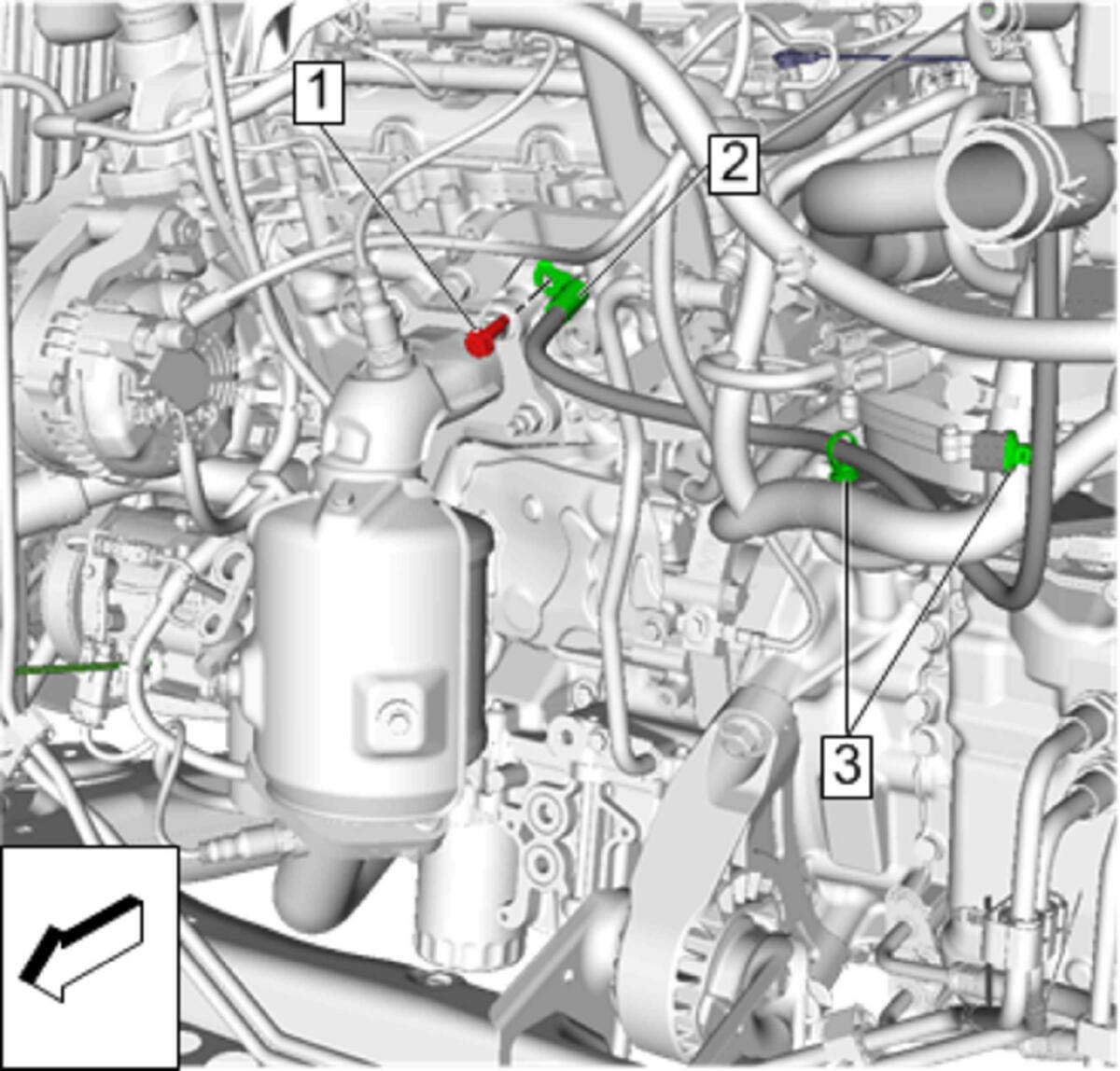

    6. Fig 3: Battery Negative Cable, Ground Fastener And Retainer
    GM4285809Courtesy of GENERAL MOTORS COMPANY
  6. Remove Battery Negative Cable Ground Fastener (1)
  7. Disengage Retainer (3)
  8. Remove Battery Negative Cable (2)
