Installation Procedure

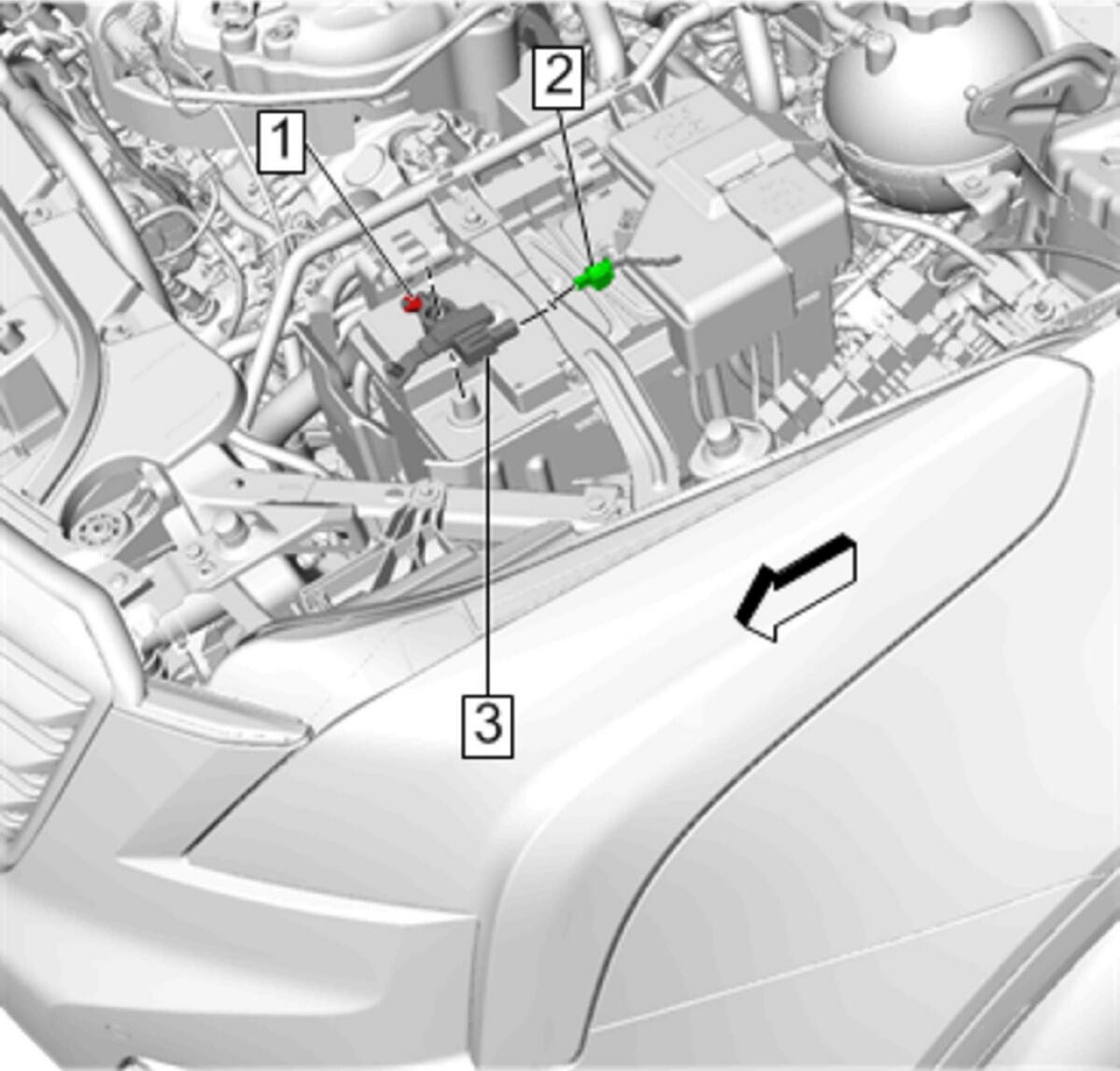

    Fig 1: Electrical Connector
    GM4285192Courtesy of GENERAL MOTORS COMPANY
  1. Install Battery Sensor Module (3)
    2. CAUTION:

    Refer to Fastener Caution

  2. Battery Negative Post Clamp Nut (1) Tighten 4.5 N.m (40 lb in)
  3. Connect Electrical Connector (2)

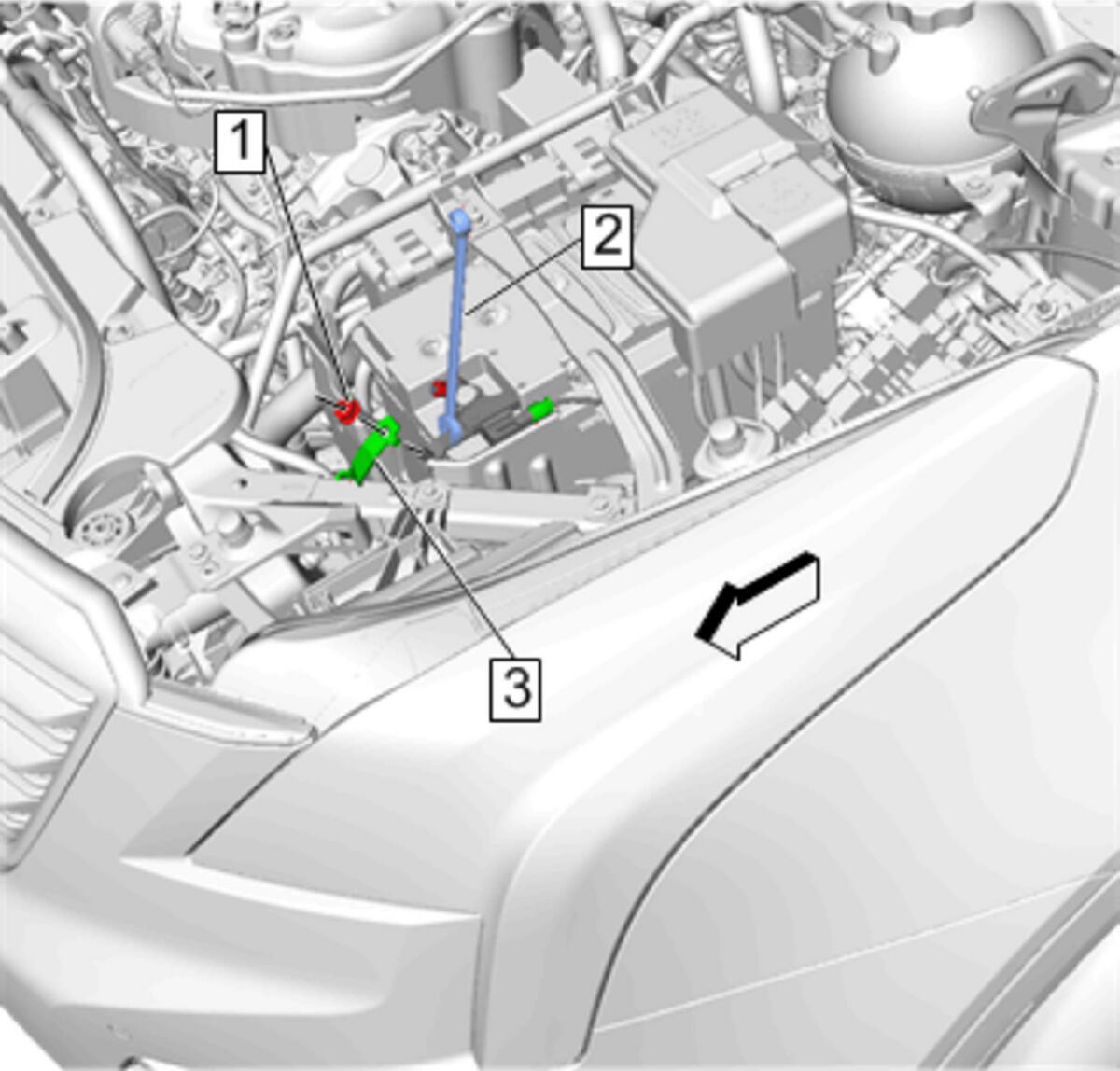

    4. Fig 2: Battery Negative Cable
    GM4285190Courtesy of GENERAL MOTORS COMPANY
  4. Install Battery Negative Cable (3)
  5. Use an open ended wrench to hold the battery sensor ground tab, while tightening the battery negative cable nut. (2)
  6. Battery Negative Cable Nut (1) - Tighten 12 N.m (106 lb in)
