Removal Procedure

  1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection

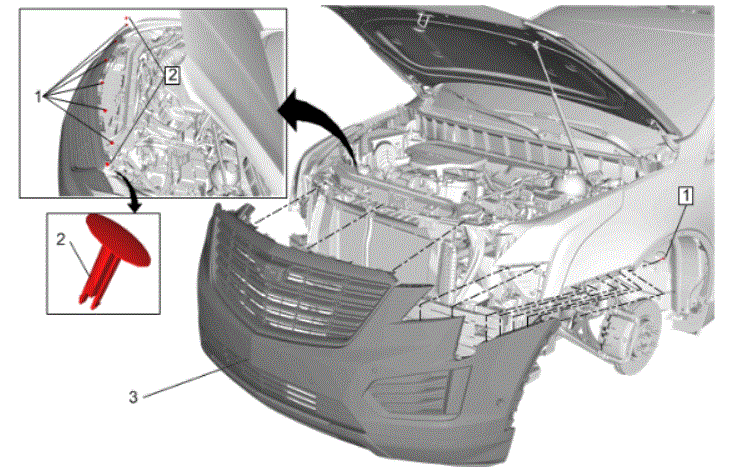

    2. Fig 1: Front Bumper Fascia
    G00593712Courtesy of GENERAL MOTORS COMPANY
  2. Front Bumper Fascia (3) » Remove - Front Bumper Fascia Replacement

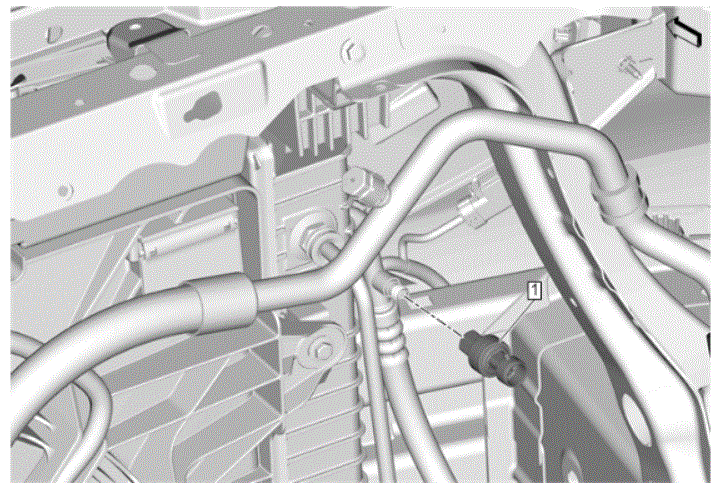

    3. Fig 2: Air Conditioning Refrigerant Pressure Sensor
    G00593713Courtesy of GENERAL MOTORS COMPANY
  3. Air Conditioning Refrigerant Pressure Sensor (1) » Remove - Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement

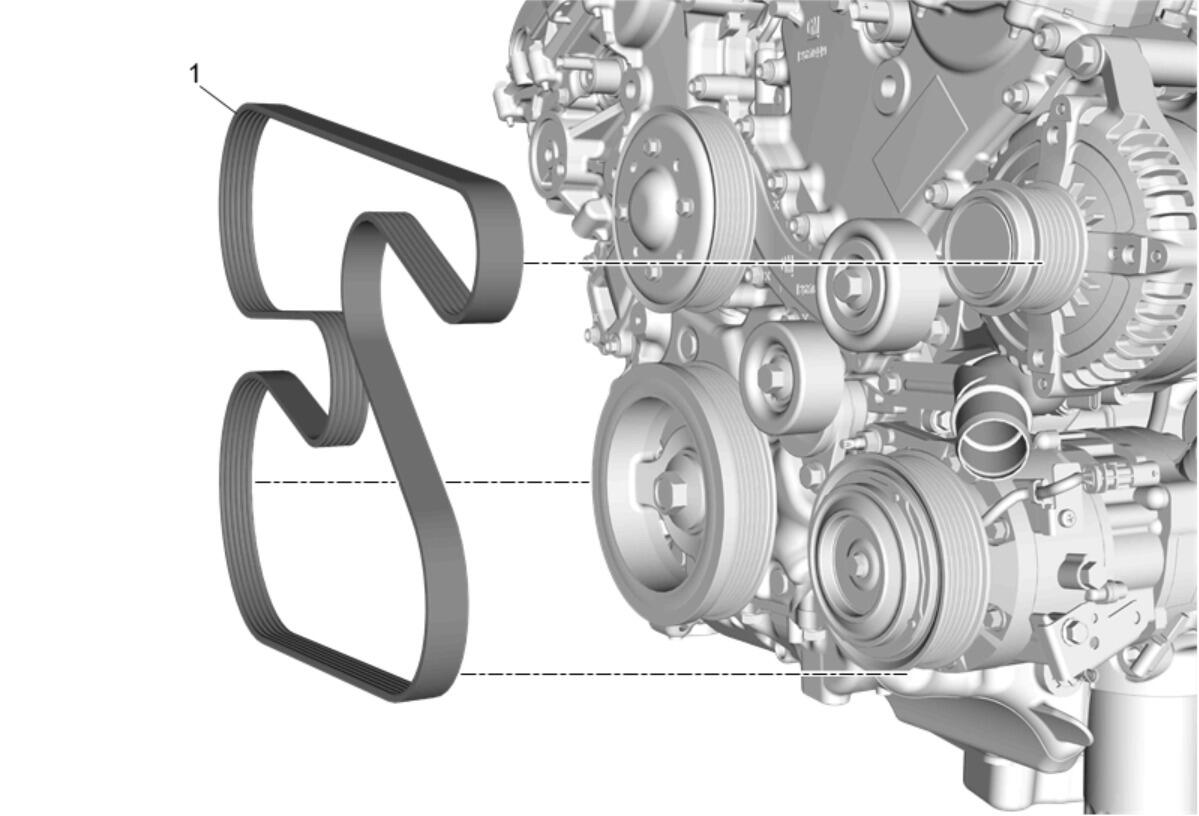

    4. Fig 3: Drive Belt And Generator Pulley
    GM4283461Courtesy of GENERAL MOTORS COMPANY
  4. Remove the drive belt from the generator pulley only. (1) - Drive Belt Replacement

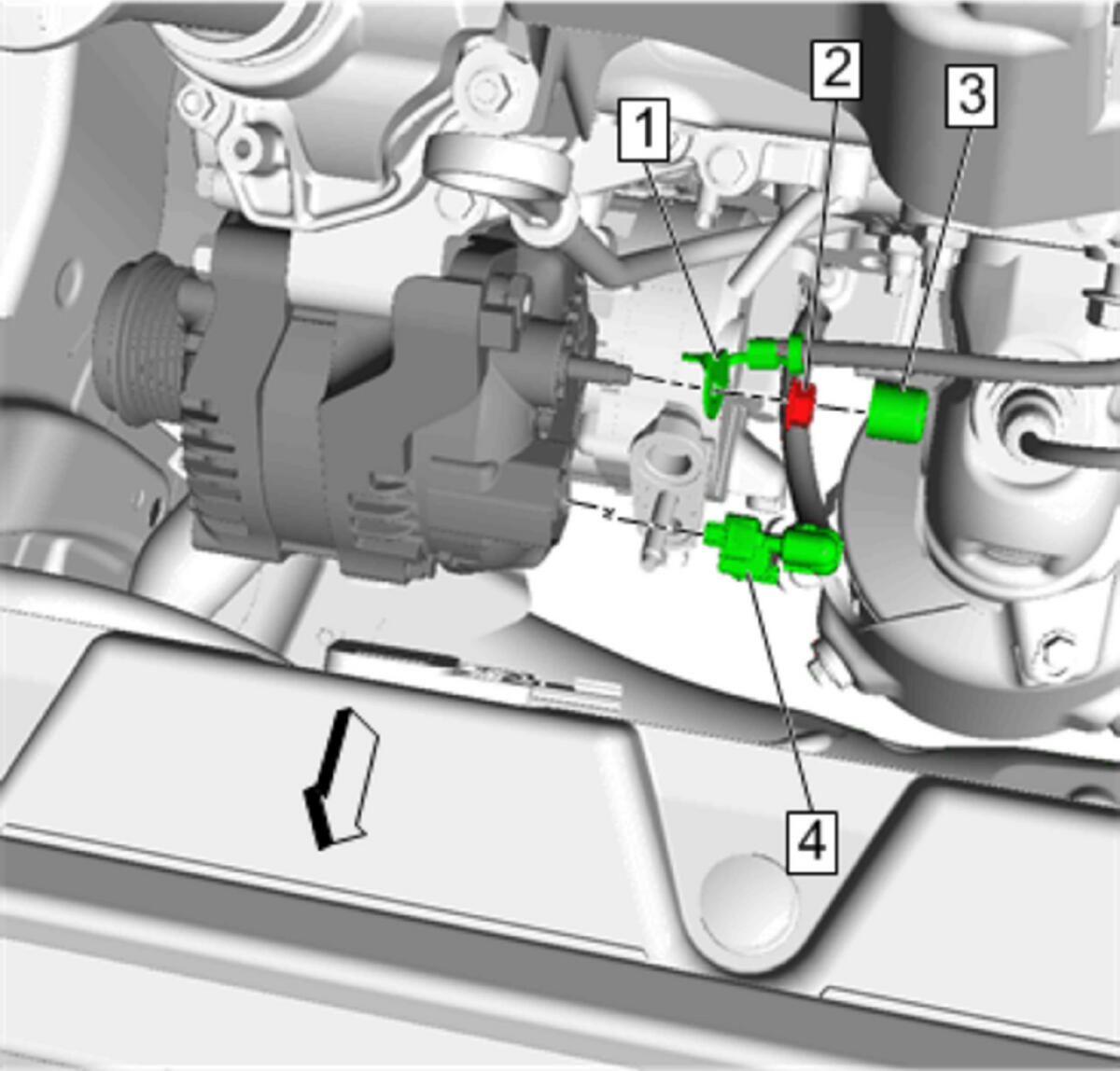

    5. Fig 4: Protective Cap
    GM4288970Courtesy of GENERAL MOTORS COMPANY
  5. Protective Cap (3) » Remove
  6. Battery Positive Cable Nut (2) @ Generator » Remove
  7. Battery Positive Cable (1) » Remove
  8. Electrical Connector (4) » Disconnect

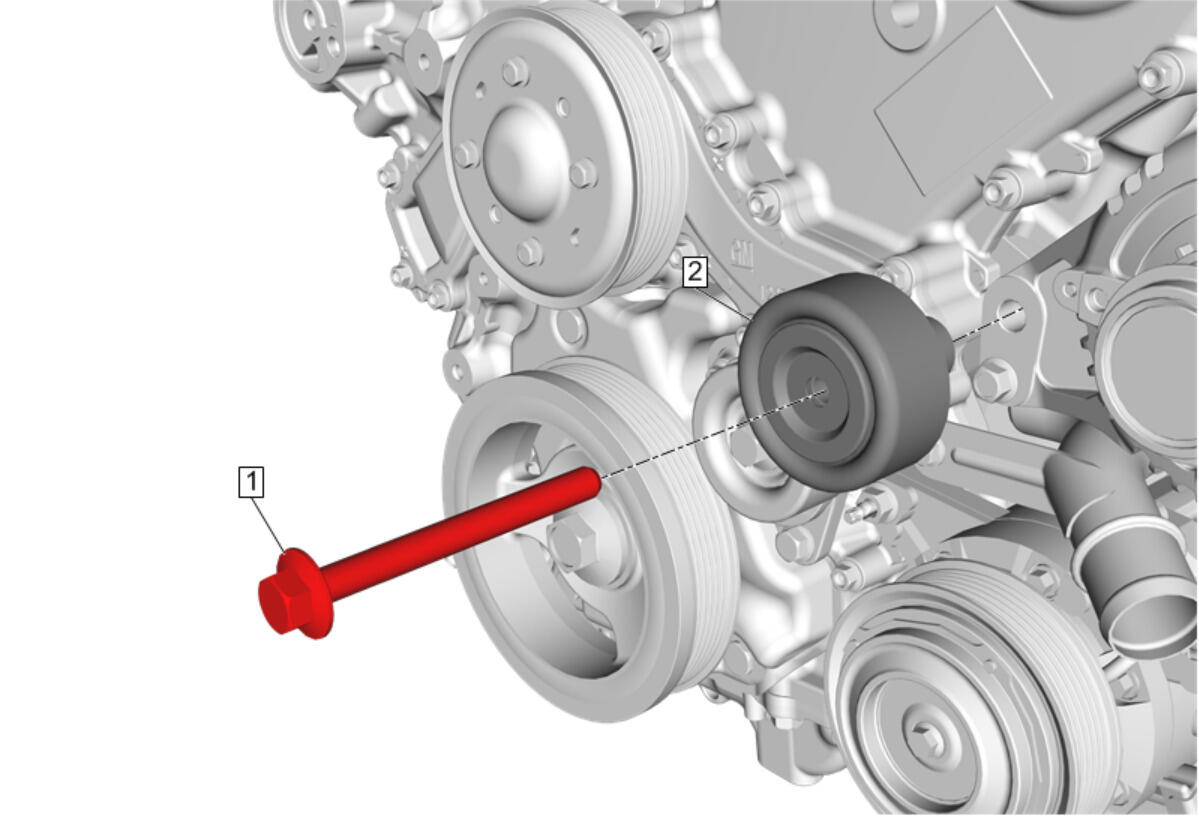

    9. Fig 5: Drive Belt Idler Pulley
    GM4295383Courtesy of GENERAL MOTORS COMPANY
  9. Drive Belt Idler Pulley (2) » Remove - Drive Belt Idler Pulley Replacement

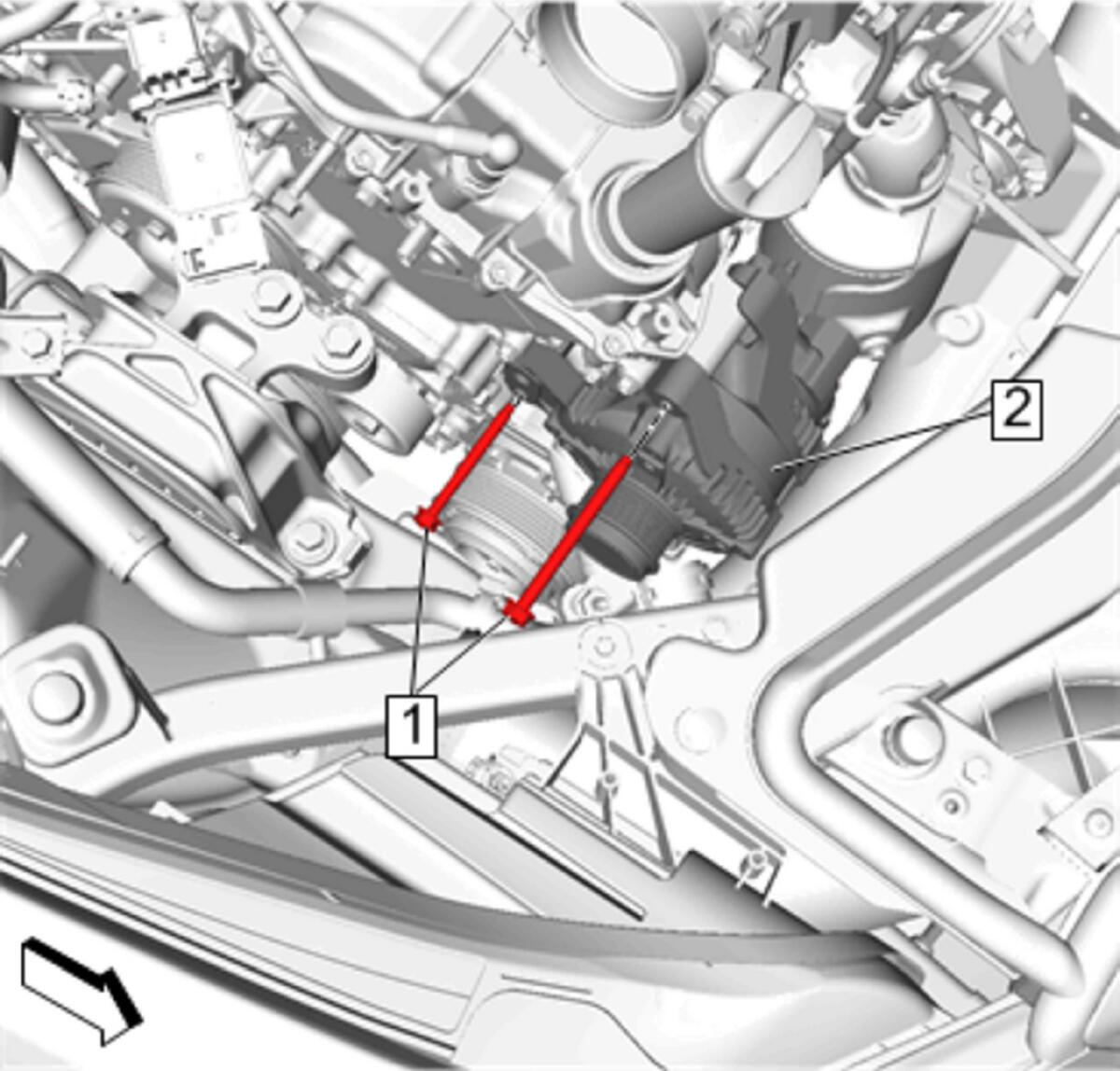

    10. Fig 6: Generator Bolt
    GM4310677Courtesy of GENERAL MOTORS COMPANY
  10. Generator Bolt (1) » Remove [2x]
  11. Generator (2) » Remove
