Multifunction Power Supply Converter Replacement

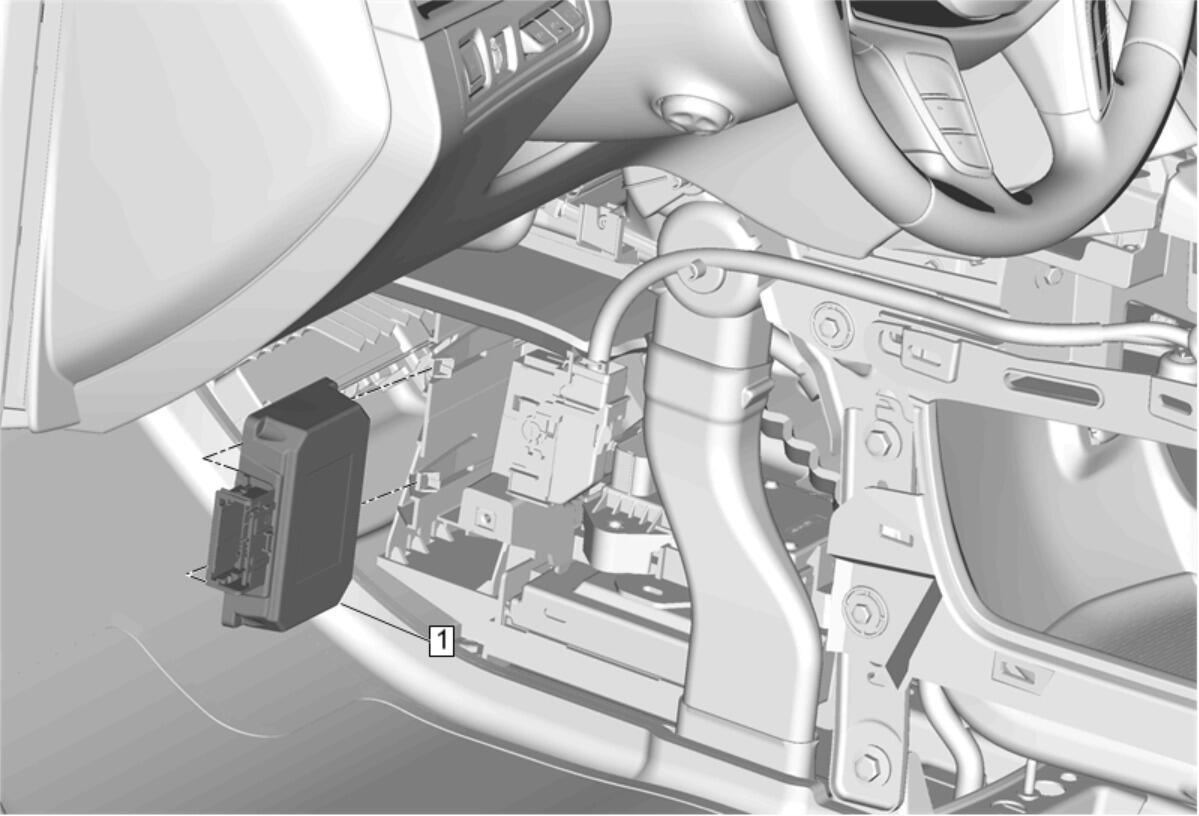

Fig 1: Multifunction Power Supply Converter
GM4282169Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Floor Console Extension Panel Replacement - Left Side
1 Multifunction Power Supply Converter

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tabs.
