Installation Procedure

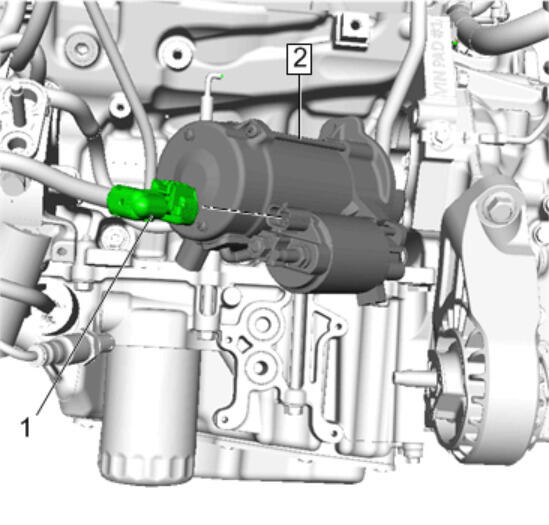

    Fig 1: Electrical Connector And Starter
    GM4287535Courtesy of GENERAL MOTORS COMPANY
  1. Connect Electrical Connector (1)
  2. Install the starter.(2)

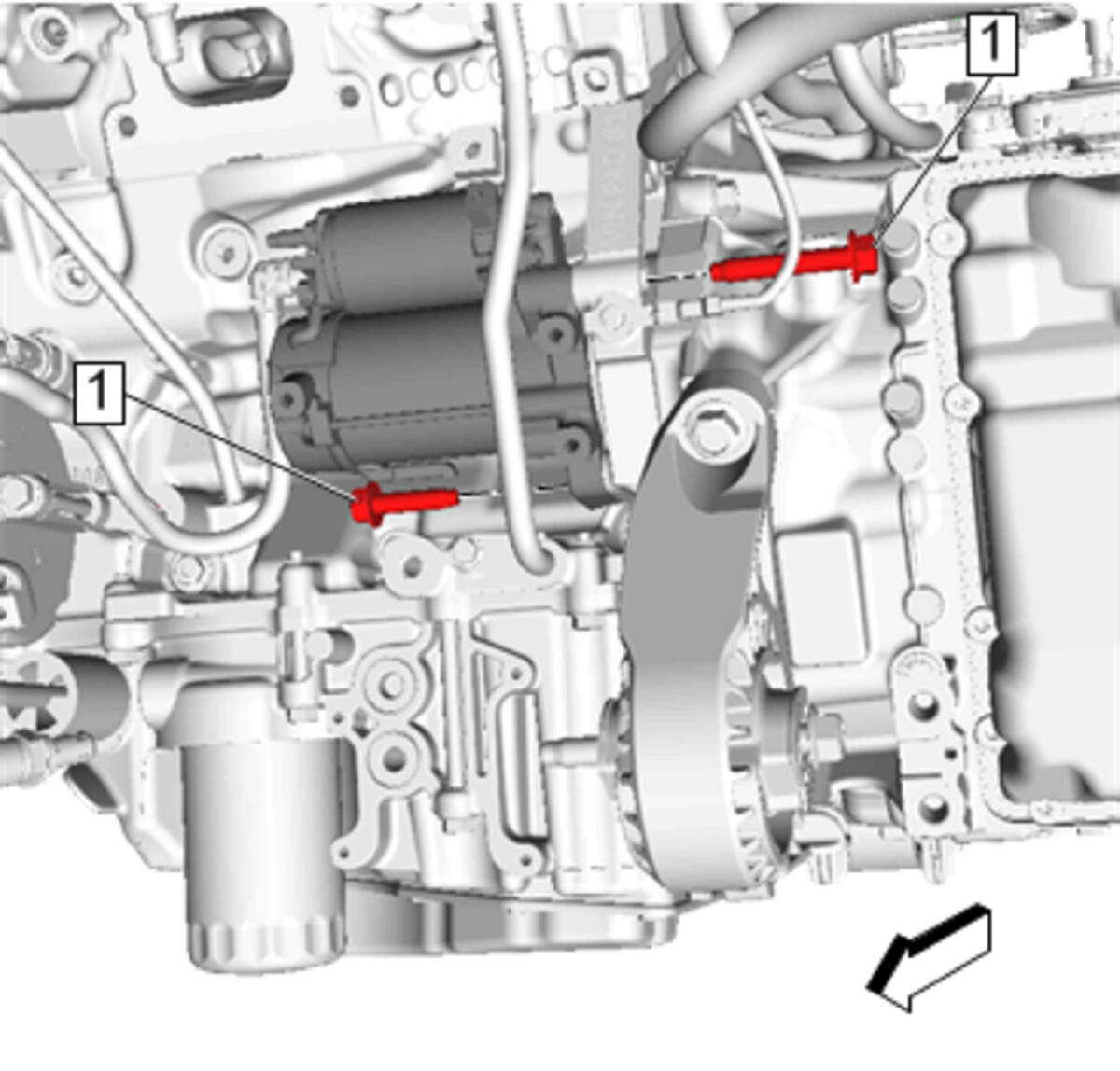

    3. Fig 2: Starter Mounting Bolt
    GM4287534Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution

  3. Install Starter Mounting Bolt (1) and tighten 58 N.m (43 lb ft)
    4. Fig 3: Starter Solenoid Cable Nut And Battery Positive Cable Conduit Fastener
    GM4286416Courtesy of GENERAL MOTORS COMPANY
  4. Install Battery Positive Cable (2)
  5. Install Starter Solenoid Cable Nut (1) and tighten 12.5 N.m (111 lb in)
  6. Install Battery Positive Cable Conduit Fastener (3) and tighten 9 N.m (80 lb in)

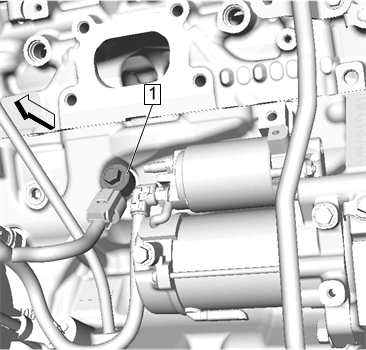

    7. Fig 4: Knock Sensor
    GM4287567Courtesy of GENERAL MOTORS COMPANY
  7. Install Knock Sensor- Bank 2 (1)Knock Sensor Replacement - Bank 2
    8. Fig 5: Starter Heat Shield
    GM4286549Courtesy of GENERAL MOTORS COMPANY
  8. Install Starter Heat Shield (2)Starter Shield Replacement
  9. Install Warm Up Three-Way Catalytic Converter- Bank 2 Warm Up Three-Way Catalytic Converter Replacement (Bank 2, LGX)
  10. Lower the vehicle.
  11. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
