Chassis Control Module Replacement

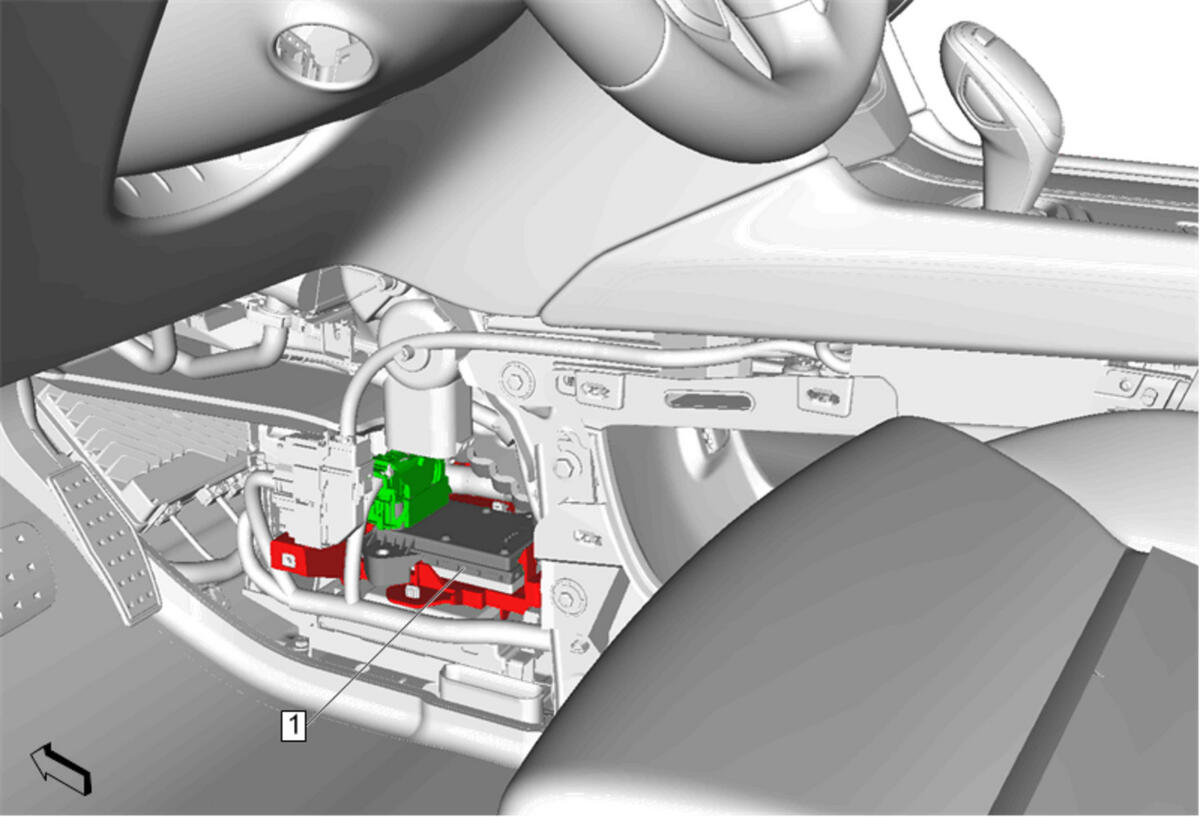

Fig 1: Chassis Control Module
GM4284953Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove Front Floor Console Extension Panel - Left Side. Refer to Front Floor Console Extension Panel Replacement - Left Side
  2. Remove Floor Rear Air Outlet Duct - Left Side. Refer to Floor Rear Air Outlet Duct Replacement - Left Side
1 Chassis Control Module

Procedure

  1. Disconnect the electrical connector.
  2. Remove the module from the module bracket by releasing the retaining tabs.
  3. If replacing, reprogram the module. Refer to Control Module References
