Engine Control Module Bracket Replacement

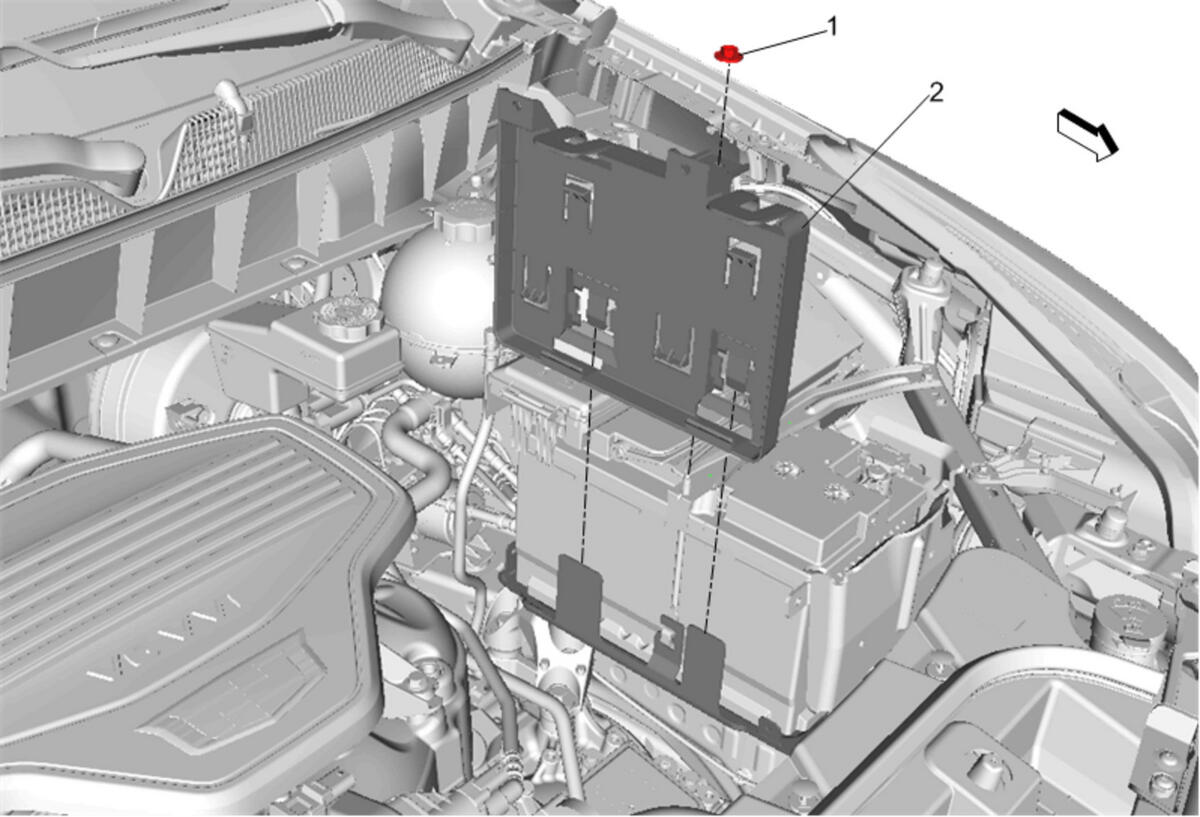

Fig 1: Engine Control Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Reposition away Radiator Surge Tank Inlet Hose @ Engine Control Module Bracket. Refer to Radiator Surge Tank Inlet Hose Replacement (LGX From Surge Tank To Radiator and Pipe)Radiator Surge Tank Inlet Hose Replacement (Radiator Surge Tank Outlet Pipe to Engine Coolant Air Bleed Pipe, LGX) Remove Engine Control Module. Refer to Engine Control Module Replacement
1	Engine Control Module Bracket Nut CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Engine Control Module Bracket

Callout

Component Name

Preliminary Procedures

Engine Control Module Bracket Nut

CAUTION:

Tighten
9 N.m (80 lb in)

Engine Control Module Bracket
