Engine Coolant Temperature Sensor Replacement

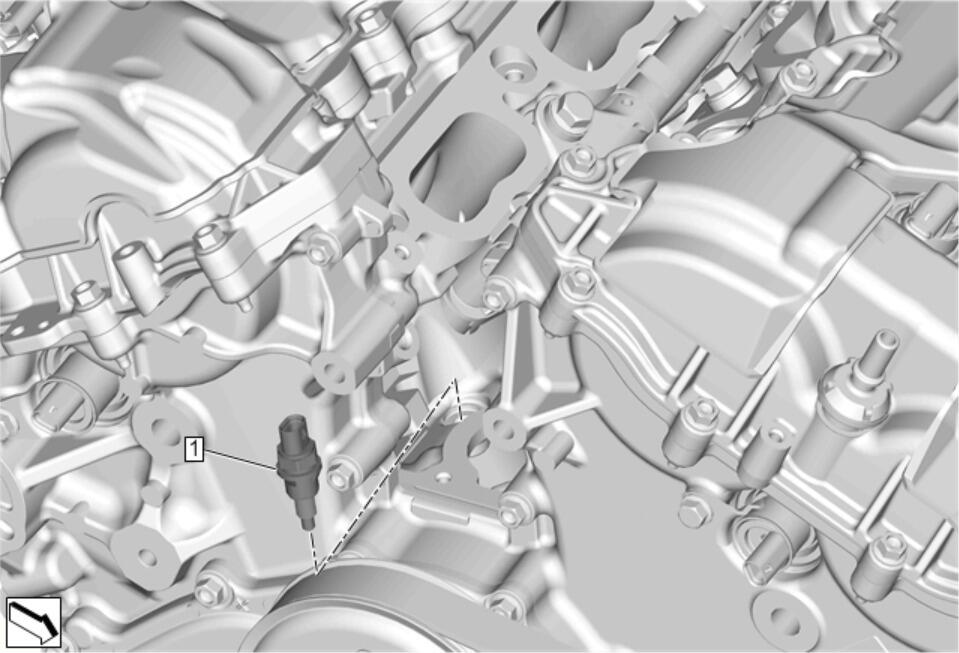

Fig 1: Engine Coolant Temperature Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Drain engine cooling system. Refer to Cooling System Draining and Filling (Static)Cooling System Draining and Filling (GE-47716) Remove Engine Coolant Thermostat Housing. Refer to Engine Coolant Thermostat Housing Replacement (LGX)
1	Engine Coolant Temperature Sensor CAUTION: Refer to Component Fastener Tightening Caution . Procedure Disconnect the electrical connector. Tighten 9 N.m (80 lb in)

Callout

Component Name

Preliminary Procedures

Engine Coolant Temperature Sensor

CAUTION:

Procedure
Disconnect the electrical connector.
Tighten
9 N.m (80 lb in)
