Rearview Camera (without UVH)

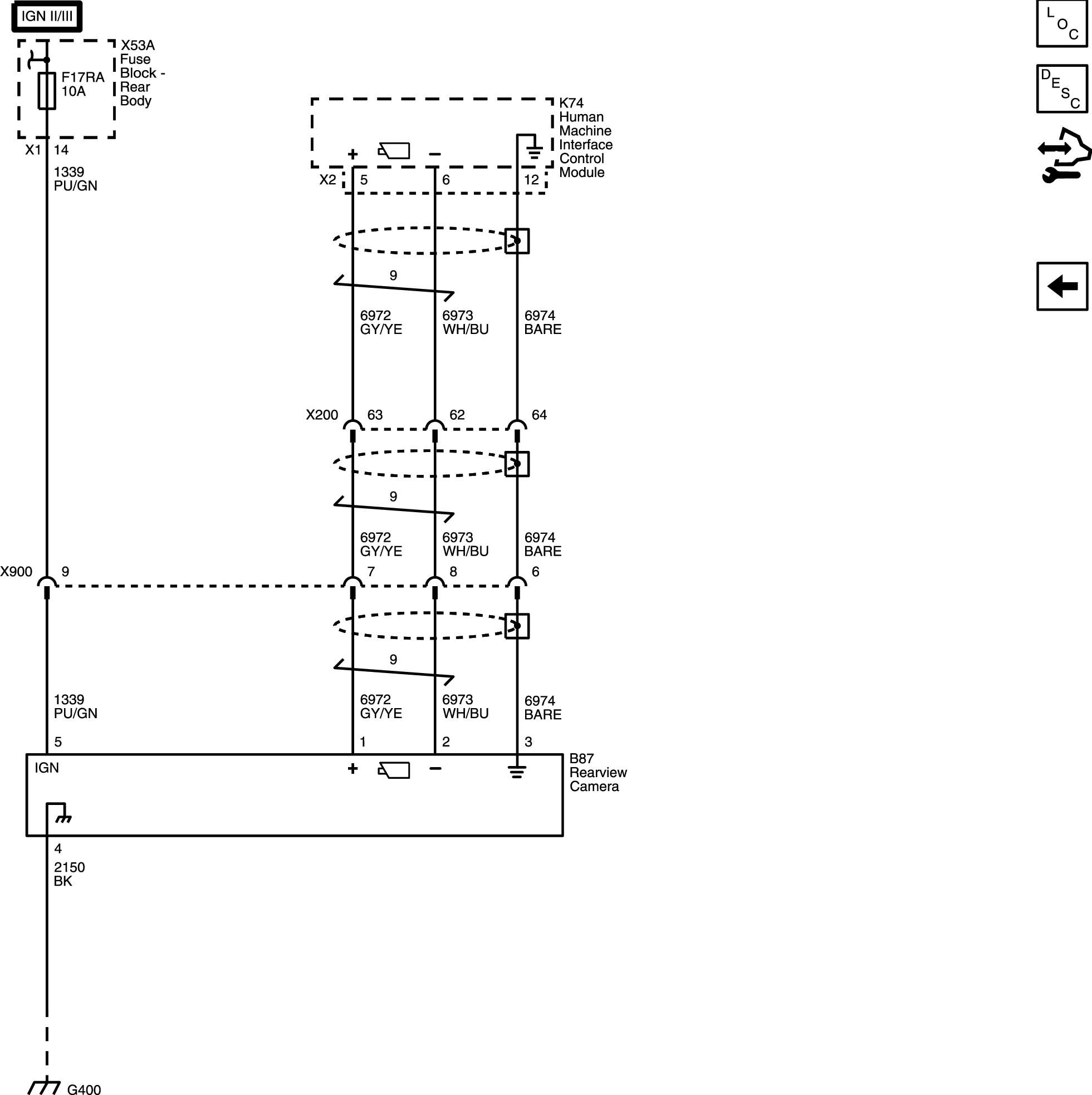

Fig 1: Rearview Camera (without UVH)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
