Battery Current Sensor Replacement

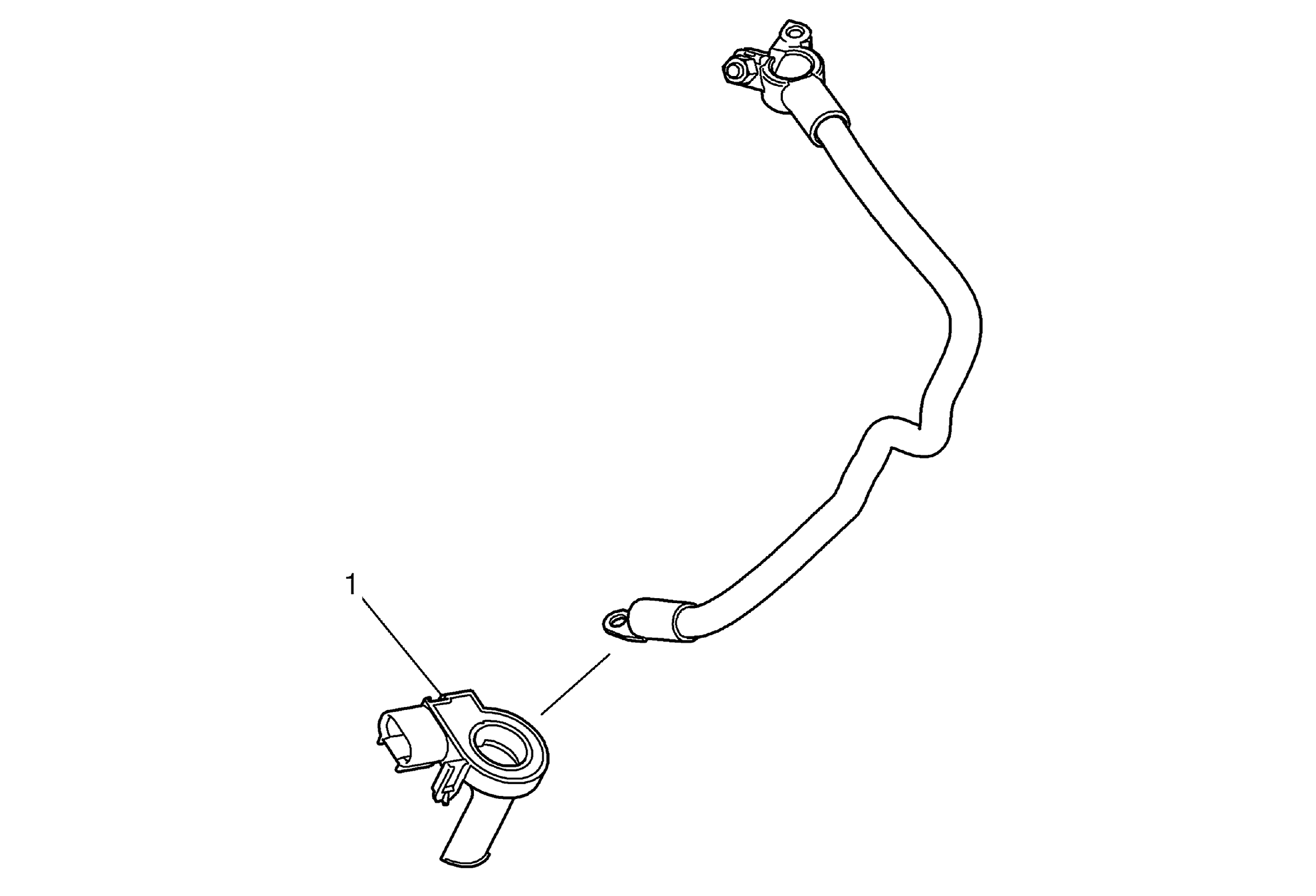

Fig 1: Battery Current Sensor

GM2019209

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Remove the battery negative cable fastener from the frame strut.

1

Battery Current Sensor

Procedure

Detach the electrical connector.
Ensure that the location measurement of the battery current sensor is recorded for reference during installation.
Cut and remove the tape securing the sensor to the negative battery cable.
Remove the sensor from the cable.
