Cellular System, Entertainment System, And Navigation System - Schematic Wiring Diagrams
>>
Schematic Wiring Diagrams
>>
Radio/Navigation System Wiring Schematics
>>
Navigation Control Module (CW1)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

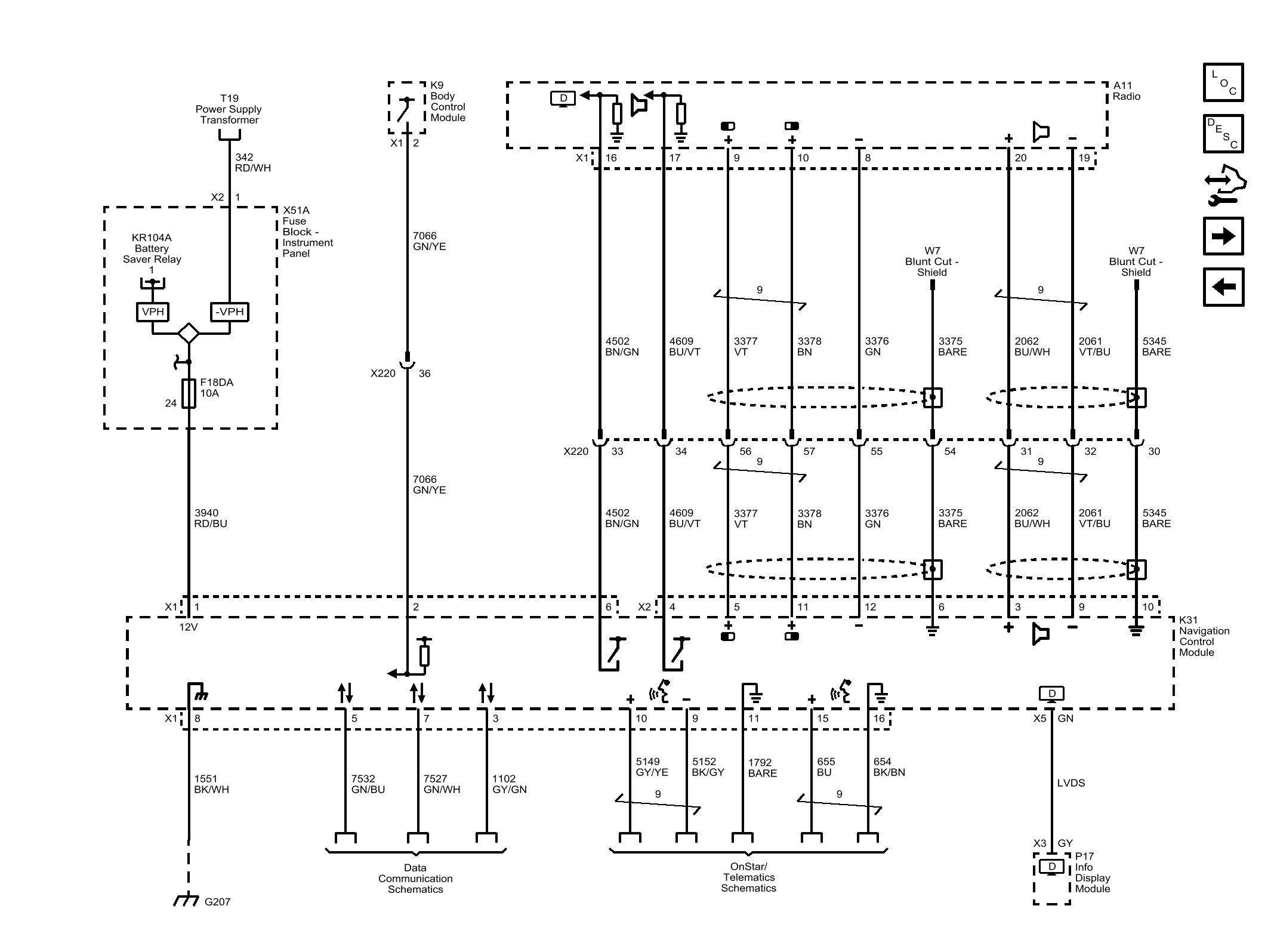

Navigation Control Module (CW1)
