Head-Up Display Replacement

Courtesy of GENERAL MOTORS COMPANY

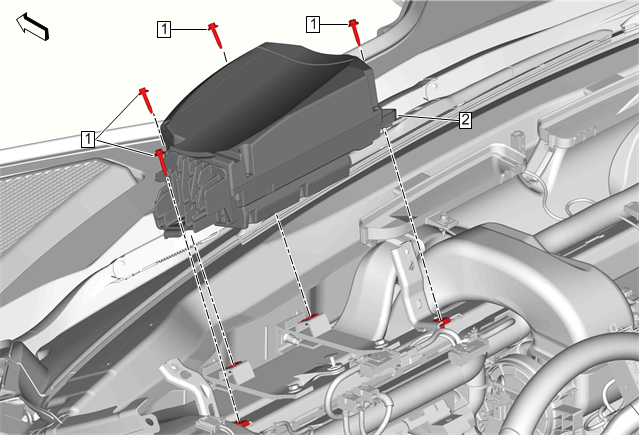

Callout	Component Name
Preliminary Procedure Instrument Panel Tie Bar Replacement
1	Head-Up Display Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Head-Up Display Procedure Disconnect the electrical connectors. Control Module References for programming and set up procedures, if required. NOTE: Ensure that each tab on the heads up display is properly seated in the mating hole on each bracket for proper alignment.

Callout

Component Name

Head-Up Display Bolt [4x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Head-Up Display

Procedure

NOTE:

Ensure that each tab on the heads up display is properly seated in the mating hole on each bracket for proper alignment.
