Automatic Transmission Case Components (M5N/M5U)

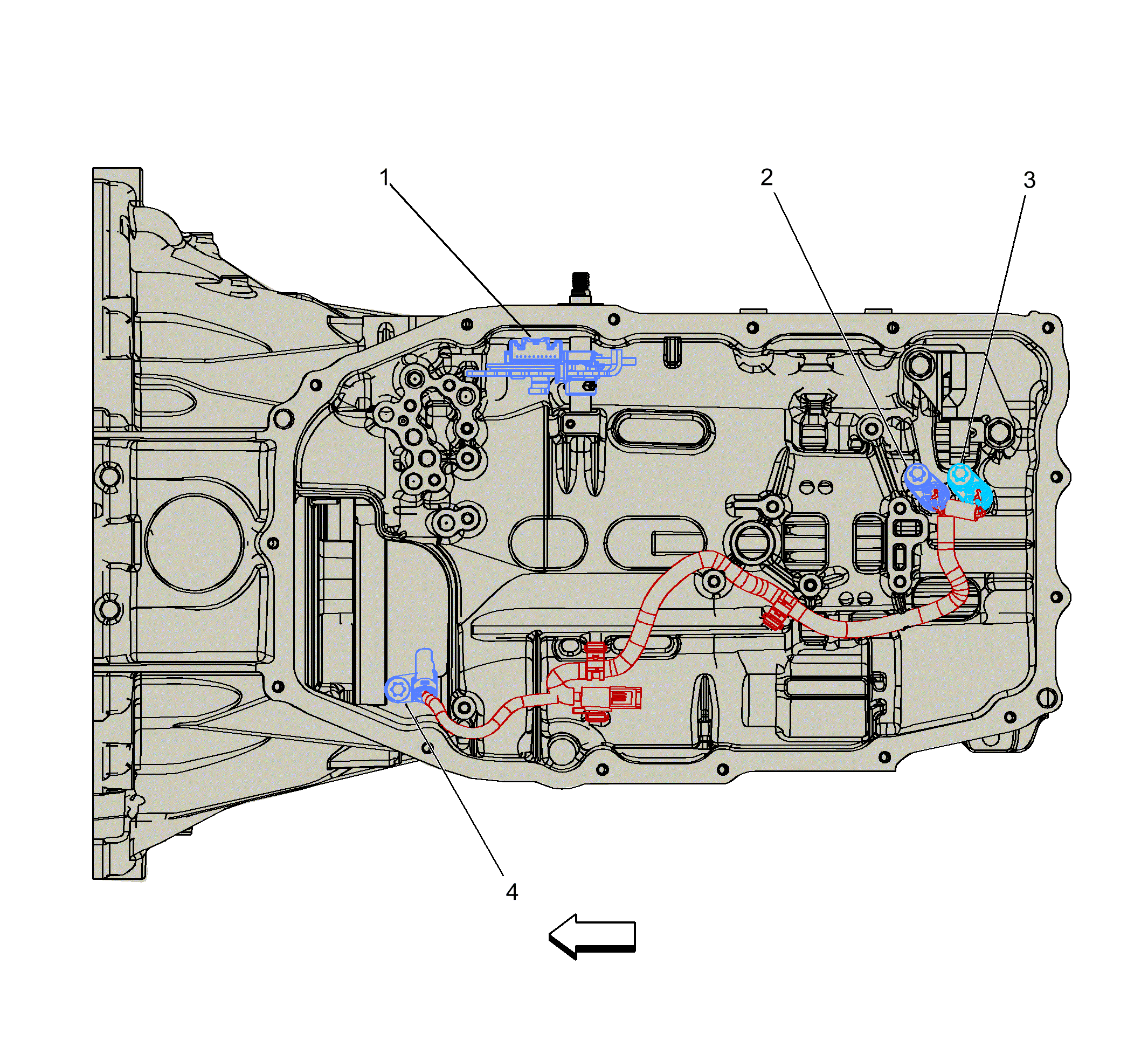

GM4298844Courtesy of GENERAL MOTORS COMPANY
Automatic Transmission Case Components (M5N/M5U)

Items
1. B15 Transmission Internal Mode Switch (M5N/M5U) B15 Transmission Internal Mode Switch (M5N/M5U)
2. B14D Transmission Intermediate Shaft Speed Sensor B14D Transmission Intermediate Shaft Speed Sensor (MGG)
3. B14A Transmission Output Shaft Speed Sensor B14A Transmission Output Shaft Speed Sensor (MGG)
4. B14C Transmission Input Shaft Speed Sensor
