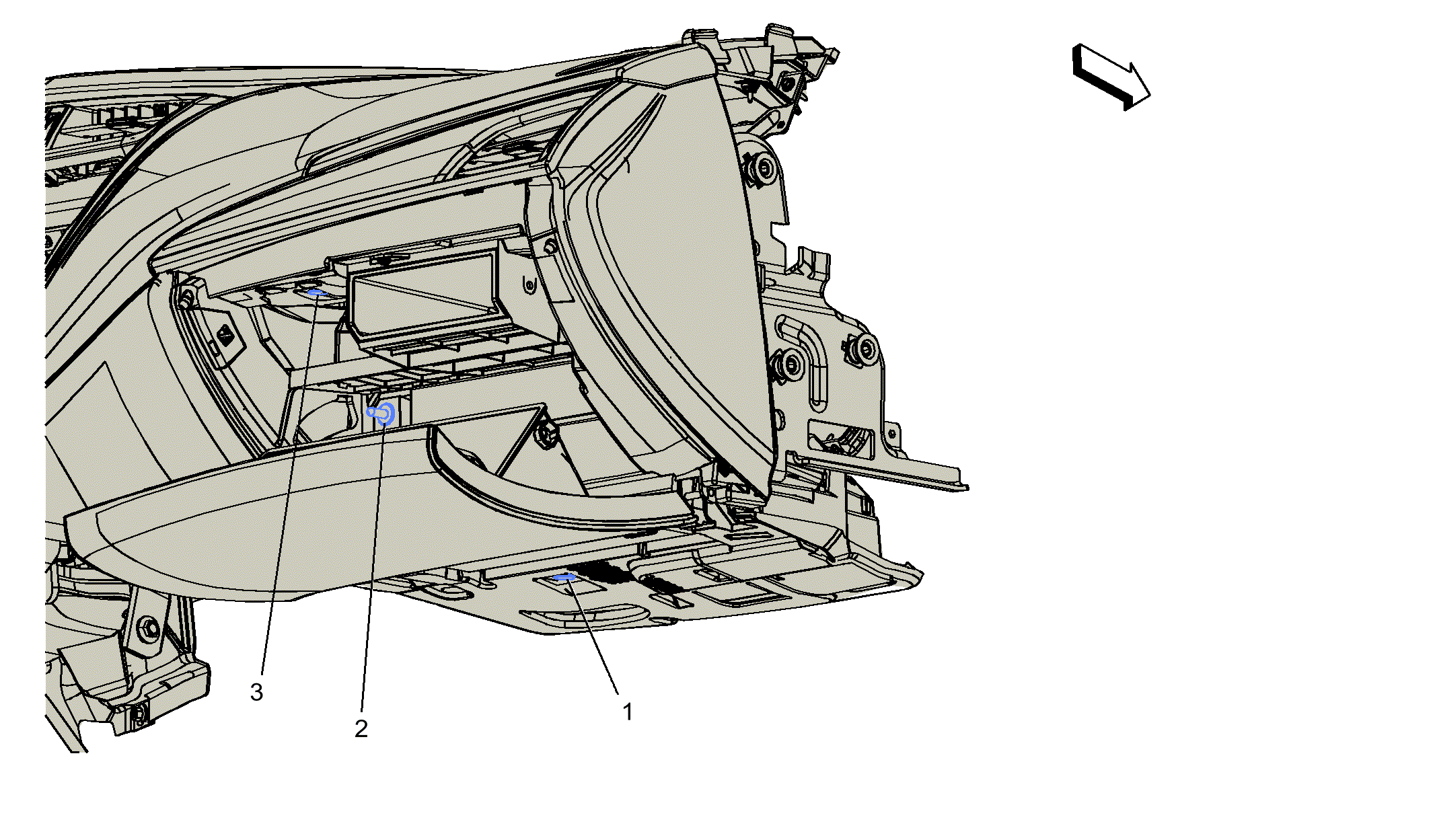

Passenger Side Glove Box Components

GM4515633Courtesy of GENERAL MOTORS COMPANY
Passenger Side Glove Box Components

Items
1. E27 Instrument Panel Compartment Lamp E27 Instrument Panel Compartment Lamp
2. S35 Instrument Panel Compartment Lamp Switch S35 Instrument Panel Compartment Lamp Switch
3. E1H Accent Lamp - Right Instrument Panel (TSP) E1H Accent Lamp - Right Instrument Panel (TSP)
